Turbo Billet Compressor Wheel For TOYOTA 3S-GTE CT20B (50/68 mm) 5+5 Blade

Product Information

P/N.

405-99012-629

Item Name

Turbo Billet Compressor Wheel For TOYOTA 3S-GTE CT20B (50/68 mm) 5+5 Blade

Application

Rotation: Forward

Fit OE compressor housing : No. it is custom wheel and needs to machine cover to fit this wheel.

Trailing angle : 60 Degree

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

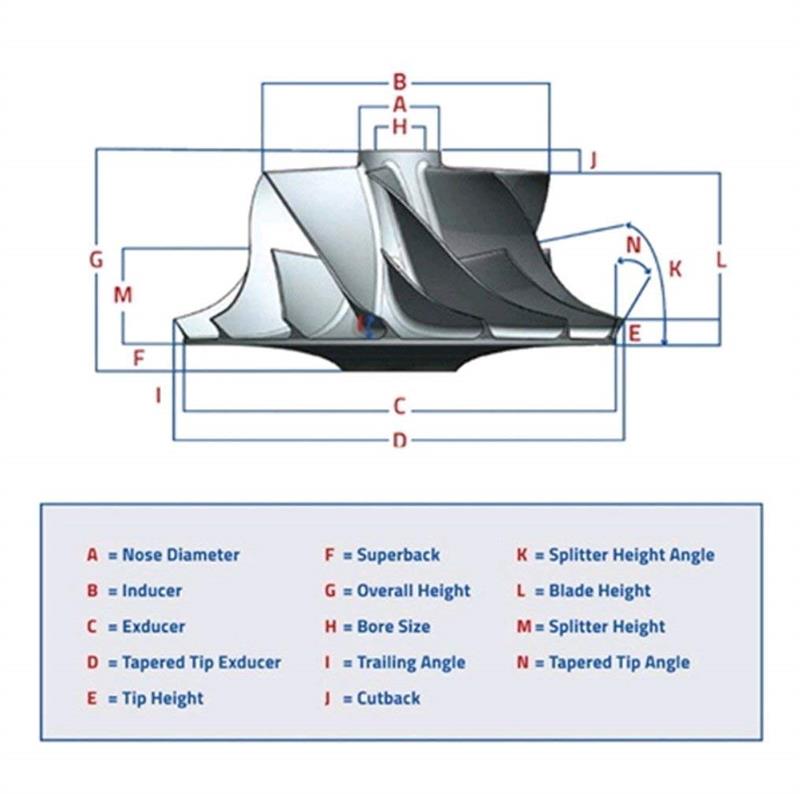

Wheel Size

Nose OD: 12.14 mm

Inducer Dia.:  50.00 mm

Exducer Dia. : 68.00 mm

Trim: 55

Extend Tapered Tip Exducer dia : 72.67mm

Tip Height: 5.04 mm

Super Back Height: 2.00 mm

Overall Height : 29.42 mm

Bore: 5.70 mm / Through (Not for CT26)

Blade : 5+5

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.
