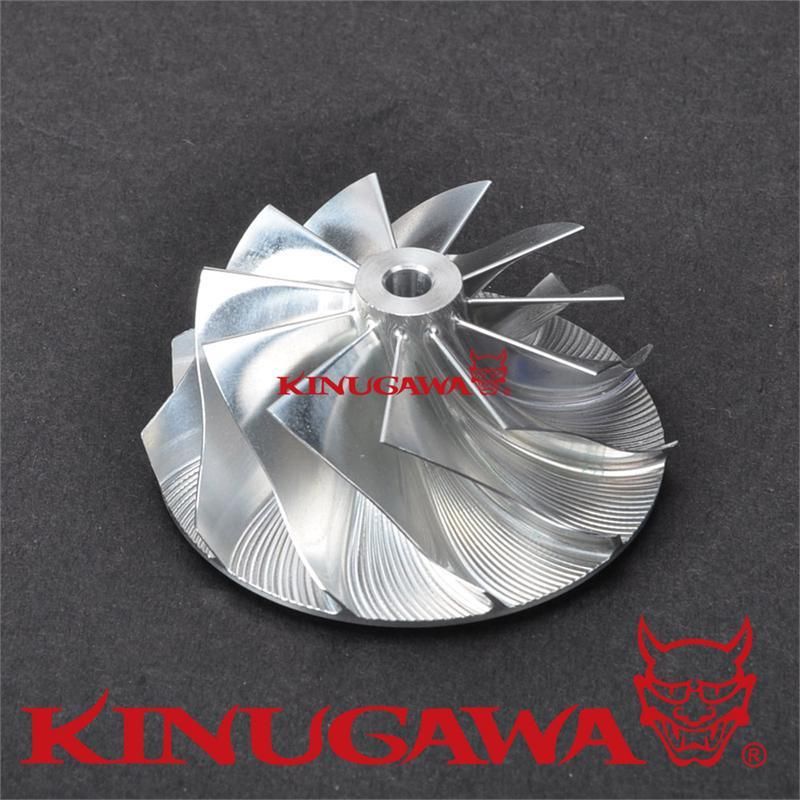

Billet Turbo Compressor Wheel Garrett GT2056S (43/56mm) Rexton 11+0 Blade 436563

Product Information

P/N.

405-99012-208

Item Name

Kinugawa Garrett GT15~GT25 GT2056S Turbo Billet Compressor Wheel 43 / 56.03 mm / 11+0 Blade w/ Extend Tip (Fit Ssangyong Rexton)

Application

Replace wheel number : 436563-0009 (High Flow Type)

Fit Turbo # : 742289 / A6650901580 (Rexton 2.7L XDi)

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 43.00 mm (Stock 41.54mm, Can not fit directly without cover machining)

Exducer Dia. : 56.03 mm

Extend Tappered Tip Exducer dia : 58.26mm

Tip Height: 4.43 mm

Super Back Height: 3.68mm

Bore: 5.08

Blade : 11+0

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
