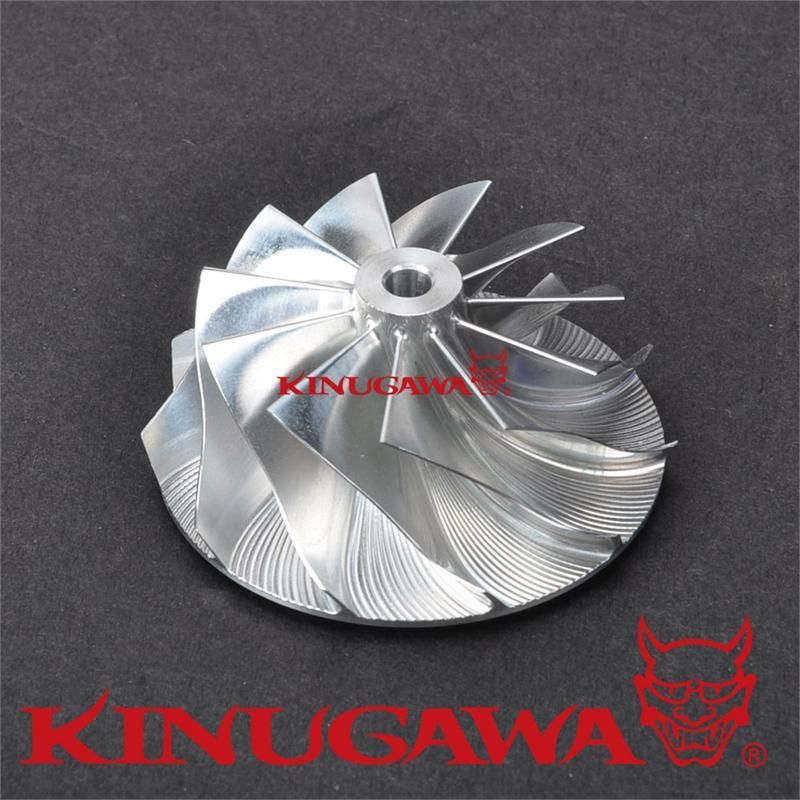

Billet Turbo Compressor Wheel Garrett GT2860RS (47.1/60.1) Trim 62 / 11+0 Blade

Product Information

P/N.

405-03204-009 (2512)

Item Name

Kinugawa Garrett GT2860RS / GT2860R Ball Bearing Turbo Billet Compressor Wheel 47.10 / 60.13 mm /Trim 62 / 11+0 Blade (Performance Use)

Application

Replace  number :

Fit CHRA # : 446179-0066

Fit Turbo # :739548-0010, 739548-0014, 739548-0009, 739548-0001, 739548-0005

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 47.10 mm

Exducer Dia. : 60.13 mm

Extend Tapered Tip Exducer dia : 63.11 mm

Tip Height: 5.60 mm

Super Back Height: 2.30 mm

Bore: 5.99 mm

Blade : 11+0

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
