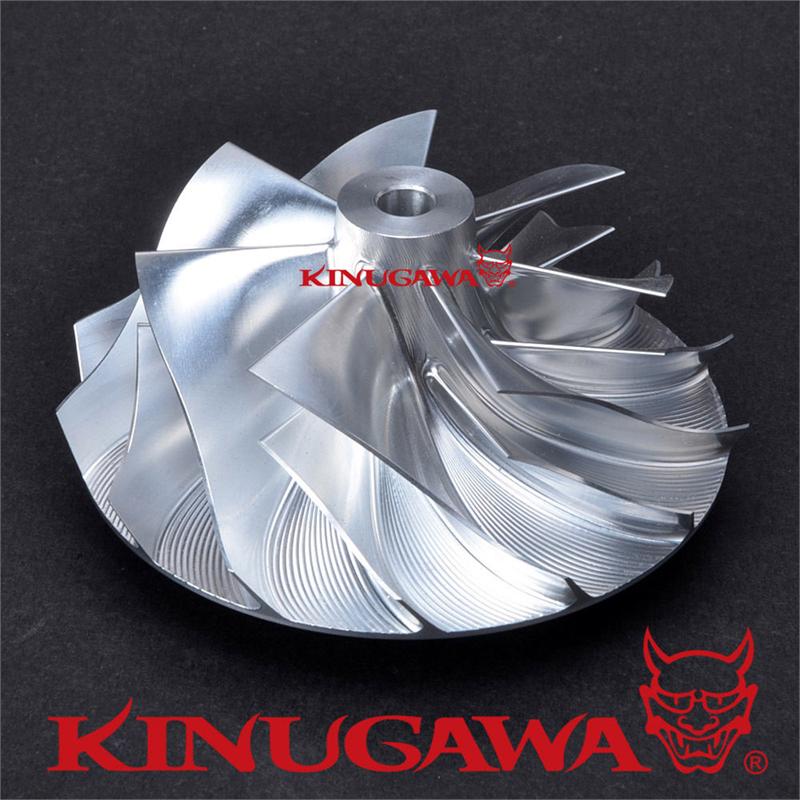

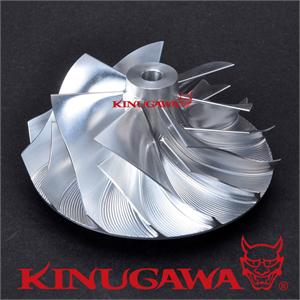

Billet Turbo Compressor Wheel Garrett GT3788R GT4088R Roller (63.5/88mm) 7+7 bla

Product Information

P/N.

405-99013-714

Item Name

Kinugawa Garrett GT3788R GT4088R Ball BearingTurbo Billet Compressor Wheel 63.50/88.25 mm, Trim 52 with Extend Tip, 7+7 Blade

Application

Replace wheel number: 451583-0004

Fit CHRA: 751451-0012 (GT3788R), 751450-0009 (GT4088R)

Fit Turbo # : 772719-0001, 772719-0002, 772719-0003, 751470-0001, 751470-0002, 751470-0003, 751470-0004

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 63.50 mm (High Flow Type)

Exducer Dia. : 88.25 mm (High Flow Type)

Trim: 52 (High Flow Type)

Extend Tapered Tip Exducer dia. : 92.27mm

Tip Height: 7.18 mm

Super Back Height: 5.30 mm

Bore: 7.48 mm

Blade : 7+7

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
