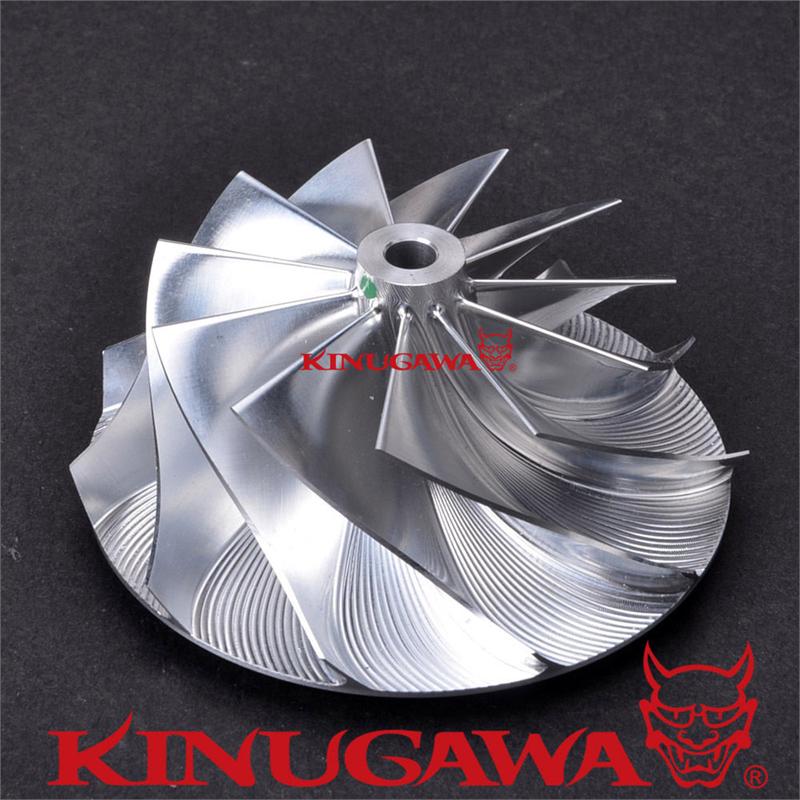

Billet Turbo Compressor Wheel Garrett GT3888VA (63.4/84.3mm) GM V8 /11+0 Blade

Product Information

P/N.

405-99013-708

Item Name

Kinugawa Garrett GT3888VA / GT3788 ISUZU GM Chevrolet Express 3500 Turbo Billet Compressor Wheel 63.40/88.25 mm, Trim 52 / 11+0 Blade

Application

Replace wheel number: 759622-0002

Fit CHRA:

Fit Turbo # :  736554-0011, 736554-5011S, 8-97387-8962 (GM Chevrolet Express 3500, LLY Duramax V8 6599cc 305HP 04~06)

Isuzu # 8973878962, 8973868233, 8973525645, 8973525640, 97387896, 97376376, 97352564

Product

Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 63.40 mm

Exducer Dia. : 88.25 mm

Trim: 52

Extend Tapered Tip Exducer dia : 91.78 mm

Tip Height: 6.43 mm

Super Back Height: 5.30 mm

Bore: 7.48 mm

Blade : 11+0

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

- We can customize billet compressor wheel, Please contact us if you need it.

- We can combine shipping for all items and will send invoice when we receive all of your order.
