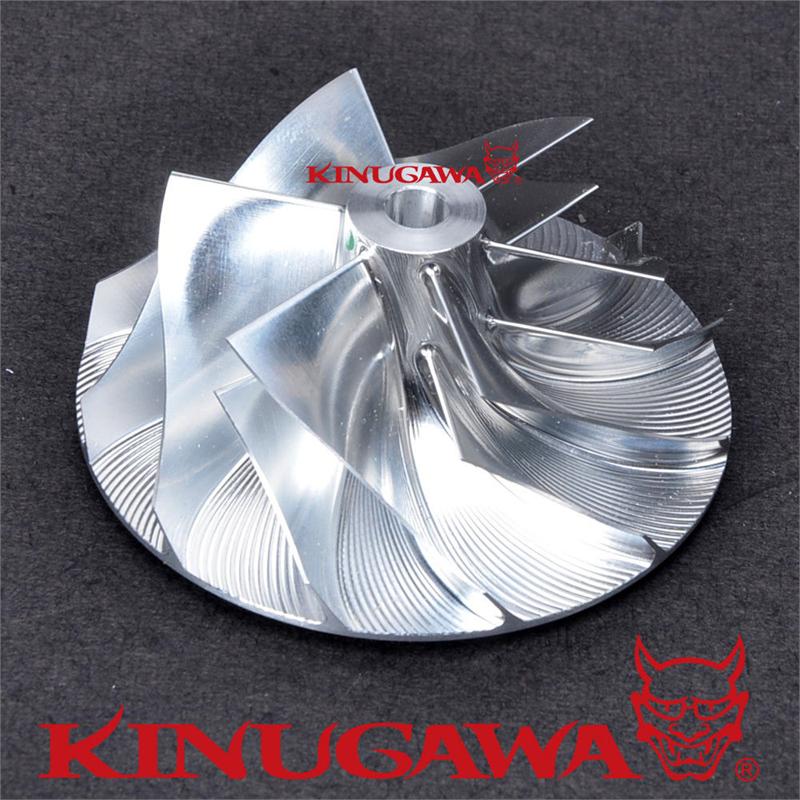

Billet Turbo Compressor Wheel Garrett T04B 409179-0023 Trim 55 (51.6/70 mm) 6+6

Product Information

P/N.

405-99014-B04

Item Name

Kinugawa Garrett T04B  409179-0023 Turbo Billet Compressor Wheel 51.65 / 69.96 mm, Trim 55 / 6+6 Blade

Application

Replace wheel number: 409179-0023

Fit CHRA:

Fit Turbo # : 409761-0002, 465078-0007, 465114-0004, 465118-0001, 465218-0002, 465226-0004, 465242-0008, 465254-0001, 465310-0002, 465360-0002

Product Situation

Brand New

Maximum Boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 51.65 mm

Exducer Dia. : 69.96 mm

Trim: 55

Extend Tapered Tip Exducer dia : No Extend Tip

Tip Height: 6.44 mm

Super Back Height: 1.68 mm

Bore: 6.35 mm

Blade : 6+6

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.
