Billet Turbo Compressor Wheel Garrett T04B 409179-0024 Trim 60 (54.1/70 mm) 6+6

Product Information

P/N.

405-99014-B06

Item Name

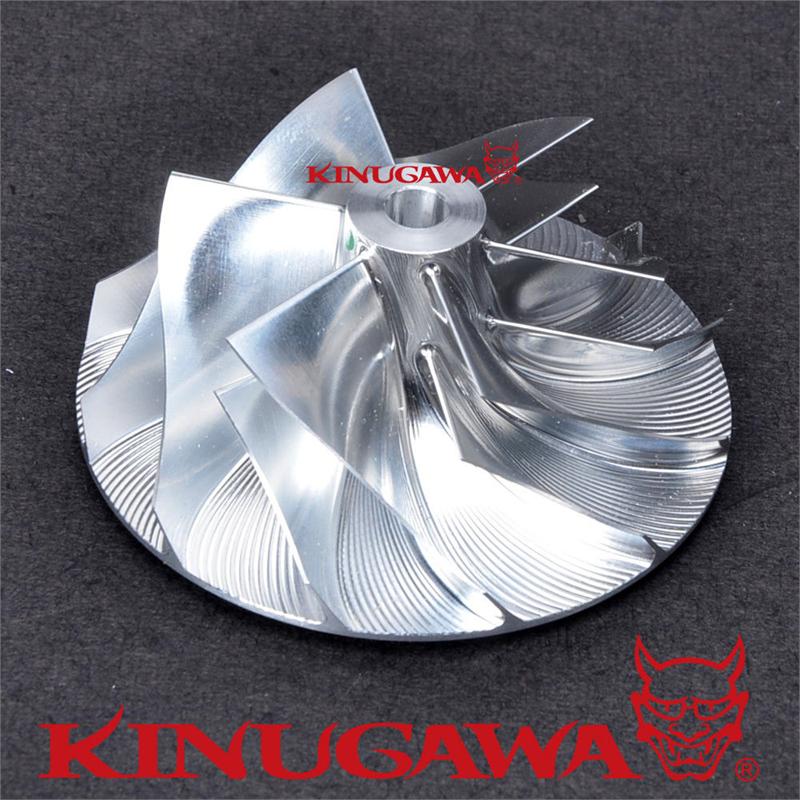

Kinugawa Garrett T04B  409179-0024 Turbo Billet Compressor Wheel 54.14 / 69.96 mm, Trim 60 / 6+6 Blade

Application

Replace wheel number: 409179-0024

Fit CHRA:

Fit Turbo # : 409640-0001 (T04B19), 409770-0001 (T04B25), 452018-0002 (TB4140 Benz), 465070-0001 (T04B34 DAF 520)

Product Situation

Brand New

Maximum Boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 54.14 mm

Exducer Dia. : 69.96 mm

Trim: 60

Extend Tapered Tip Exducer dia : No Extend Tip

Tip Height: 6.70 mm

Super Back Height: 1.68 mm

Bore: 6.35 mm

Blade : 6+6

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
