Billet Turbo Compressor Wheel Garrett T04B 409179-0026 Trim 39 (43.7/70) 6+6

Product Information

P/N.

405-99014-B01

Item Name

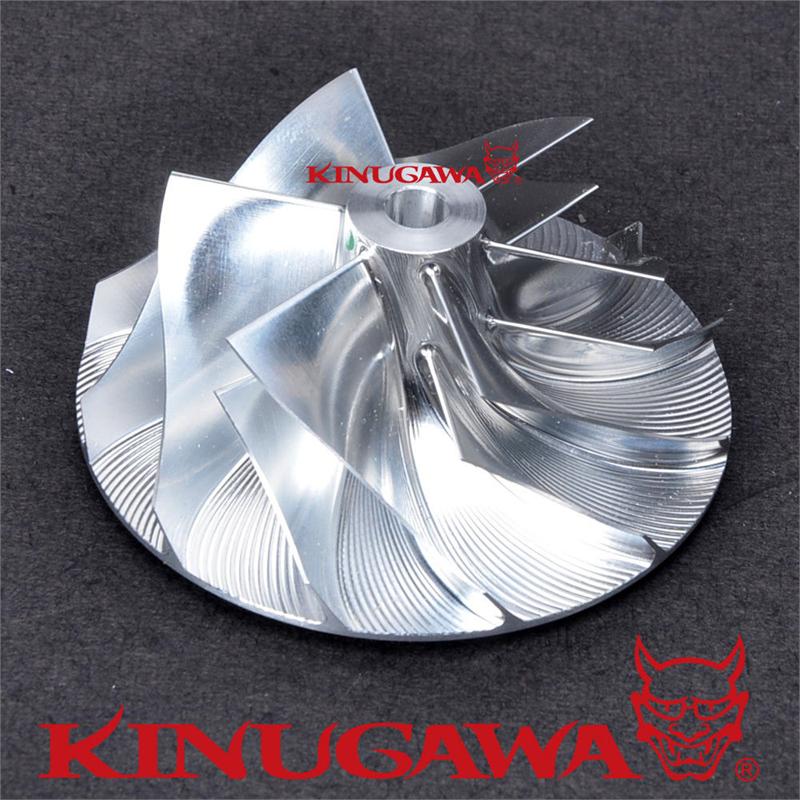

Kinugawa Garrett T04B  409179-0026 Turbo Billet Compressor Wheel 43.72 / 69.96 mm, Trim 39 / 6+6 Blade

Application

Replace wheel number: 409179-0026

Fit CHRA:

Fit Turbo # : 409040-0017 (Allis Chalmers / Deutz AllisT04B80) , 409940-0001 (John Deere T04B32), 465044-0017 (Komatsu S4D105 T04B59)

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 43.72 mm

Exducer Dia. : 69.96 mm

Trim: 39

Extend Tapered Tip Exducer dia : No Extend Tip

Tip Height: 5.29 mm

Super Back Height: 1.68 mm

Bore: 6.35

Blade : 6+6

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.
