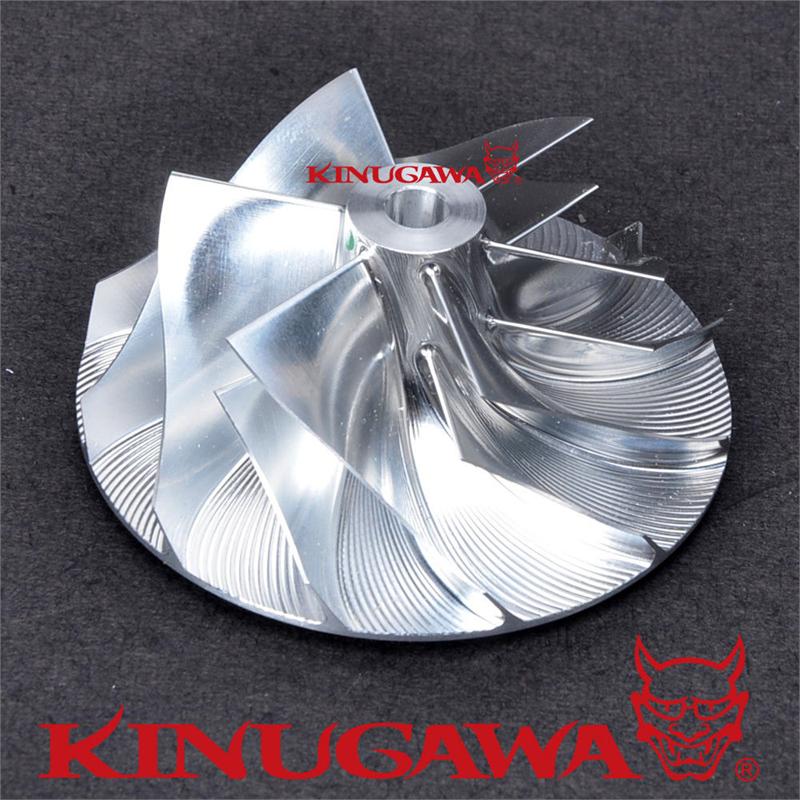

Billet Turbo Compressor Wheel Garrett T04B 409826-0012 Trim 57 (53/70 mm) 6+6

Product Information

P/N.

405-99014-B05

Item Name

Kinugawa Garrett T04B  409826-0012 Turbo Billet Compressor Wheel 52.98 / 69.96 mm, Trim 57 / 6+6 Blade

Application

Replace wheel number: 409179-0012

Fit CHRA:

Fit Turbo # : 465044-0019 (T04B59 / Komatsu S6D110 S6D105)

Product Situation

Brand New

Maximum Boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 52.98 mm

Exducer Dia. : 69.96 mm

Trim: 57

Extend Tapered Tip Exducer dia : No Extend Tip

Tip Height: 6.44 mm

Super Back Height: 1.68 mm

Bore: 6.35 mm

Blade : 6+6

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.
