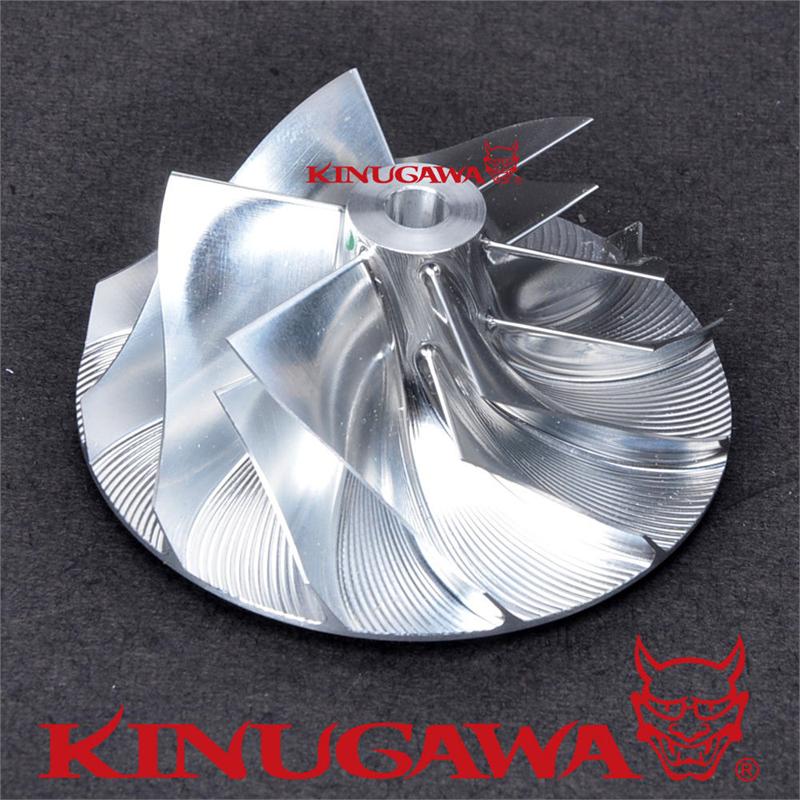

Billet Turbo Compressor Wheel Garrett T04E 442293-0006 Trim 40 (47.3 / 75mm) 6+6

Product Information

P/N.

405-99014-E01

Item Name

Kinugawa Garrett T04E 442293-0006 Turbo Billet Compressor Wheel 47.28 / 74.99 mm, Trim 40 / 6+6 Blade

Application

Replace wheel number: 442293-0006

Fit CHRA:

Fit Turbo # : 452024-0001 (TBP2401), 452056-0001 (TBP406), 452069-0001 (TBP411), 452071-0002 (TBP412) , 465225-0001 (T04E17), 465413-0002 (T04E46), 465427-0001 (TBP409)

Product Situation

Brand New

Maximum Boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 47.28 mm

Exducer Dia. : 74.99 mm

Trim: 40

Extend Tapered Tip Exducer dia : No Extend Tip

Tip Height: 5.28 mm

Super Back Height: 4.96 mm

Bore: 6.35 mm

Blade : 6+6

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
