Billet Turbo Compressor Wheel Garrett T04E 442293-0009 Trim 42 (48.6 / 75mm) 6+6

Product Information

P/N.

405-99014-E02

Item Name

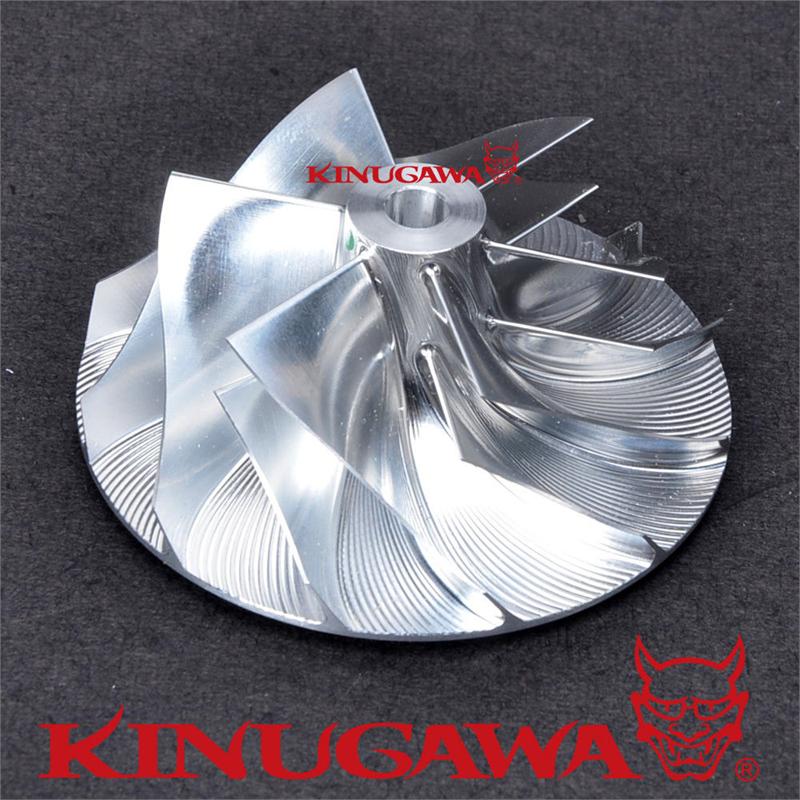

Kinugawa Garrett T04E 442293-0009 Turbo Billet Compressor Wheel 48.56 / 74.99 mm, Trim 42 / 6+6 Blade

Application

Replace wheel number: 442293-0009

Fit CHRA:

Fit Turbo # : 452003-0001, 452072-0002, 465283-0001, 465443-0003, 465523-0001, 465633-0005, 466159-0002, 466588-0001

Product Situation

Brand New

Maximum Boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 48.56 mm

Exducer Dia. : 74.99 mm

Trim: 42

Extend Tapered Tip Exducer dia : No Extend Tip

Tip Height: 5.73 mm

Super Back Height: 4.96 mm

Bore: 6.35 mm

Blade : 6+6

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.
