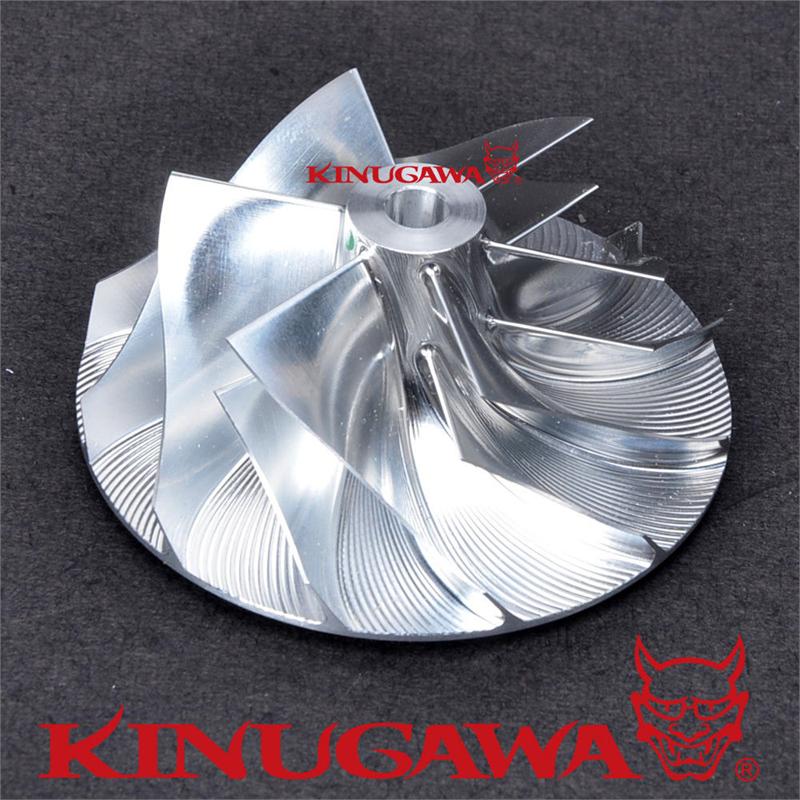

Billet Turbo Compressor Wheel Garrett T04E 442476-0014 Trim 57 (56.5 / 75mm) 6+6

Product Information

P/N.

405-99014-E06

Item Name

Kinugawa Garrett T04E 442476-0014 Turbo Billet Compressor Wheel 56.48 / 74.99 mm, Trim 57 / 6+6 Blade

Application

Replace wheel number: 442476-0014

Fit CHRA:

Fit Turbo # : 452092-0001, 465225-0009, 465355-0003, 465629-0001, 465633-0001, 465637-0001, 465653-0001, 465780-0001, 465907-0001, 466229-0001, 466290-0003

Product

Situation

Brand New

Maximum Boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 56.48 mm

Exducer Dia. : 74.99 mm

Trim: 57

Extend Tapered Tip Exducer dia : No Extend Tip

Tip Height: 6.80 mm

Super Back Height: 4.96 mm

Bore: 6.35 mm

Blade : 6+6

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

- We can customize billet compressor wheel, Please contact us if you need it.

- We can combine shipping for all items and will send invoice when we receive all of your order.
