Billet Turbo Compressor Wheel Garrett T91 Trim 51 (91.1/127mm) 6+6 / 509257-1

Product Information

P/N.

405-99019-101

Item Name

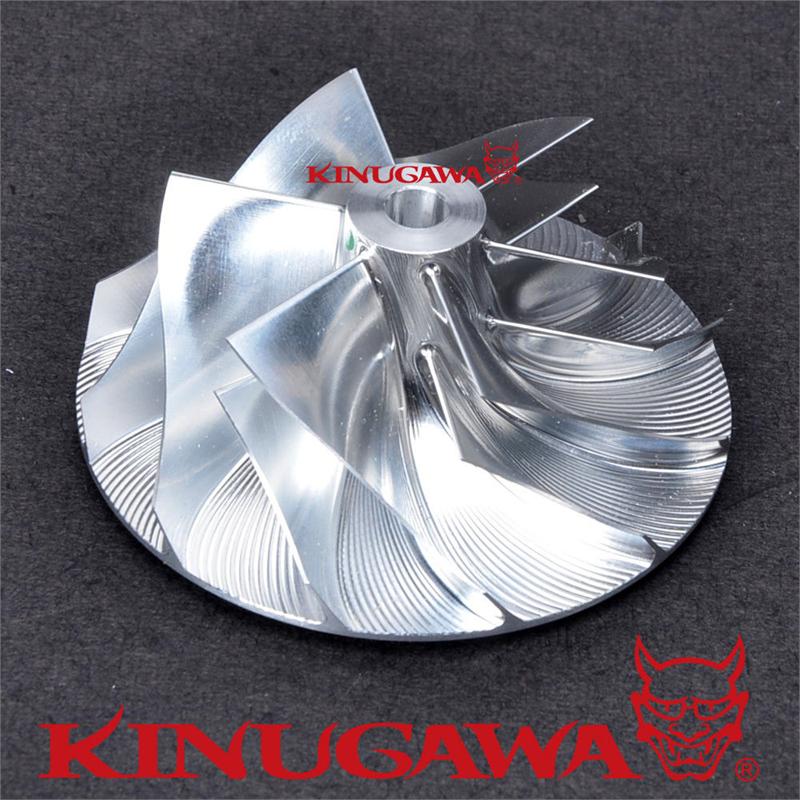

Kinugawa Garrett T91 Turbo Billet Compressor Wheel 91.11 / 127 mm Trim 51 / 6+6 Blade (Garrett 409257-1)

Application

Replace wheel number: 509257-1

Fit CHRA: ???

Fit Turbo # : 465330, 465456, 465796, 466035, 466050, 466056

Product

Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 91.11 mm

Exducer Dia. : 127.01 mm

Trim: 51.4

Extend Tapered Tip Exducer dia : No Extend

Tip Height: 11.60 mm

Super Back Height: 9.62 mm

Bore: 11.11 mm

Blade : 6+6

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
