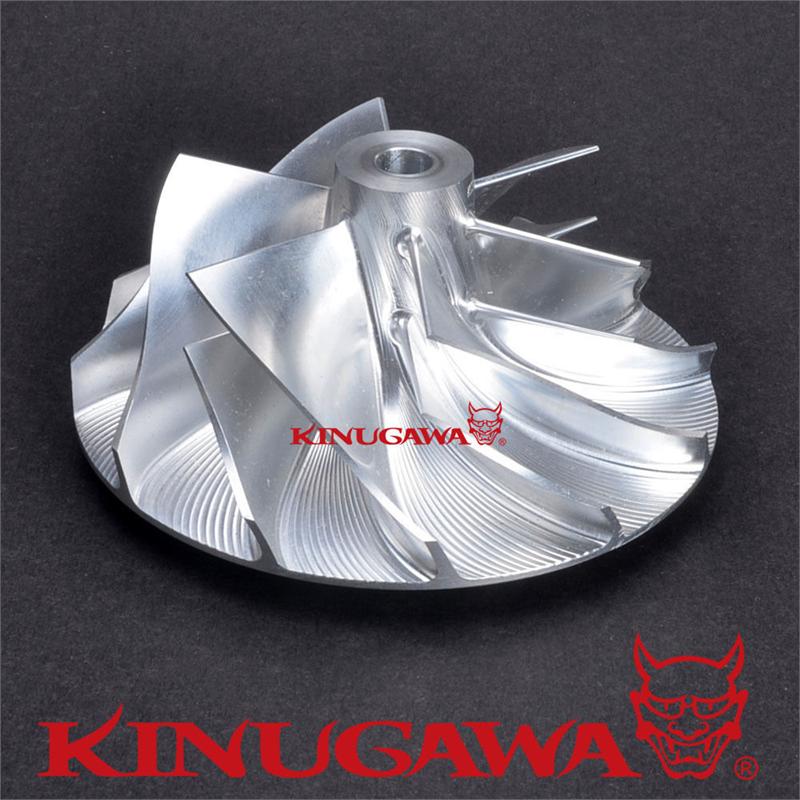

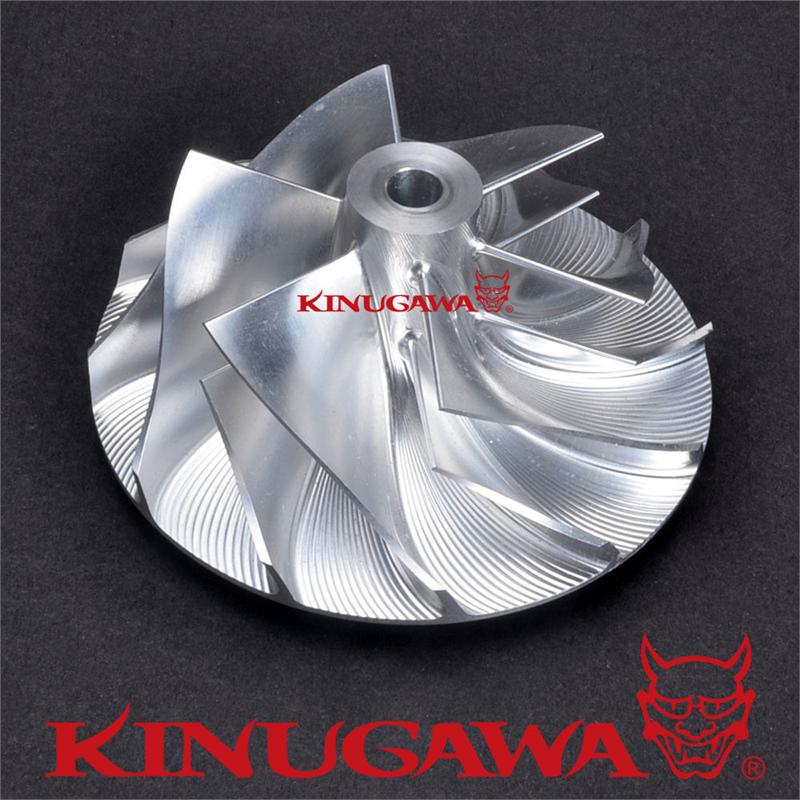

Kinugawa Billet Turbo Compressor Wheel Garrett T51R (74.7 / 102.5 mm) 6+6 Blade

Product Information

P/N.

405-99015-1R9

Item Name

Kinugawa Garrett HKS T51R KAI Turbo Billet Compressor Wheel

Application

Fit Turbo # : HKS T51R KAI, 1401-RA146

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

-　Inducer Dia.: 74.7 mm

-　Exducer Dia. : 102.5 mm

-　Extend Tapered Tip Exducer diameter : 108.52mm

-　Tip Height: 6.21 mm

-　Super Back Height: 6.25 mm

-　Bore: 7.93 mm

-　Blade : 6+6

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
