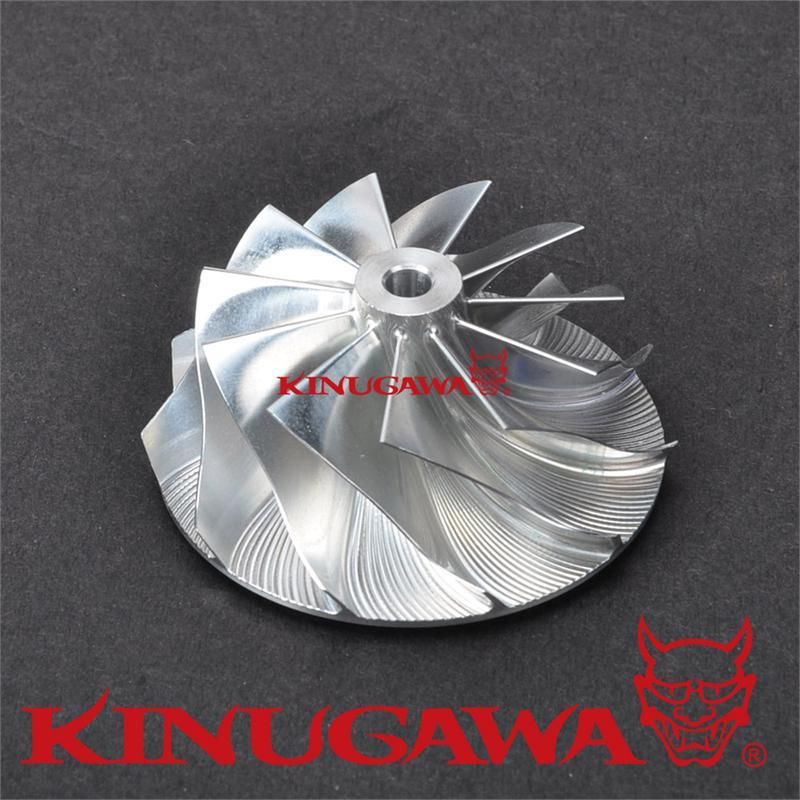

Billet Turbo Compressor Wheel HKSs T51R SPL (76.7/102.3 mm) Trim 56 / 11+0 Blade

Product Information

P/N.

405-99015-1R1

Item Name

Kinugawa Garrett HKS T51R SPL Turbo Billet Compressor Wheel 76.71 / 102.33 mm, Trim 56 / 11+0 Blade

Application

Replace wheel number: ?

Fit CHRA:

Fit Turbo # : HKS T51R SPL, 14001-AK014, 1401-RA145

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 76.71 mm

Exducer Dia. : 102.33 mm

Trim: 56

Extend Tapered Tip Exducer dia : 107.04 mm

Tip Height: 8.25 mm

Super Back Height: 8.20 mm

Bore: 7.93

Blade : 11+0

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
