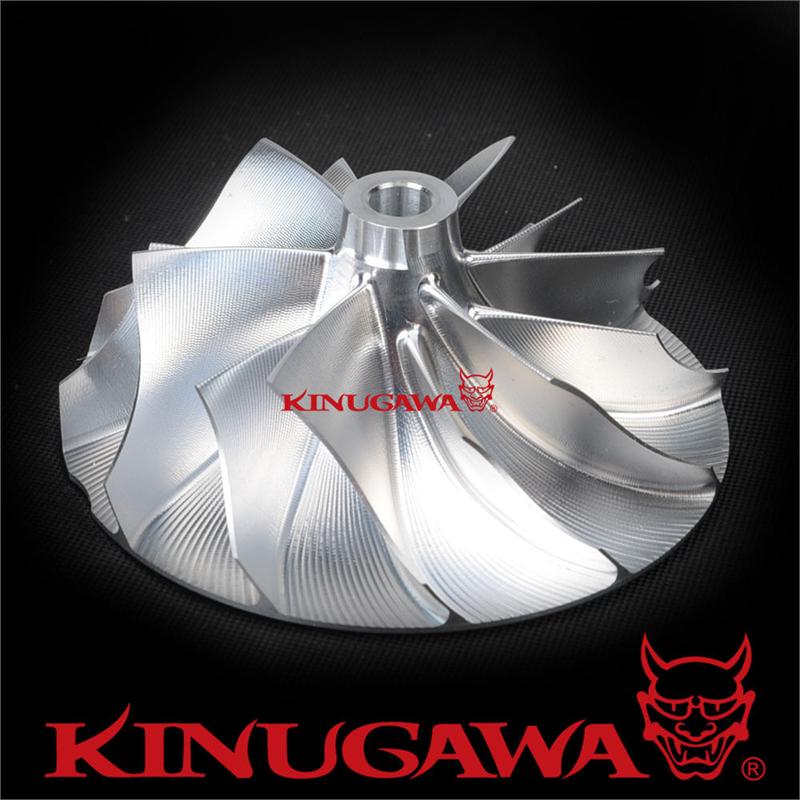

Billet Turbo Compressor Wheel HOLSET HX40 Cummins (60/83 mm) 6+6 w/ Extend Tip

Product Information

P/N.

405-99014-007

Item Name

Kinugawa Holset HX40 Turbo Billet Compressor Wheel 60.04 / 83.03 mm Trim 52 / 6+6 Blade

Application

Replace wheel number: 3599591

Fit CHRA:

Fit Turbo # : Cummins 4027354

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 60.04mm

Exducer Dia. : 83.03mm

Trim: 52

Extend Tapered Tip Exducer dia : 88.78mm

Tip Height: 5.98mm

Super Back Height: 5.01 mm

Bore: 7.00 mm

Blade : 6+6

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
