Billet Turbo Compressor Wheel HOLSET HX40 VOLVO MD9 / KOMATSU PC300-9 (60/86 mm)

Product Information

P/N.

405-99014-014

Item Name

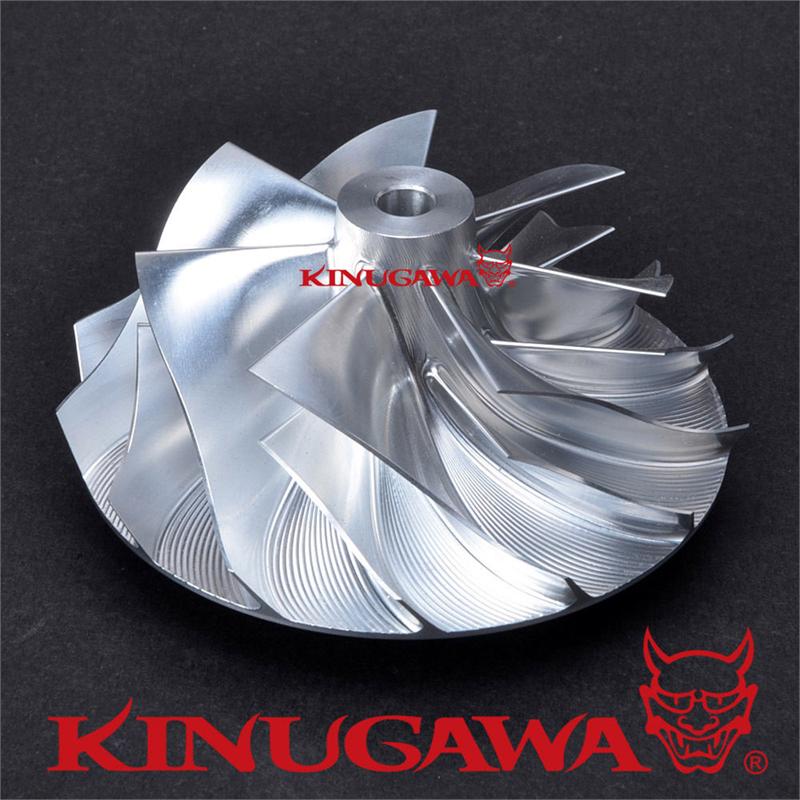

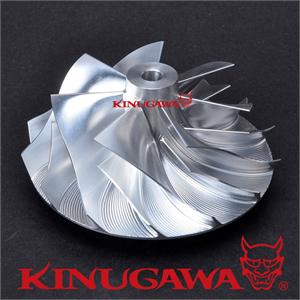

Kinugawa Holset HX40 Turbo Billet Compressor Wheel 59.96 / 85.98 mm Trim 49/ 7+7 Blade

Application

Replace wheel number: 4035879

Fit CHRA:

Fit Turbo # : VOLVO MD9 / KOMATSU PC300-9

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 59.96mm

Exducer Dia. : 85.98mm

Trim: 49

Extend Tapered Tip Exducer dia : No extend tip

Tip Height: 5.77mm

Super Back Height: 4.96 mm

Bore: 7.00 mm

Blade : 7+7

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.
