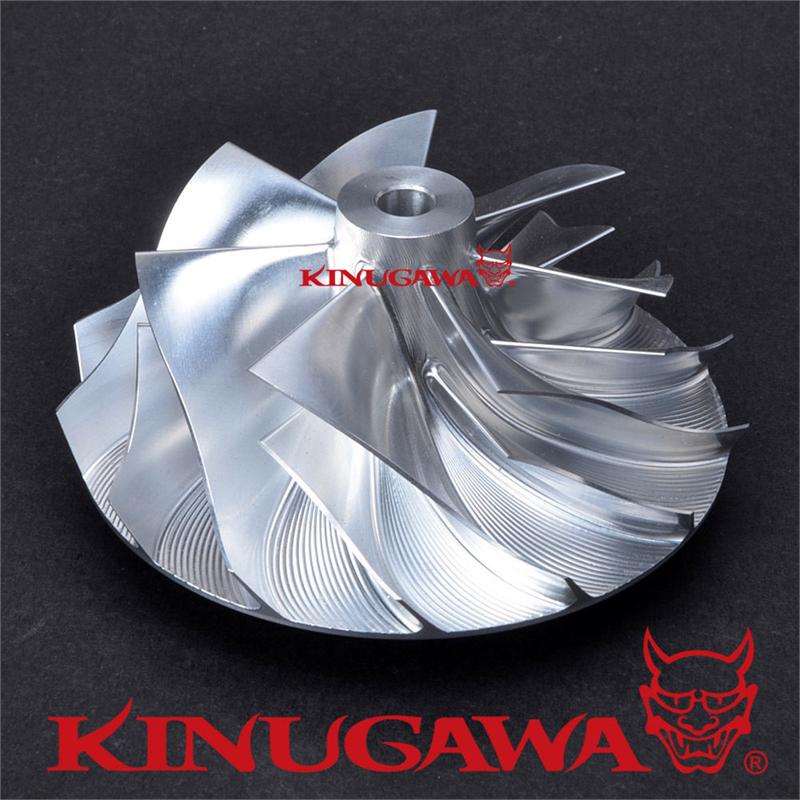

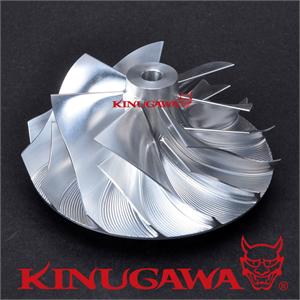

Billet Turbo Compressor Wheel HOLSET HX60 Cummins Iveco Scania (76/109 mm) 8+8

Product Information

P/N.

405-9901X-612

Item Name

Kinugawa Holset HX60 Turbo Billet Compressor Wheel 76.00/ 109.00 mm Trim 49 / 8+8 Blade

Application

Replace wheel number: 3531538

Fit CHRA:

Fit Turbo # : 4045532, 4027403, 4027260, 4027648, 4027256, 4027437, 4027261, 4030876, 4027400, 4027257, 4027023, 3575195

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 76.00mm

Exducer Dia. : 109.00mm

Trim: 49

Extend Tapered Tip Exducer dia : No extend tip

Tip Height: 7.31mm

Super Back Height: 9.68mm

Bore: 11.12 mm

Blade : 8+8

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
