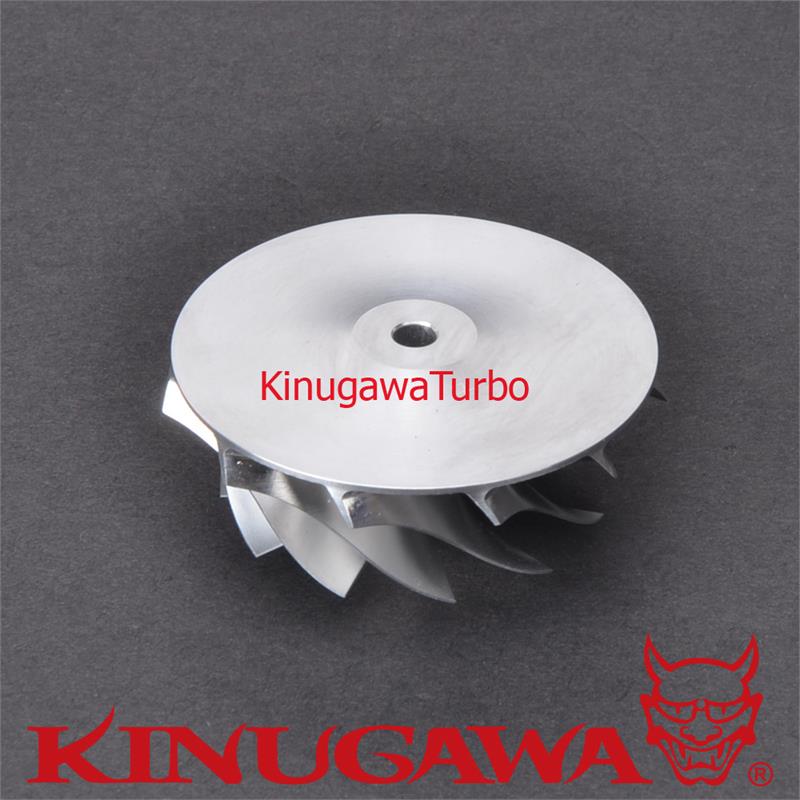

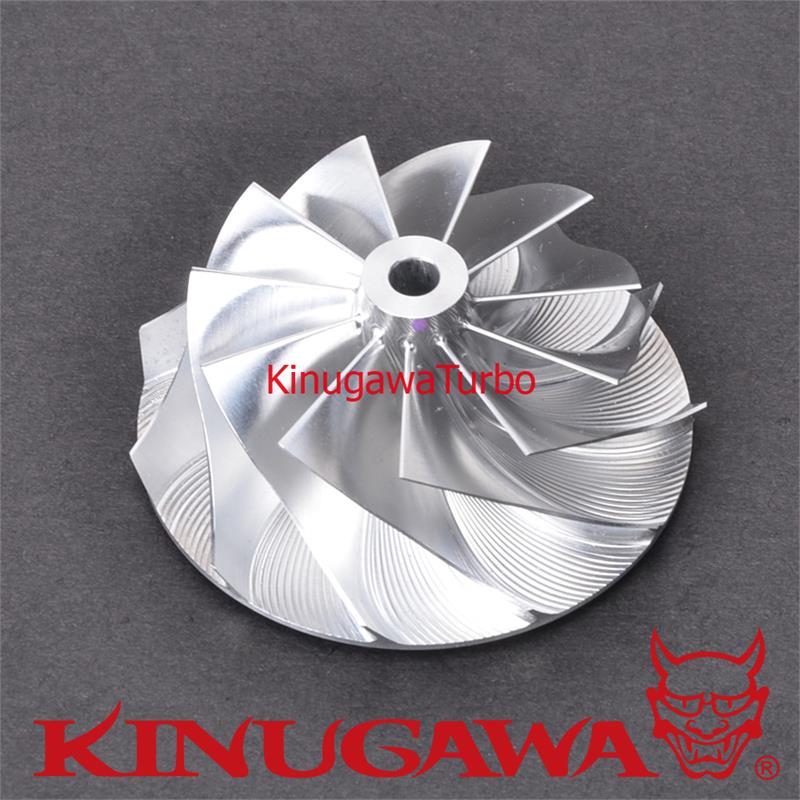

Kinugawa Turbo Billet Compressor Wheel Compatible with Mitsubishi EVO3-16G TRUST T517Z (48.3/68) GTX 11+0

Product Information

P/N.

405-9901D-695

Item Name

Kinugawa Mitsubishi EVO3 TD05H-16G Turbo Billet Compressor Wheel 48.30/68.01 mm with Extend Tip / 11+0

Application

Replace wheel Number:

Fit Turbo #: TD05H-16G / TD05H Big 16G / EVO3-16G

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 48.30 mm

Exducer Dia. : 68.01 mm

Extend Tappered Tip Exducer dia : 72.18 mm

Tip Height: 4.61 mm

Super Back Height: 2.90 mm

Bore: 6.50 mm

Blade : 11+0

Rotation: Forwarder

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
