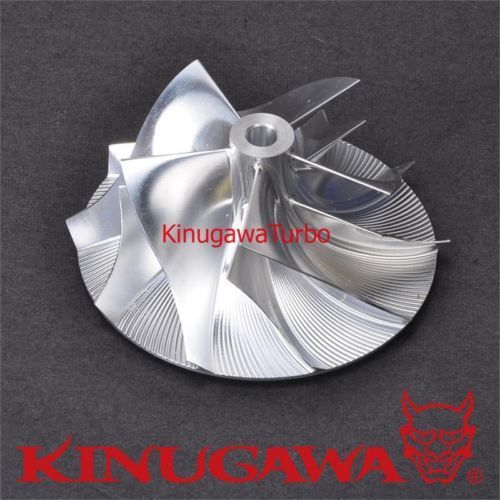

Billet Turbo Compressor Wheel KKK K03-052 / 053 VW Bora 1.8T (38.1/50.96) 4+4

Product Information

P/N.

405-9901K-309

Item Name

Kinugawa KKK K03 / K04 Turbo Billet Compressor Wheel 38.10 / 50.96 mmTrim 5+ / 4+4 Blade

Application

Replace wheel number: 5304-123-2029

Fit CHRA: 5303-710-0516

Fit Turbo # :K03 5303-970-0052 / 0053 / 0058 / 0073 / 0082

                 K04 5304-970-0024 / 0048 / 0027

Fit Car : 02~ VW Bora 1.8T 132kw

            01~04 VW Golf GTi 20V 1.8T 132kw

            01~ VW Jetta 1.8T 132kw

            00~05 SKODA Octavia 1.8T 110kw

            02~ SKODA Superb 1.8T 1.8T 110kw

            03~ AUDI A4 Quatro 190 Hk 1.8T 140kw

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 38.10 mm

Exducer Dia. : 50.96 mm

Trim: 56

Extend Tapered Tip Exducer dia : 55.48 mm

Tip Height: 4.91 mm

Super Back Height: 1.80 mm

Bore: 4.61 mm

Blade : 4+4

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
