Billet Turbo Compressor Wheel KKK K03 K04 K03-2074 VW GT AUDI (37.8/54 mm) 11+0

Product Information

P/N.

405-9901K-381

Item Name

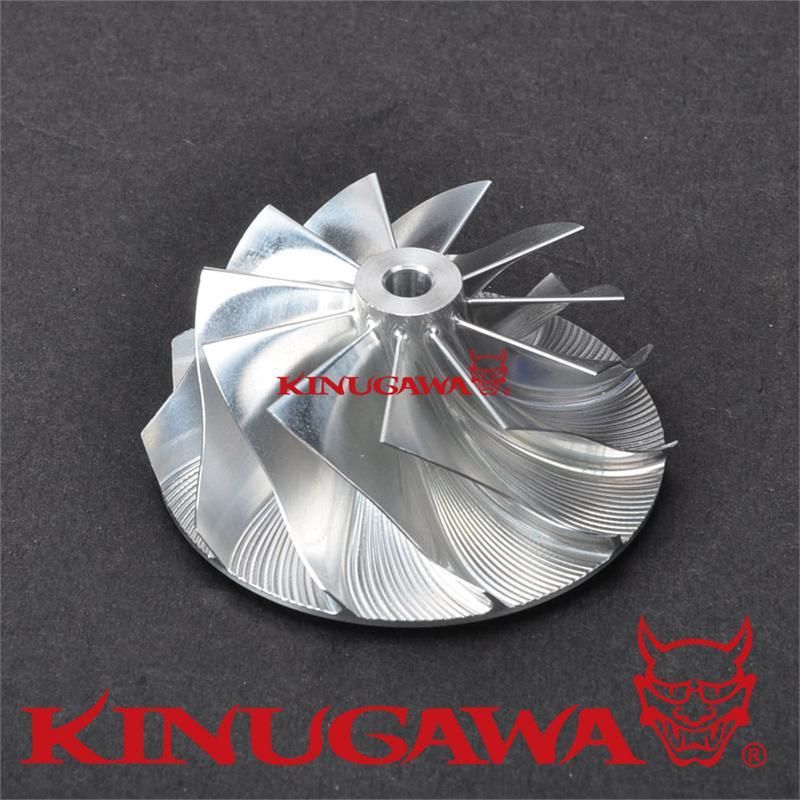

Kinugawa KKK K04 Turbo Billet Compressor Wheel 37.84 / 50.96 mm Trim 55 / 11+0 Blade

Application

Replace wheel number: 5304-123-2209

Fit CHRA:

Fit Turbo #: 5303-988-0099, 5303-988-102, 5303-988-110, 5303-988-112, 5303-988-117, 5303-988-118, 5303-988-122, 5303-988-142, 5303-988-150, 5303-988-151, 5303-988-162, 5304-988-0057

Product

Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 37.84 mm

Exducer Dia. : 50.96 mm

Trim: 55

Extend Tapered Tip Exducer dia : 53.00 mm

Tip Height: 4.14 mm

Super Back Height: 1.80 mm

Bore: 4.61 mm

Blade : 11+0

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

- We can customize billet compressor wheel, Please contact us if you need it.

- We can combine shipping for all items and will send invoice when we receive all of your order.
