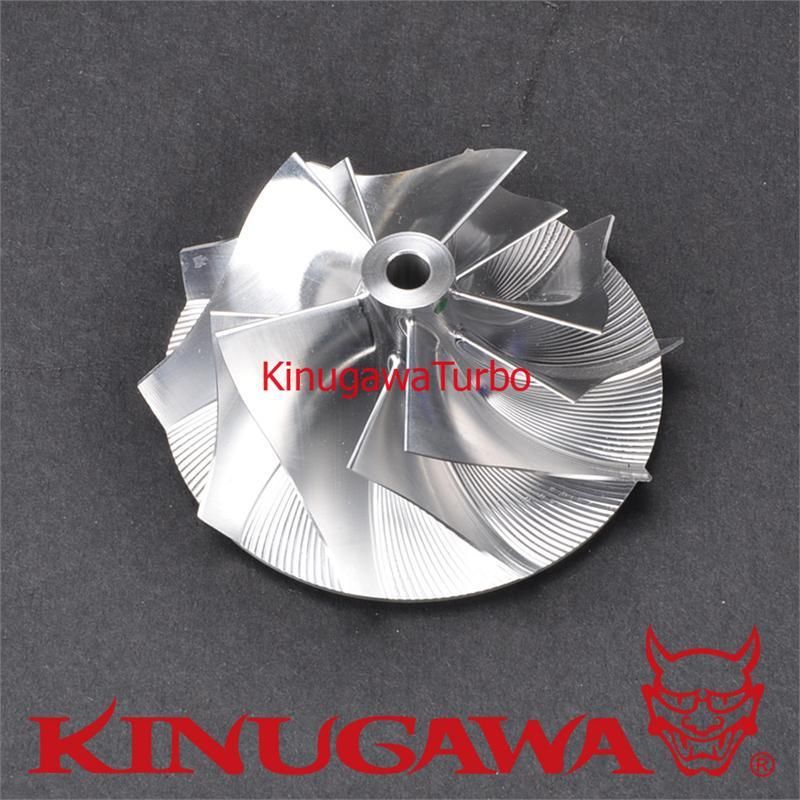

Billet Turbo Compressor Wheel MAZDA 2L HITACHI HT10 HT10-X147 (35.3/51 mm) 5+5

Product Information

P/N.

405-9901H-101

Item Name

Kinugawa HITACHI HT10 HT10-X147 SZUKI / MAZDA Turbo Billet Compressor Wheel 35.34 / 51.00  mm Trim 48 / 5+5 Blade

Application

Replace wheel number:

Fit CHRA:

Fit Turbo # : HT10-X147 (047-115) / MAZDA Bongo, Suzuki Grand Vitara(FT, GT), Vitara(ET, TA) 2.0L 64 KW engine.

1998-03 Suzuki Grand Vitara YBO.65LP with RF Engine

1998- MAZDA Bongo 2.0L with RF Engine

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 35.34 mm

Exducer Dia. : 51.00 mm

Trim: 48

Extend Tapered Tip Exducer dia : 54.80mm (Performance Design)

Tip Height: 4.29 mm

Super Back Height: 0.1 mm

Bore: 5.00 mm

Blade : 5+5

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.
