Billet Turbo Compressor Wheel Mitsubishi CAT E320C TD06H-16M (48/68 mm) 6+6

Product Information

P/N.

405-9901D-612

Item Name

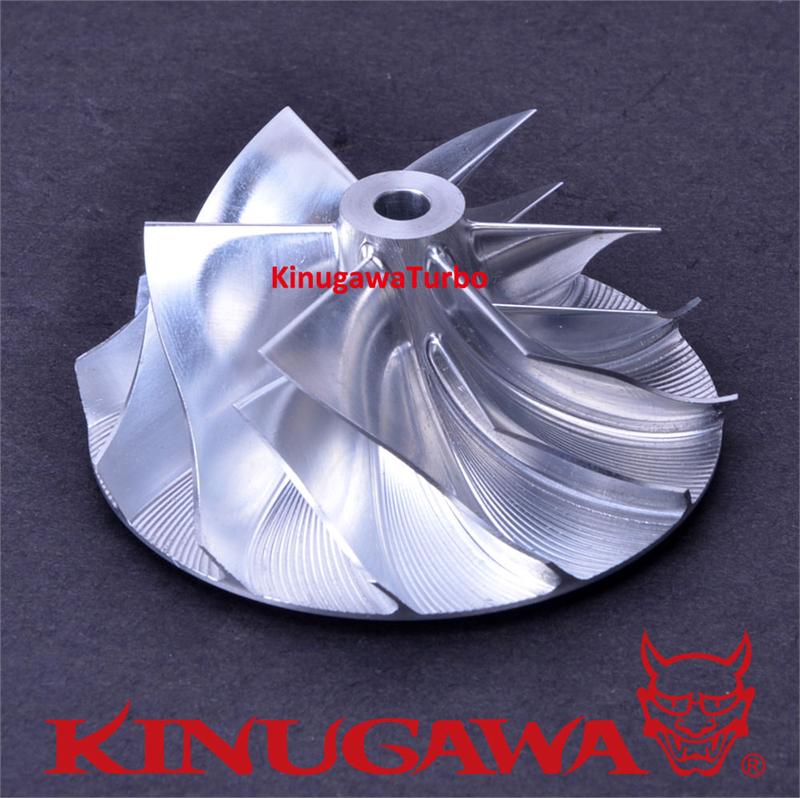

Kinugawa Mitsubishi TD06H-16M Turbo Billet Compressor Wheel 48.04 / 68.01 mm (6+6)

Application

Replace wheel Number: 49185-40700

Fit Turbo #: TD06H-16M 49179-02220, 49179-02230, 49179-02240, 49179-02260, 49179-02270, 49179-02280, 49179-02300.

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 48.04 mm

Exducer Dia. : 68.01 mm

Extend Tappered Tip Exducer dia : No Extend Tip

Tip Height: 5.00 mm

Super Back Height: 2.90 mm

Bore: 6.50 mm

Blade : 6+6

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
