Billet Turbo Compressor Wheel Mitsubishi EVO 4-9 TD05HR-16G (48.3 / 68mm) 6+6

Product Information

P/N.

405-9901D-694

Item Name

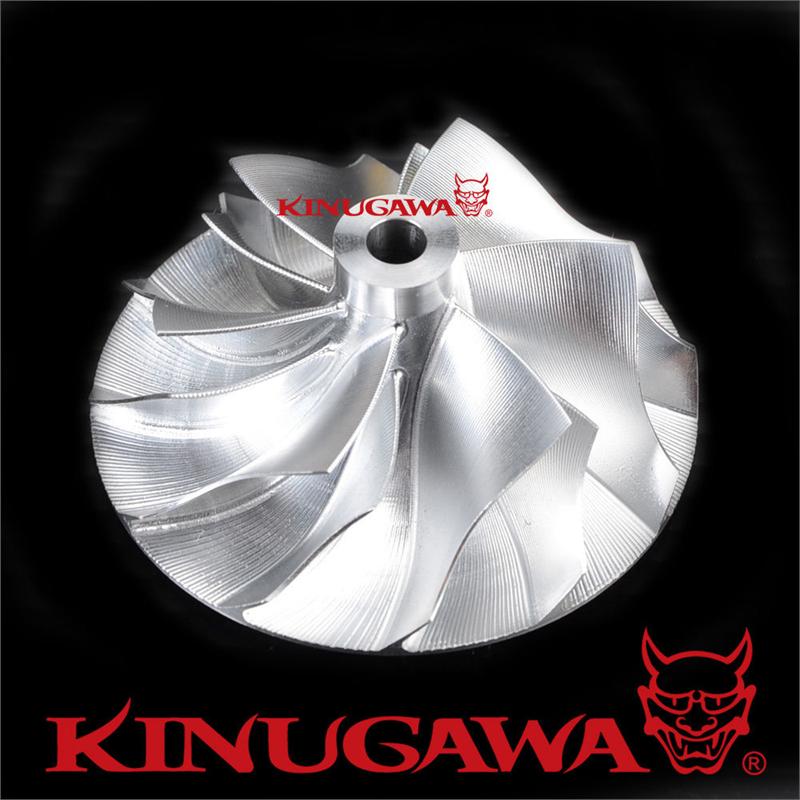

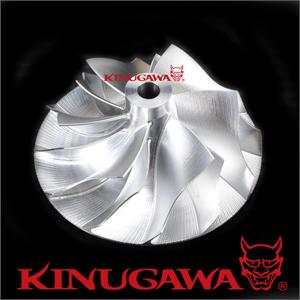

Kinugawa Mitsubishi EVO 4~9 TD05HR-16G Reverse Turbo Billet Compressor Wheel 48.30/68.01 mm with Extend Tip

Application

Replace wheel Number: Lancer EVO 4~9

Fit Turbo #: TD05HR-16G EVO 4~9: 49178-01500, 49178-01510, 49178-01520, 49178-01540, 49178-01550, 49178-01560, 49178-01570, 49178-01580, 49378-01510, 49378-01520, 49378-01530, 49378-01540, 49378-01550, 49378-01560, 49378-01580, 49378-01581,

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 48.30 mm

Exducer Dia. : 68.01 mm

Extend Tappered Tip Exducer dia : 72.18 mm

Tip Height: 4.61 mm

Super Back Height: 2.90 mm

Bore: 6.50 mm

Blade : 6+6

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.
