Billet Turbo Compressor Wheel Mitsubishi EVO X / 10 TD05H-152G6 (47/68mm) 6+6 High Blade

Kinugawa EVO 10 X Billet Turbo Compressor Wheel  TD05H-152G6

P/N.

405-02015-043

Item Name

Kinugawa EVO X / 10 Billet Turbo Compressor Wheel 152G6

Application

49378-01640, 49378-01631, 49378-01642

TD05H-152G6-12T / TD05HA-152G6-12T Turbocharger.

Product Situation

Brand New

30% lighter than genuine cast wheel.

Offer extra 30% airflow than stock cast wheel.

Maximum boost 5 bar / 70 Psi

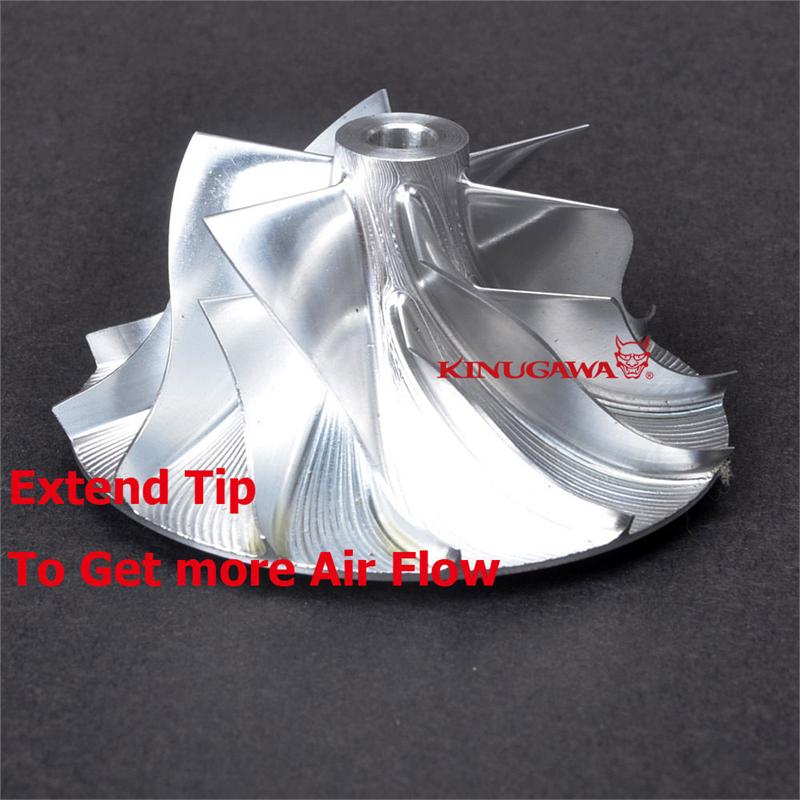

Higher Blade and extend tip to get more airflow

Replace stock cast compressor wheel..

Balance

Balanced on SCHENCK

Ready to work.

Wheel Size

Inducer Dia.: 47.05 mm

Exducer Dia. : 68.01 mm

Extend Tip Exducer diameter : 71.83 mm

Tip Height : 4.31 mm

Blade Heights：28.9mm

Super Back Height: 2.90 mm

Hole for shaft : 6.50 mm

Blade # : 6+6

Made By

Kinugawa Turbo

Warranty

One Year
