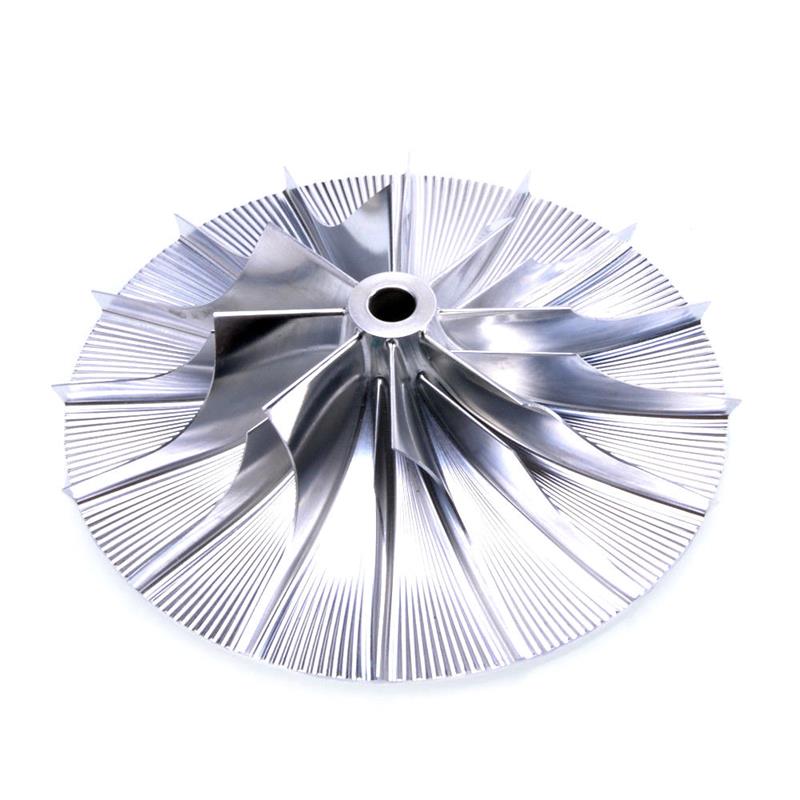

Kinugawa Turbo Billet Compressor Wheel for Vortech - V2 Forward ( 76/145.9 ) 8+8

Product Information

P/N.

405-9901S-C02

Item Name

Kinugawa Turbo Billet Compressor Wheel for Vortech - V2 Forward ( 76/145.9 ) 8+8

Application

Vortech - V2

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

- Nose Dia : 18.86 mm

- Inducer Dia : 76 mm

- Exducer Dia : 145.9 mm

- Extend Tapered Tip Exducer Dia : 151.82 mm

- Tip Height : 6.63 mm

- Super Back Height : 0.70 mm

- Overall Height : 36.45 mm

- Bore Size : 10.00 mm (Through type)

- Racing or Non-racing : Non-Racing

- STD or customs size : STD

- Blade : 8+8

- Trailing angle : 90

- Bore Type : Through

- Fits OE or Custom Comp Hsg : OE Housing

- Cutback : 0.0

- Rotation : Forward

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.
