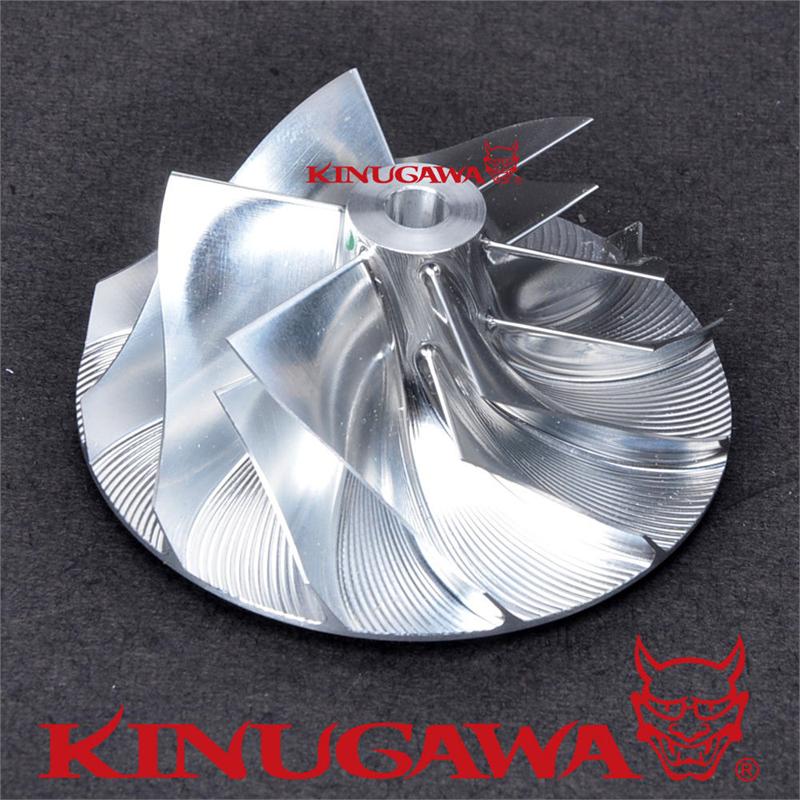

Billet Turbo Compressor Wheel TOYOTA 1HD-F 1HD-FT 4.2L CT26 (42.1/64.9 mm) 6+6

Product Information

P/N.

405-99012-601

Item Name

Kinugawa TOYOTA CT26 1HD-T HDJ 80, 1HD-FT HDJ81 17201-17010 Turbo Billet Compressor Wheel42.12 / 64.89 mm Trim 42 / 6+6 Blade

Application

Replace wheel number: 17291-17010

Fit CHRA: 17202-17035

Fit Turbo # : 17201-17010, 17201-17020, 17201-17030, 17201-58010, 17201-58011, 17201-68010

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 42.12 mm

Exducer Dia. : 64.89 mm

Trim: 42

Extend Tapered Tip Exducer dia : No Extend Tip

Tip Height: 4.68 mm

Super Back Height: 1.37 mm (Recessed Super Back)

Bore: 6.50 mm

Blade : 6+6

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

Please make sure your stock wheel spec before ordering this wheel.

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
