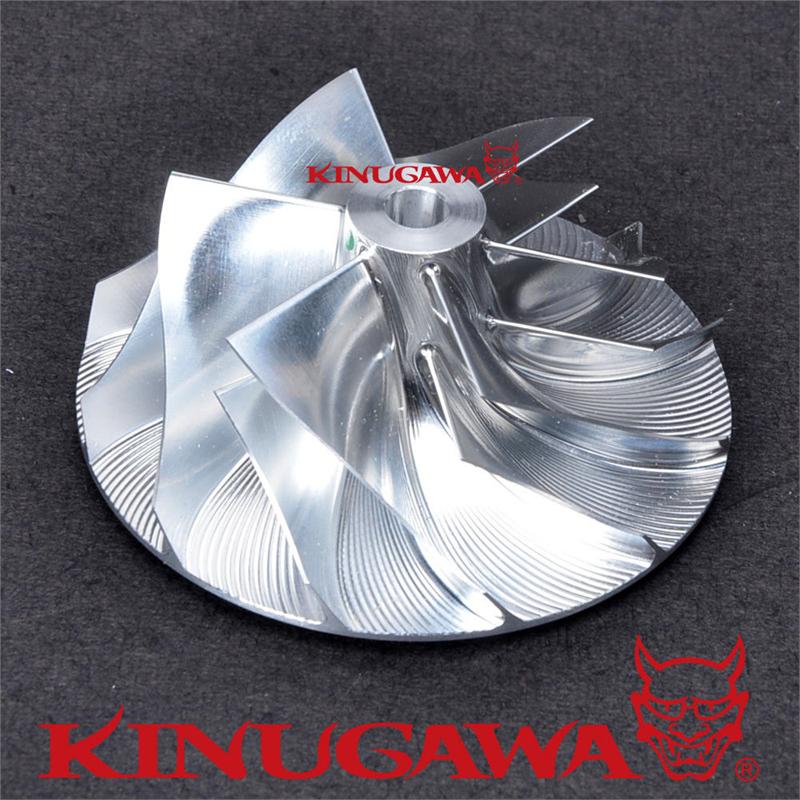

Billet Turbo Compressor Wheel TOYOTA 1KD Hilux 3.0L D-4D (38.87/58 mm) 6+6

Product Information

P/N.

405-99011-002

Item Name

Kinugawa TOYOTA 1KD-FTV 3.0L D-4D HILUX Turbo Billet Compressor Wheel 38.87 / 58.01 mm Trim 45 /6+6 Blade

Application

Replace wheel number: 17291-0L040

Fit CHRA: ???

Fit Turbo # :17201-0L040, 17201-30110 Land Cruiser Prado, Hilux Surf, Fortuner, Hiace.

17201-0L040/30100/30101/30160/30181/30110/30010/33110/30180/30150

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 38.87 mm

Exducer Dia. : 58.01 mm

Trim: 45

Extend Tapered Tip Exducer dia : No Extend Tip

Tip Height: 4.52 mm

Super Back Height: 2.45 mm

Bore: 5.10 mm

Blade : 6+6

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

Please double check wheel spec you need before ordering this wheel.

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
