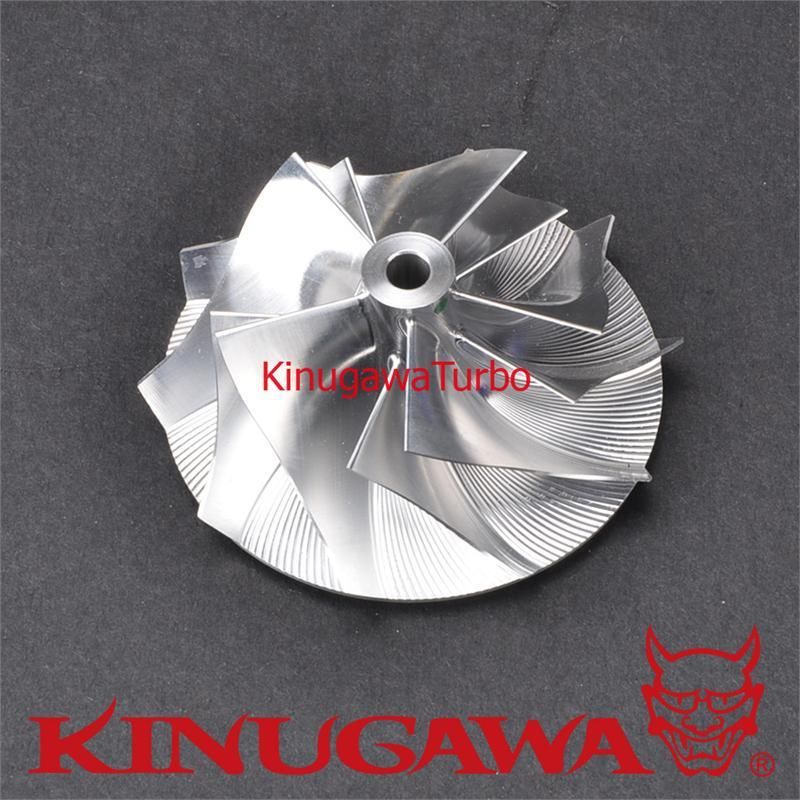

Billet Turbo Compressor Wheel TOYOTA CT20 2JZ-GTE JZA80 (39/58mm) 5+5 Blade

Product Information

P/N.

405-99011-204

Item Name

Kinugawa TOYOTA 2JZ-GTE JZA80 CT20 1993~Turbo Billet Compressor Wheel 39.05 / 58.03 mm Trim 45 / 5+5 Blade

Application

Replace wheel number: 17208-46030

Fit CHRA: ???

Fit Turbo # : 17201-46030

Product Situation

Brand New

Maximum boost 5 bar / 70 Psi

Balance

Balanced By SCHENCK Germany

Ready to competition

Wheel Size

Inducer Dia.: 39.05 mm

Exducer Dia. : 58.03 mm

Trim: 45

Extend Tapered Tip Exducer dia : 62.30mm (High Flow Type)

Tip Height: 4.70 mm

Super Back Height: 1.04 mm

Bore: 5.10 mm

Blade : 5+5

Material

Forged Aluminum

Supplier

Kinugawa Turbo

Warranty

One Year

Note

We can customize billet compressor wheel, Please contact us if you need it.

We can combine shipping for all items and will send invoice when we receive all of your order.
