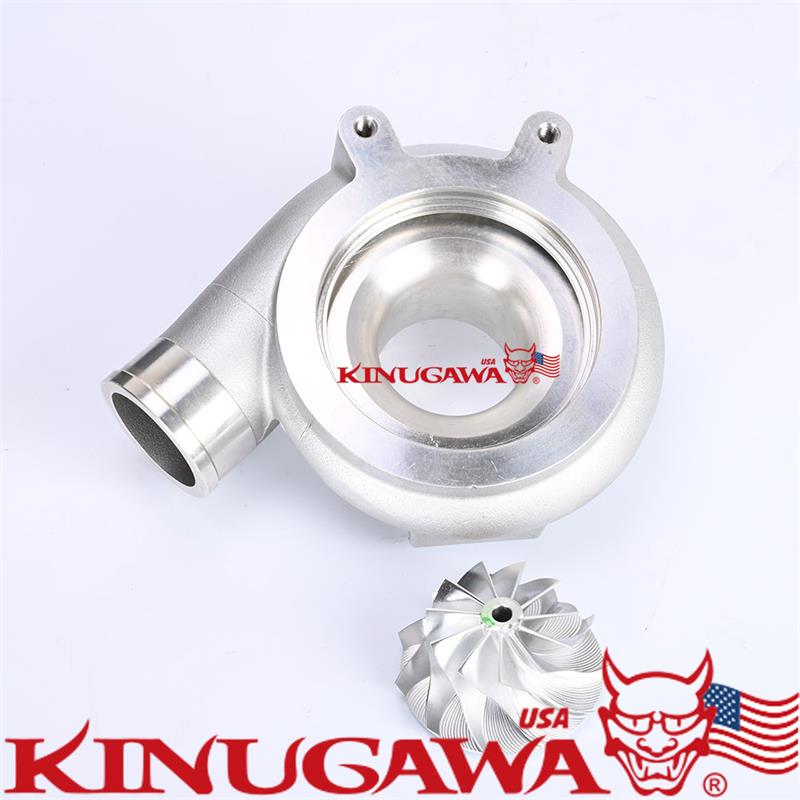

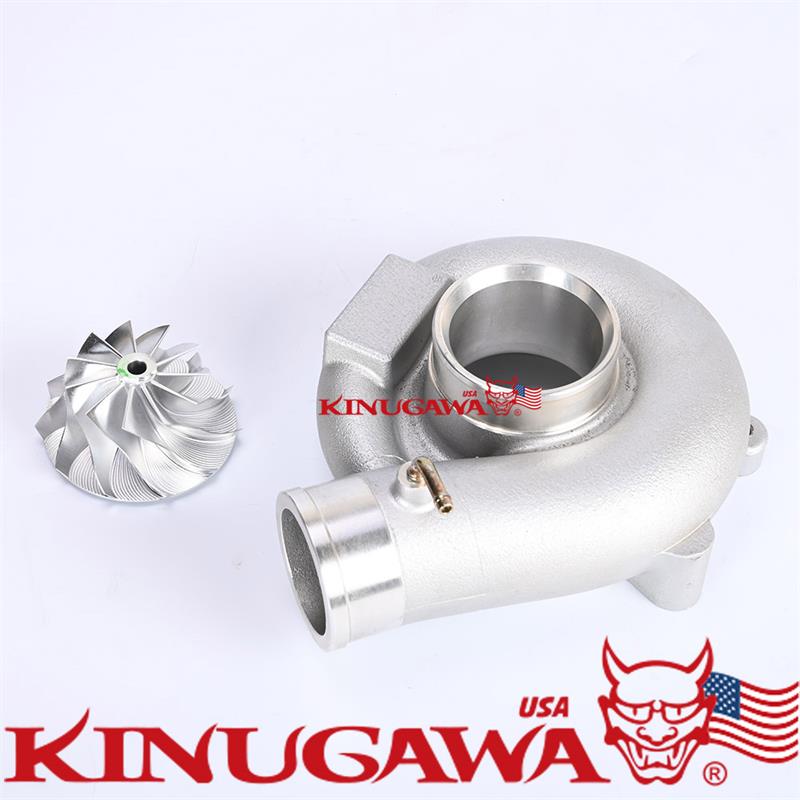

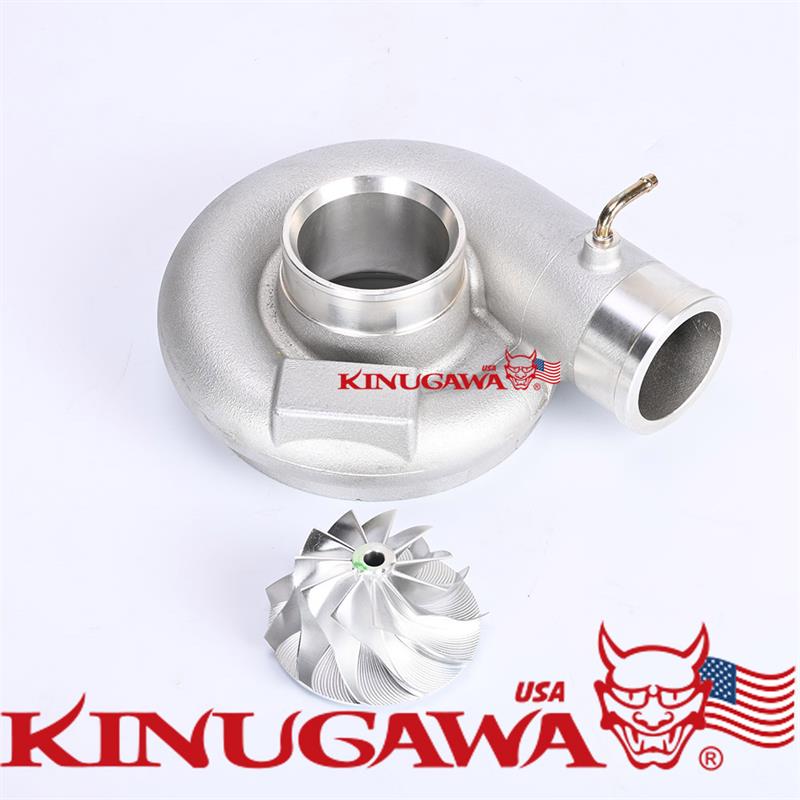

2.4" Inlet Turbo Compressor Housing + Wheel For Garrett GTX2867R (49.7 / 67.4)
|
Item Number: 305-37208-011
* Whole number only
|
|
| Application |
Fit CHRA # : 446179-0094
Fit Turbo # : 816366-0001
|
| Wheel Spec. |
Inducer Dia.: 49.70 mm
Exducer Dia. : 67.40 mm
Extend Tapered Tip Exducer dia : 70.65 mm
Tip Height: 6.00 mm
Super Back Height: 2.32 mm
Bore: 5.99 mm
Blade : 11+0
Total Height: 27.5 mm
|
| Noted |
Compressor inlet ：2.4"
Compressor outlet ：2"
|
|
|
|
|
