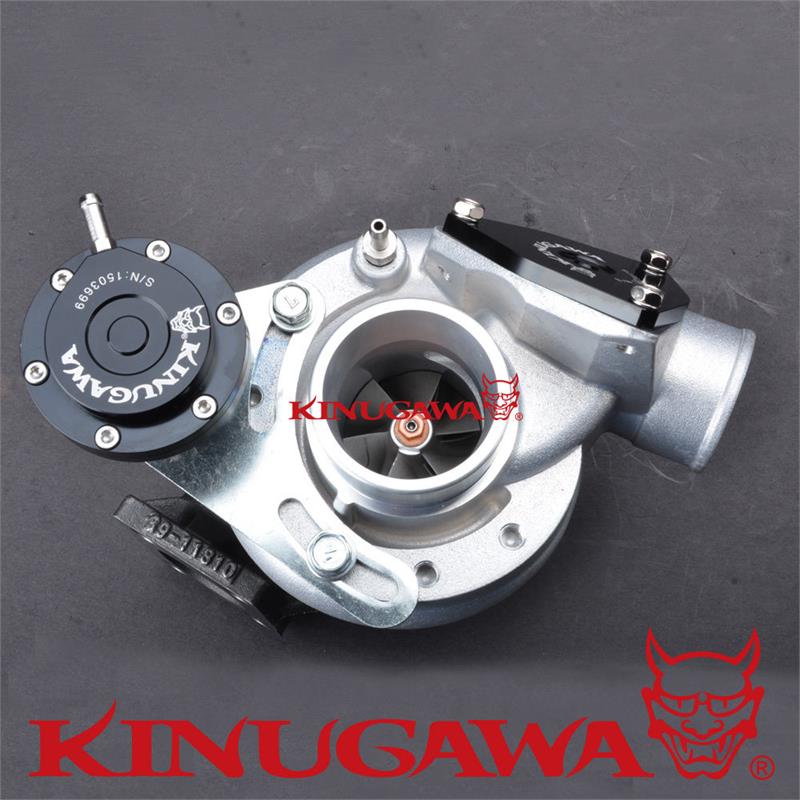

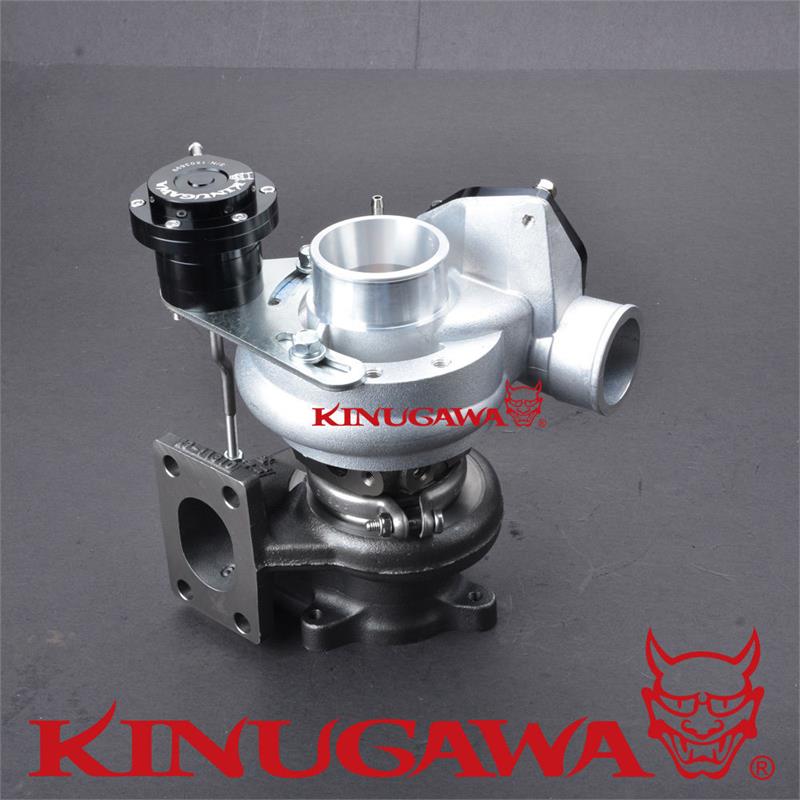

Genuine Mitsubishi Convert to Kinugawa Turbocharger TD04L-13T 6cm T25 250HP

Genuine Mitsubishi Turbocharger conver to Kinugawa TD04L-13T Turbocharger with Adjustable Actuator  and 6cm  T25 Internal Gated Turbine Housing

Item Name

Kinugawa TD04L-13T Turbocharger with Adjustable Actuator nd 6cm T25 Inlet Turbine Housing.

P/N.

301-02001-383

Application

-  Universal Type

-  1.5~2L Gasolin engine

-   3L~4L Diesel engine.

CHRA Size:

- TD04L-13T

Wheel spec

Compressor wheel: 40.7 / 56 mm (13T Wheel)

Upgrade to Billet wheel is available

Turbine wheel: 41.3 / 47 mm (TD04L)

Compressor

Housing

with Block Off Plate

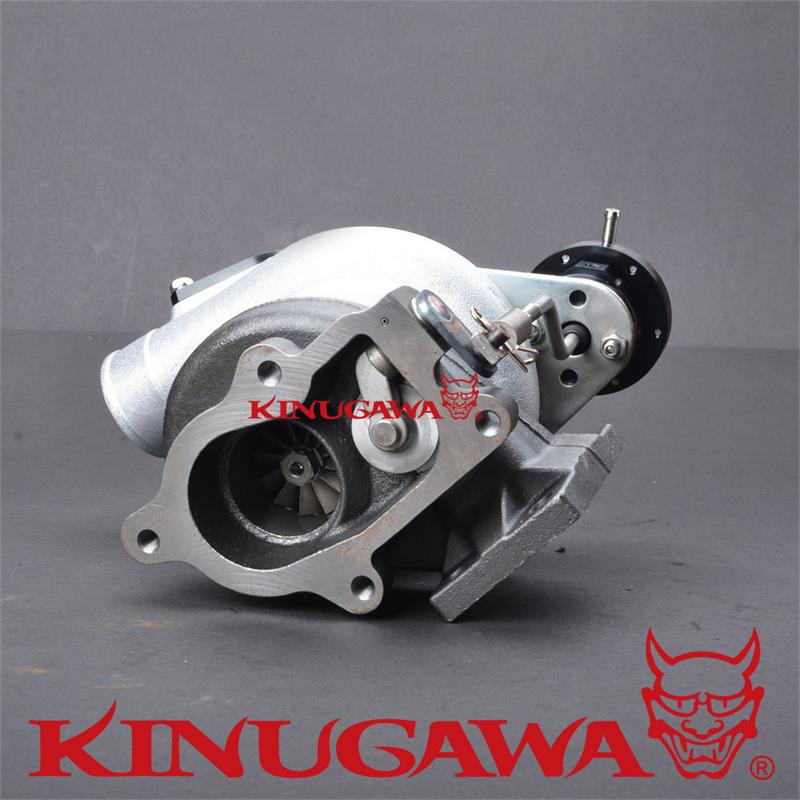

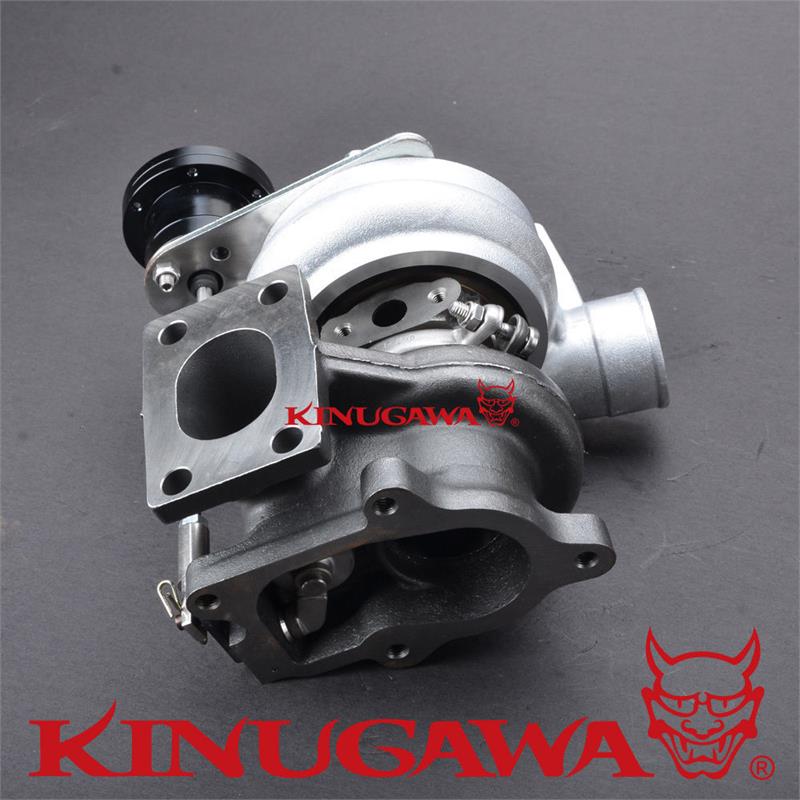

Turbine Housing

- 6cm / AR .43

- T25 Inlet Flange

- Internal Gate

Bearing Type

- Journal Bearing

(Genuine Mitsubishi TD04L-14T Cartridge ,

 MHI Part #.49377-06520)

Cooling Type

- Oil and Water-Cooled

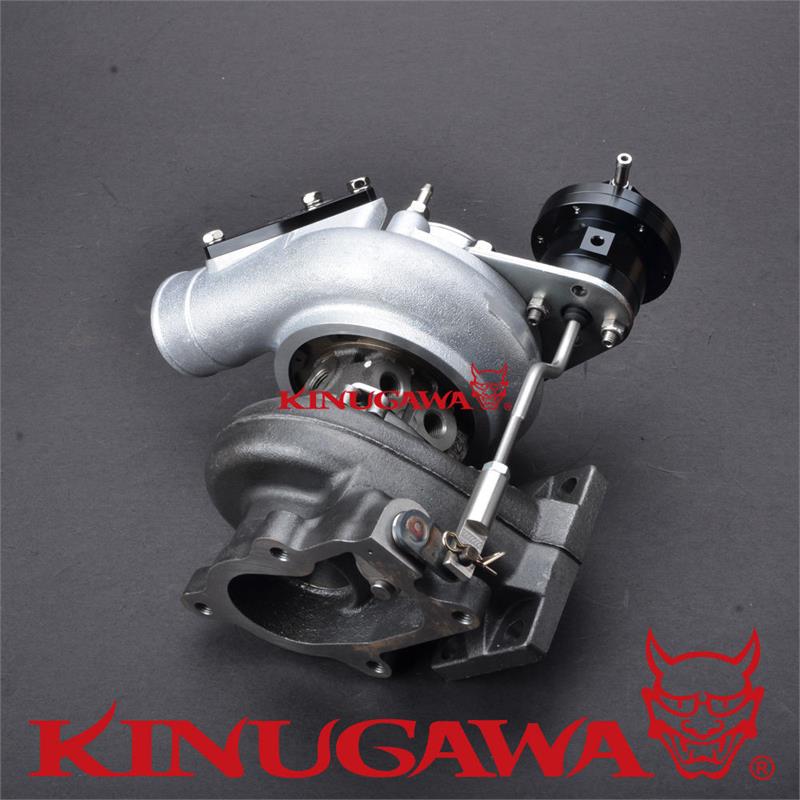

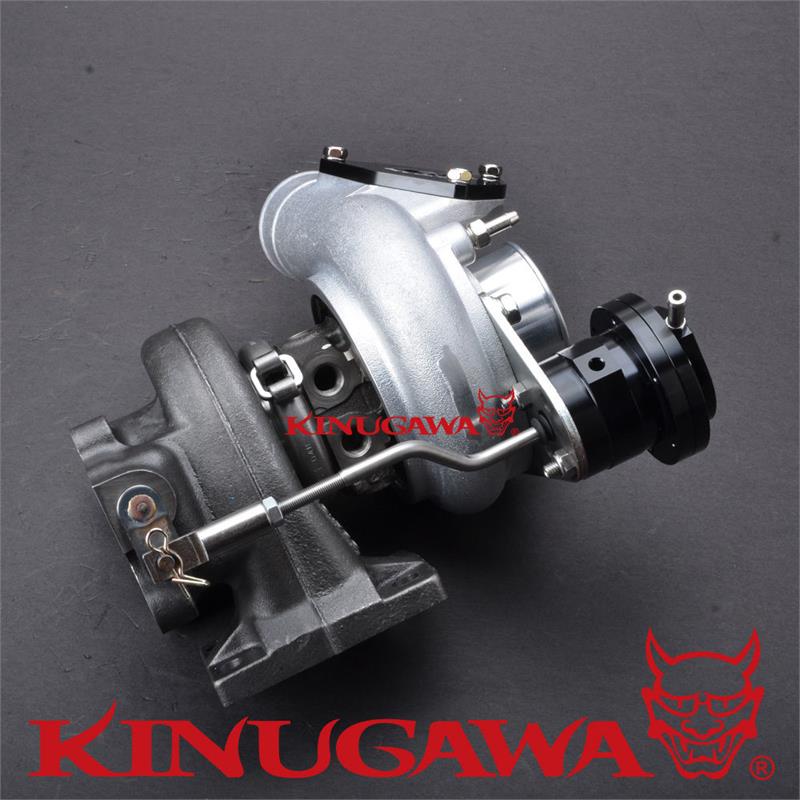

Watergate Actuator

- 0.8 bar actuator will go with this turbocharger.

- 0.3Bar, 0.5 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it.

Max Hp

160~250 HP

Turbo Boost

Limit

2.0 Bar

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

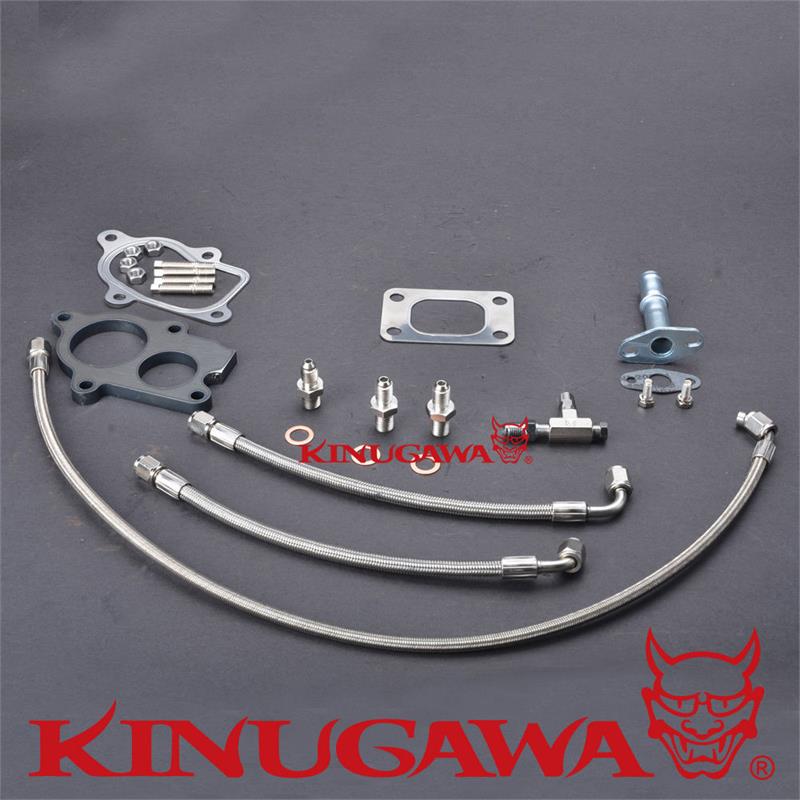

Kit Includes

1 x 70cm Oil feed line kit

1 x Oil drain pipe kit

2 x 24cm Coolant line Kit

1 x Turbine Gasket Set( Inlet + Outlet )

4 x Stud and Nut Set

1 x Turbine Outlet Flange

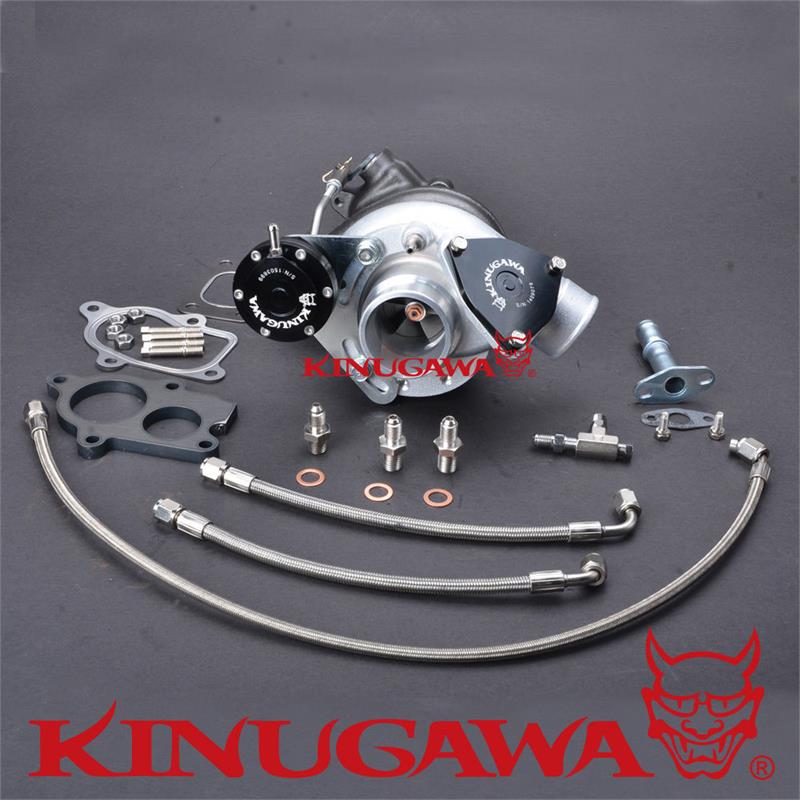

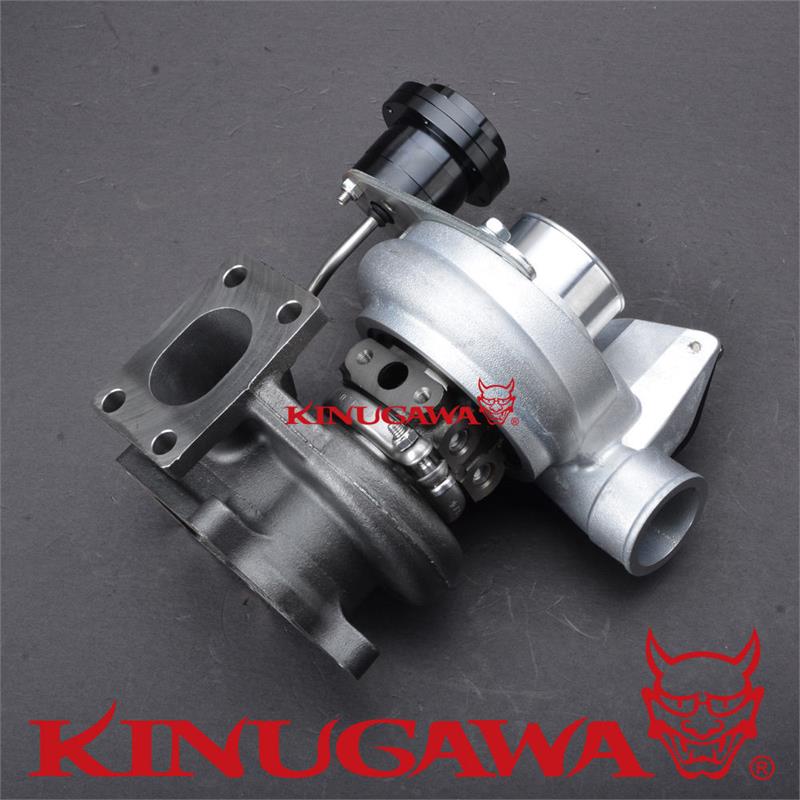

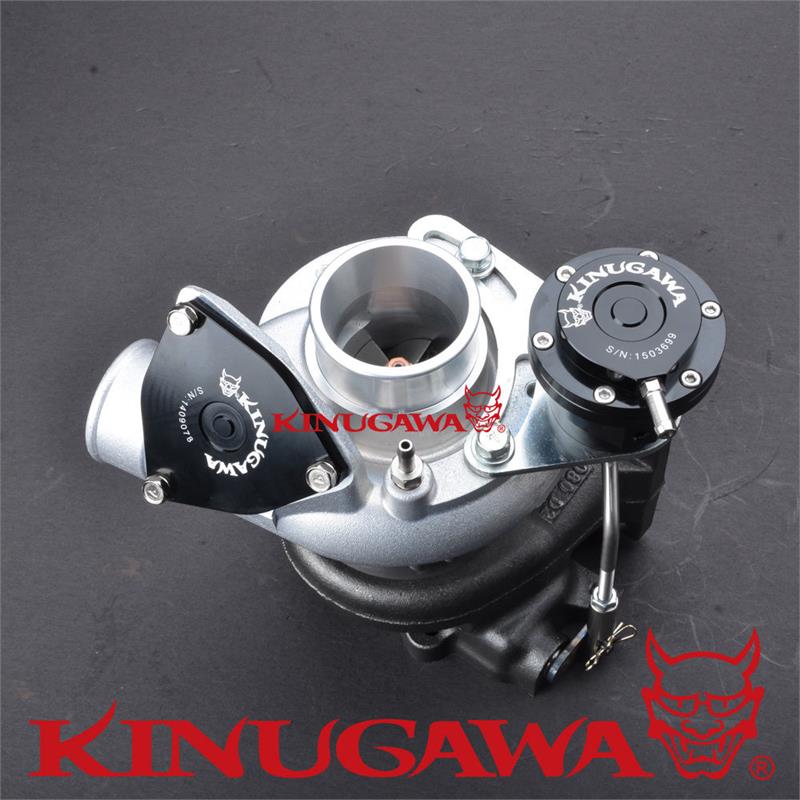

Everything shown on picture is included.

Upgraded By

Kinugawa Turbo

(Genuine Mitsubishi Cartridge from Japan)

Warranty

One Year
