Kinugawa Billet Cartridge CHRA fit Greddy T618Z MHI TD06 STD 18G Oil Cooled

Product Info

Item Name

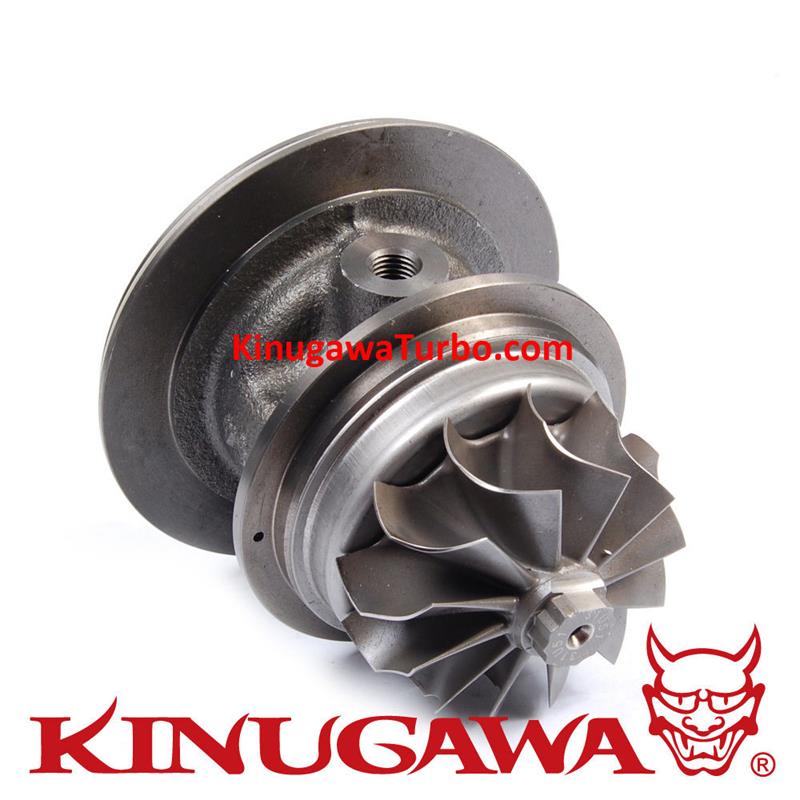

TD06 STD-18G Oil-Cooled Turbocharger Billet CHRA Cartridge

P/N

 333-02102-070

Application

-       GREDDY T618Z Turbo

-    Mitsubishi TD06 STD-18G Turbocharger

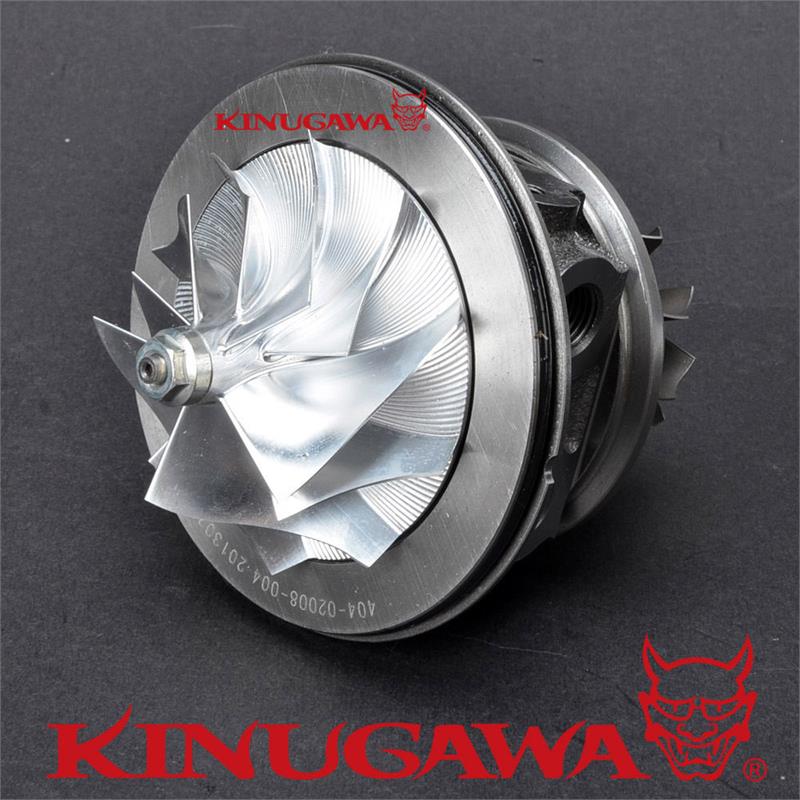

-       Compressor wheel Spec: 50.3 / 68 mm (Billet 6+6 Blades), Inducer / Exducer Diameter

-   Turbine Wheel Spec: 65 / 55.3 mm (TD06 STD / 12 Blades), Inducer / Exducer Diameter

Situation

-       Brand New

-    Complete Cartridge was balanced by SCHENCK MBRS 110 to make sure it can work perfect.

-   Balanced Level:  VSR / 125,000 RPM / 1.5mg

-       Ready to work.

Cooling / Thrust Bearing

-       Oil-Cooled.

-      This Cartridge goes with KAMAK Performance thrust bearing kit that can handle 45psi easily. ( Double oil feed hole with larger thrust ring)

Made By

-   Kinugawa Turbo

Warranty

-       One Year

-       Life time service
