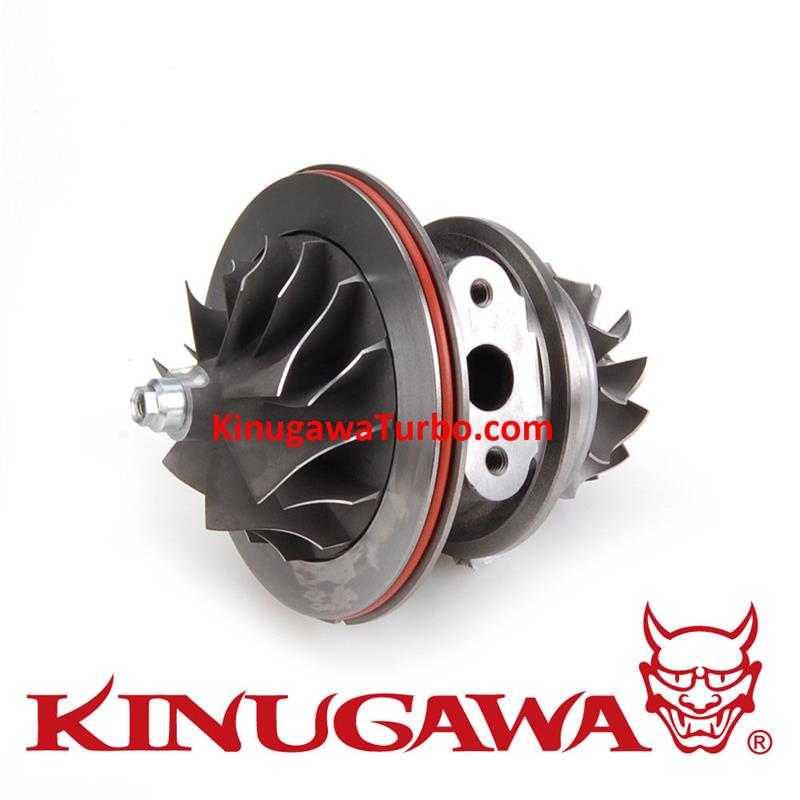

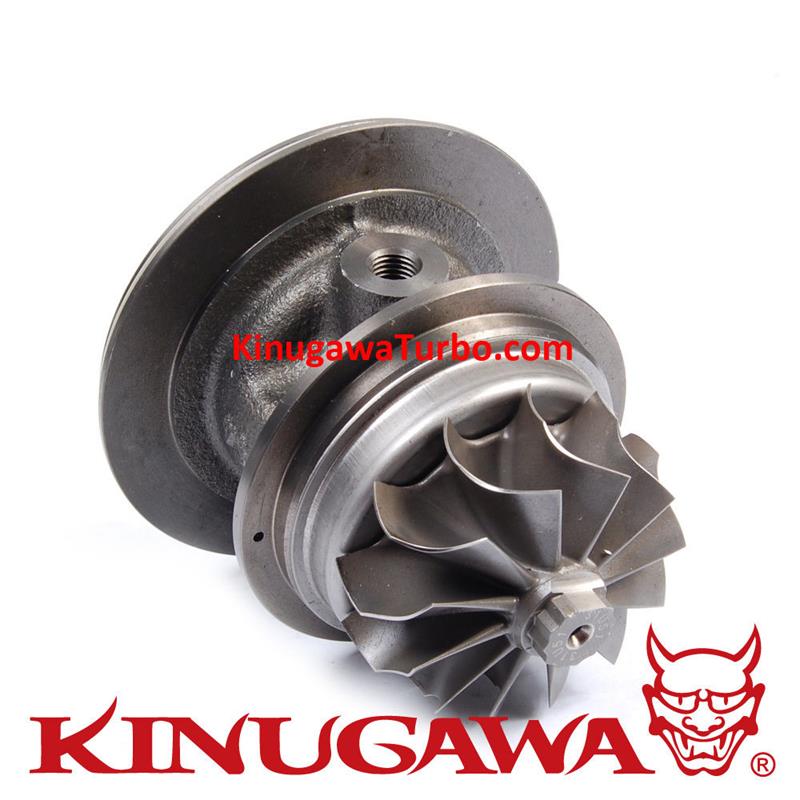

Kinugawa Turbo Cartridge CHRA Mitsubishi TD05H-14G Oil-Cooled 49178-09610 4D34T

Product Info

Item Name

TD06 STD-18G Oil-Cooled Turbocharger CHRA Cartridge

P/N

 303-02102-070

Application

-       GREDDY T618Z Turbo

-       Compressor wheel Spec: 50.3 / 68 mm, Inducer / Exducer Diameter

-   Turbine Wheel Spec: 65 / 55.3 mm (TD06 STD / 12 Blades), Inducer / Exducer Diameter

Situation

-       Brand New

-    Complete Cartridge was balanced by SCHENCK MBRS 110 to make sure it can work perfect.

-   Balanced Level:  VSR / 125,000 RPM / 1.5mg

-       Ready to work.

Cooling / Thrust Bearing

-       Oil-Cooled.

-      This Cartridge goes with KAMAK Performance thrust bearing kit that can handle 45psi easily. ( Double oil feed hole with larger thrust ring)

Made By

-   Kinugawa Turbo

Warranty

-       One Year

-       Life time service
