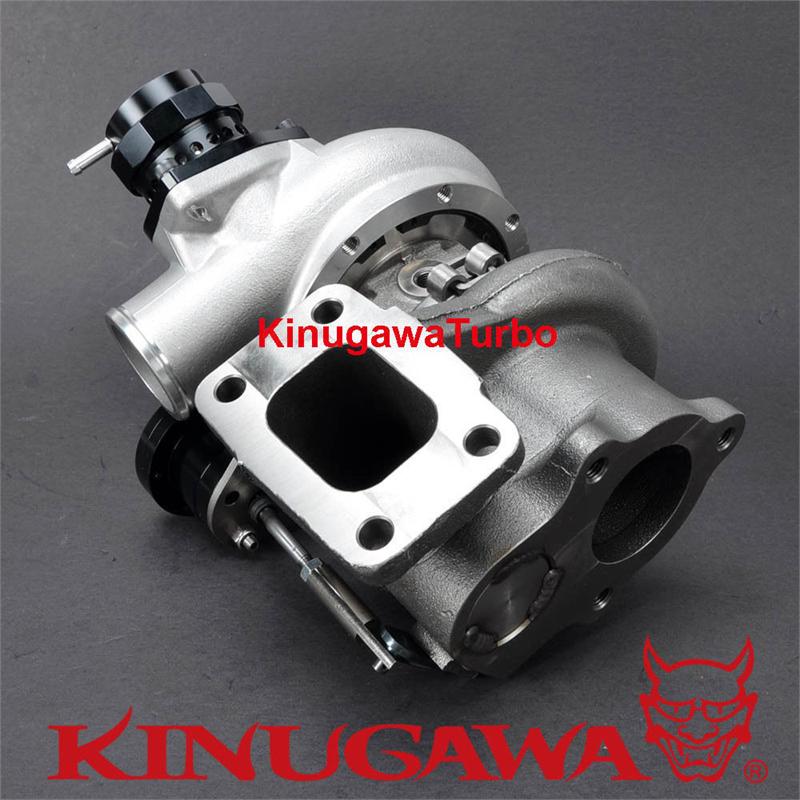

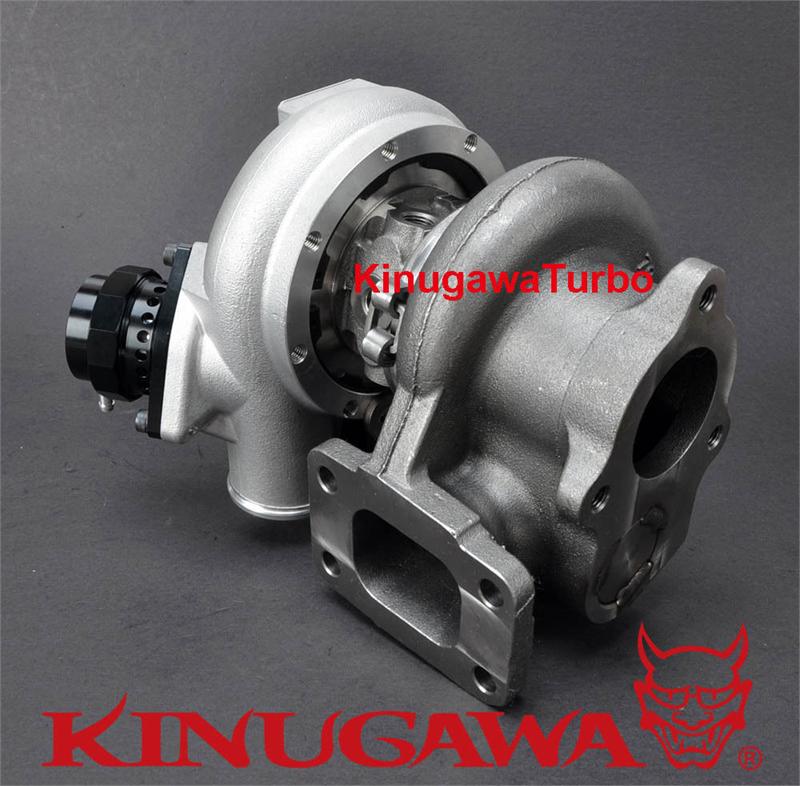

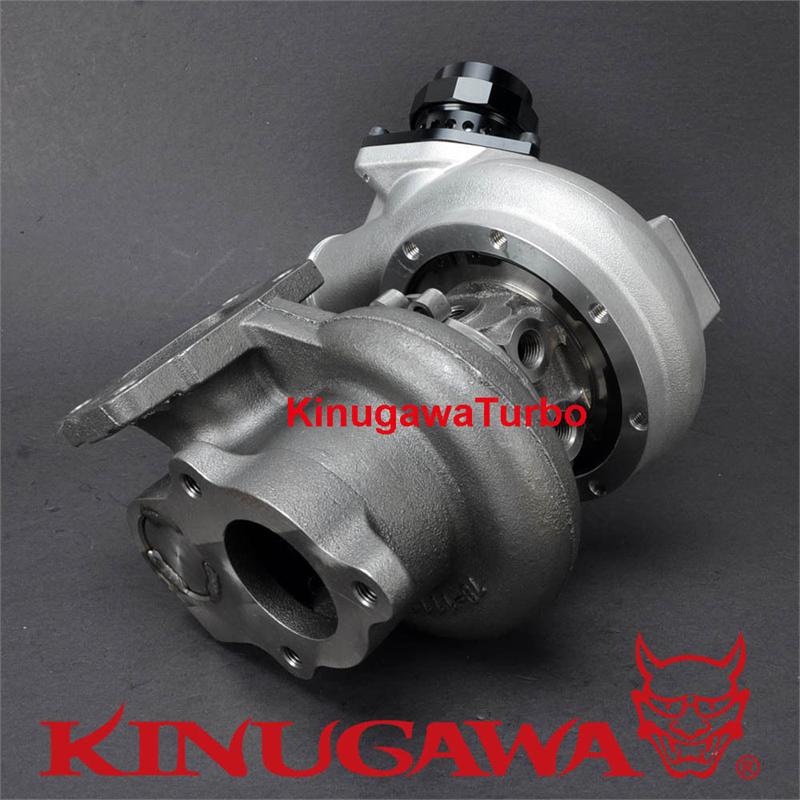

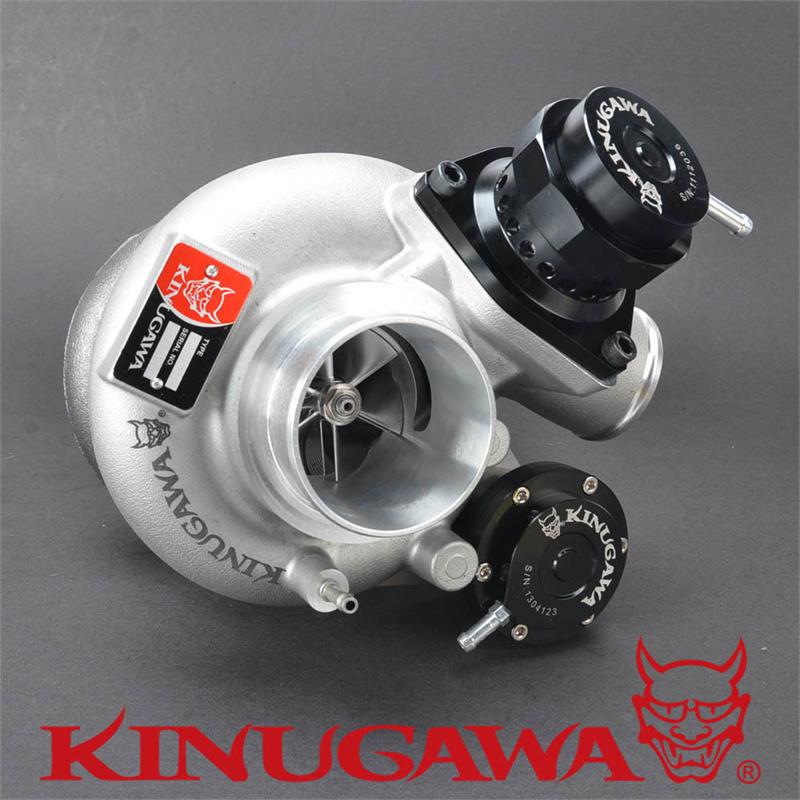

Kinugawa Billet Turbocharger 2.4" TD05H-16G & Blow Off Valve & 8cm T3 Housing

Product Information

Item Name

Kinugawa TD05H-16G Turbocharger with 2.4”  Compressor Housing, Blow Off Valve and  T3 8cm Turbine Housing

P/N.

 301-02001-220

Application

-       Universal Type

-       1800~2500cc

CHRA Size:

-       TD05H-16G6

Wheel spec

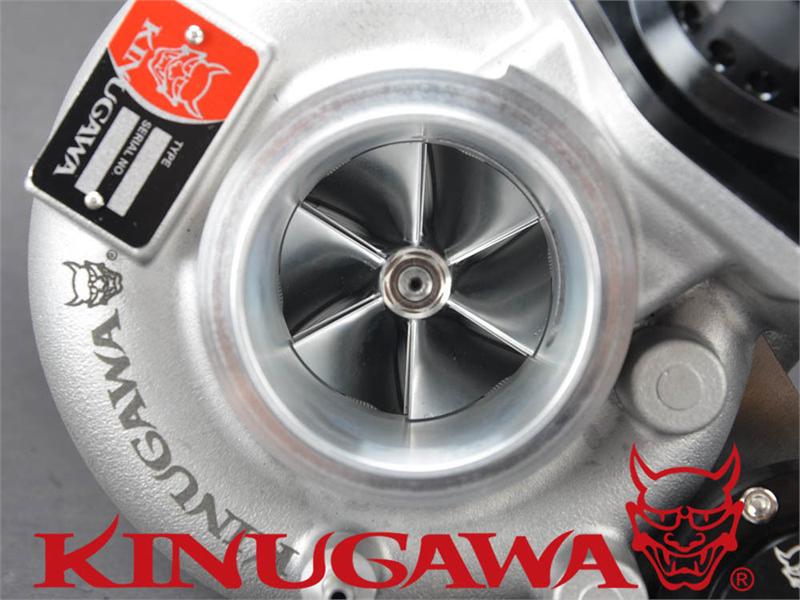

-       Comp. wheel: 48.3 / 68 mm (EVO3 -16G Wheel)

-       Turbine wheel: 55.8 / 49.1 mm (TD05H Inconel)

Compressor

Housing

-       A/R .57

-       Cover Inlet OD: 60mm / 2.4”

-       Cover Outlet : OD 50.5mm / 2”

Turbine Housing

AR

-       8cm / AR57 T3 Internal Gate Turbine Housing

Bearing Type

-       Journal Bearing

-       KAMAK Performance Thrust Bearing Kit

Cooling Type

-       Oil and Water-Cooled

Actuator

Pressure

-       1.0 Bar / 15 psi

-       0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it.

-       Actuator position can be 360 Deg moved easily.

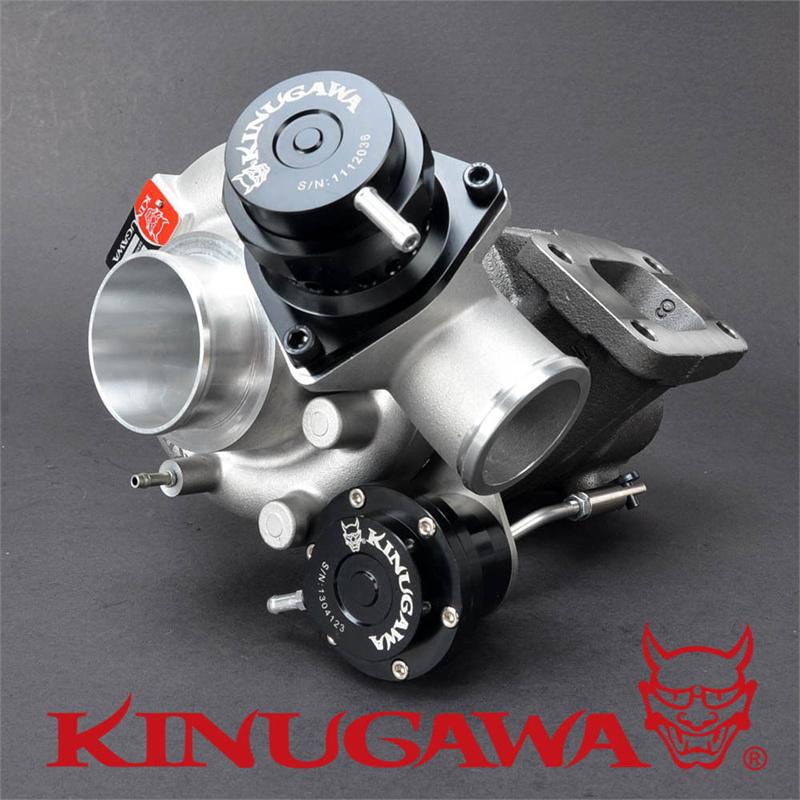

Blow Off Valve

-       5~ 15 psi Green Spring is installed on this BOV.

-       Yellow Spring 15~23 Psi and Blue Spring 23~30 Psi are available on our ebay shop. We will combine shipping if you needed.

Max Hp

300~450HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

Kit Includes

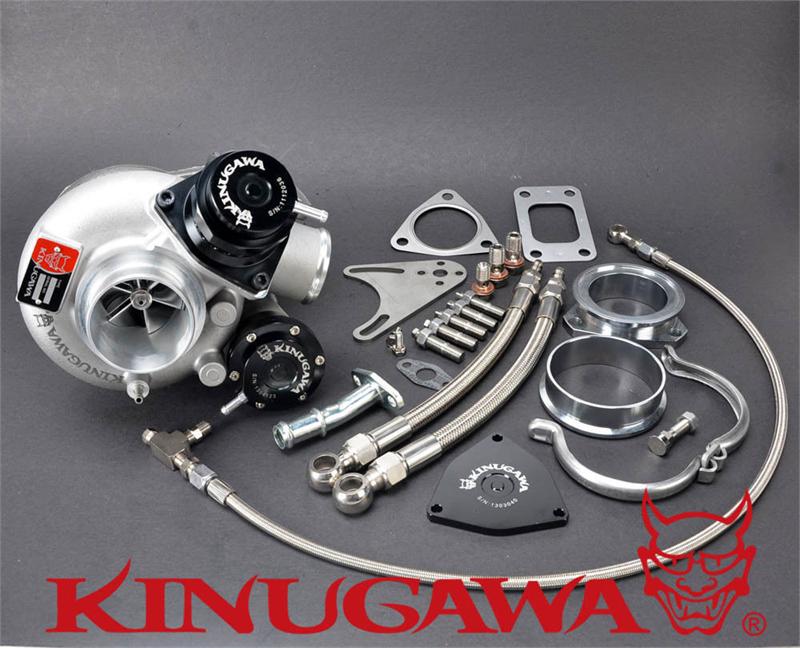

Everything shown on first picture is included.

Made By

Kinugawa Turbo

Warranty

One Year
