Kinugawa Billet Turbocharger 2.4" TD06SL2-20G & Blow Off Valve & 8cm T25 Housing

Product Information

Item Name

Kinugawa TD06SL2-20G Turbocharger with 3” Anti Surge Compressor Housing, Blow Off Valve  and  T25 8cm Turbine Housing

P/N.

  321-02001-217

Application

-       Universal Type

-       1800~2500cc

CHRA Size:

-       TD06SL2-20G

Wheel spec

Compressor wheel: 52.5 / 68 mm (20G Wheel)

Turbine wheel: 54.1 / 61 mm (TD06SL2 / 11 Blades Inconel Wheel)

Turbine Housing AR

8cm / AR57 T25 Internal Gate Turbine housing

Compressor Housing

-       A/R .57

-       Cover Inlet OD: 60mm / 2.4”

-       Cover Outlet : OD 50.5mm / 2”

Bearing Type

-       Journal Bearing

-       KAMAK Performance Thrust Bearing Kit

Cooling Type

-       Oil and Water-Cooled

Actuator Pressure

-       1.0 Bar / 15 psi

-       0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available, please contact us if you need it.

Max Hp

300~450HP

Turbo Boost Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested Boost

1.5 bar / 22 Psi

Product Situation

Brand New

Kit Includes

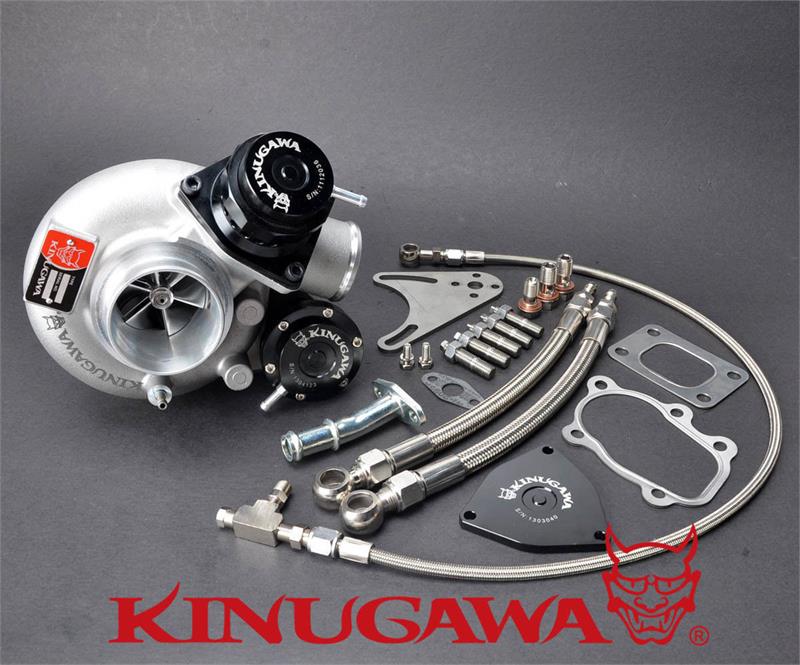

Everything shown on first picture is included.

Made By

Kinugawa Turbo

Warranty

One Year
