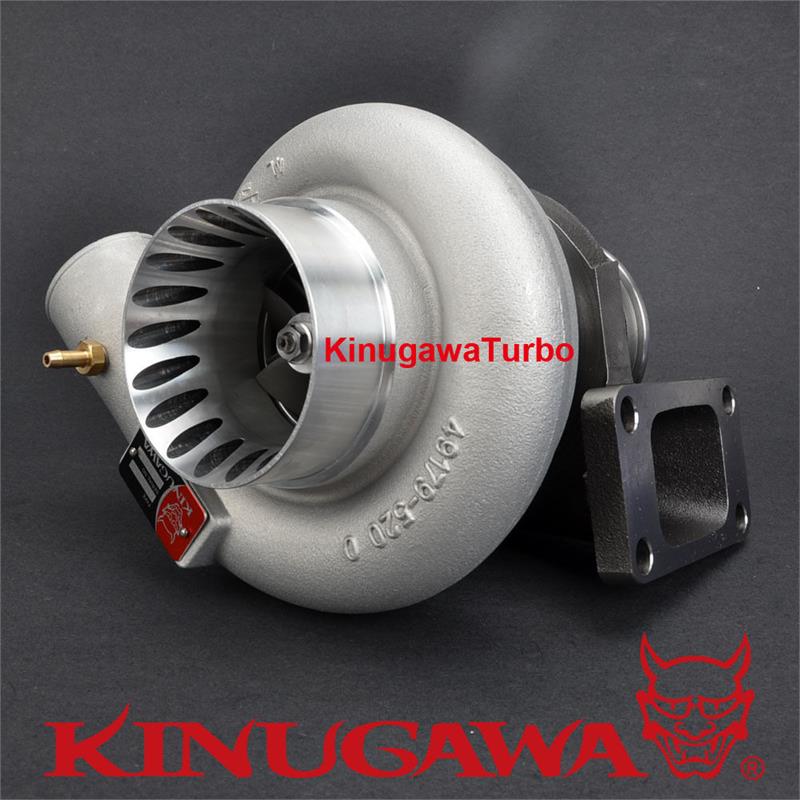

Kinugawa Billet Turbocharger 3" Anti-Surge TD05H w/ Garrett 60-1 + T3/8cm/V-Band

Kinugawa Billet TD05H Turbocharger with Garrett 60-1 Compressor Wheel + 3” A/R60 Anti-Surge Cover / T3 Flanged 8cm Turbine Housing

Item Name

Kinugawa Billet TD05H Turbocharger with Garrett Billet 76mm 60-1 Wheel + 3” Anti-surge compressor housing, Billet Compressor wheel and T3 / 8cm V-Band Turbine Housing.

P/N.

321-02001-046

Application

- Universal Type

- 1800~2500cc

CHRA Size:

- TD05H with Garrett 60-1 Wheel

Wheel spec

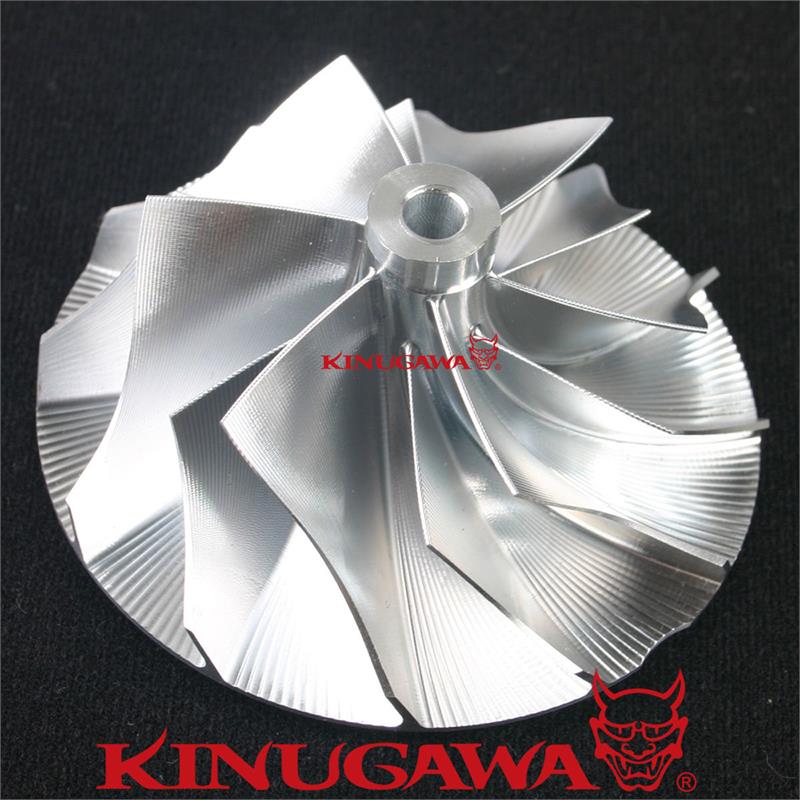

Compressor wheel: 59 / 76 mm (60-1 Billet Wheel)

Turbine wheel: 55.8 / 49.1 mm (TD05H Inconel Wheel)

Compressor

Housing

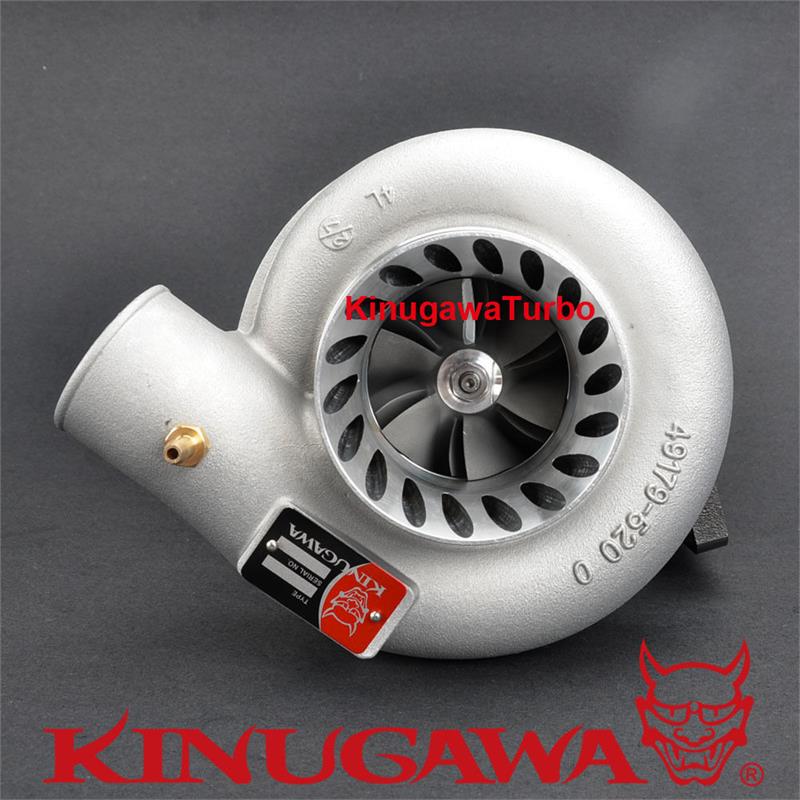

AR60 / 3” Inlet / 2” Outlet

Turbine Housing

AR

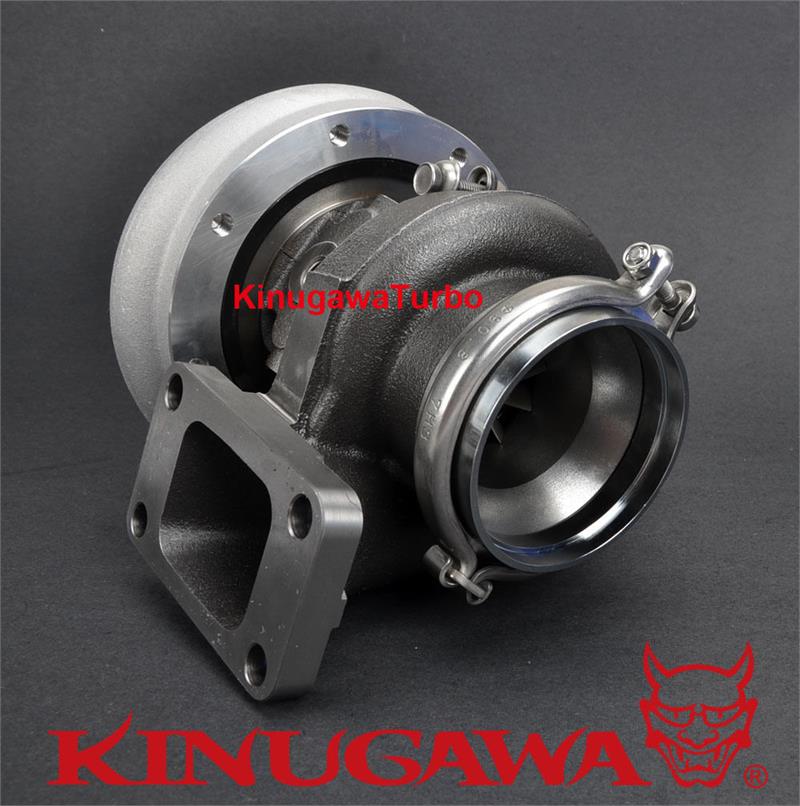

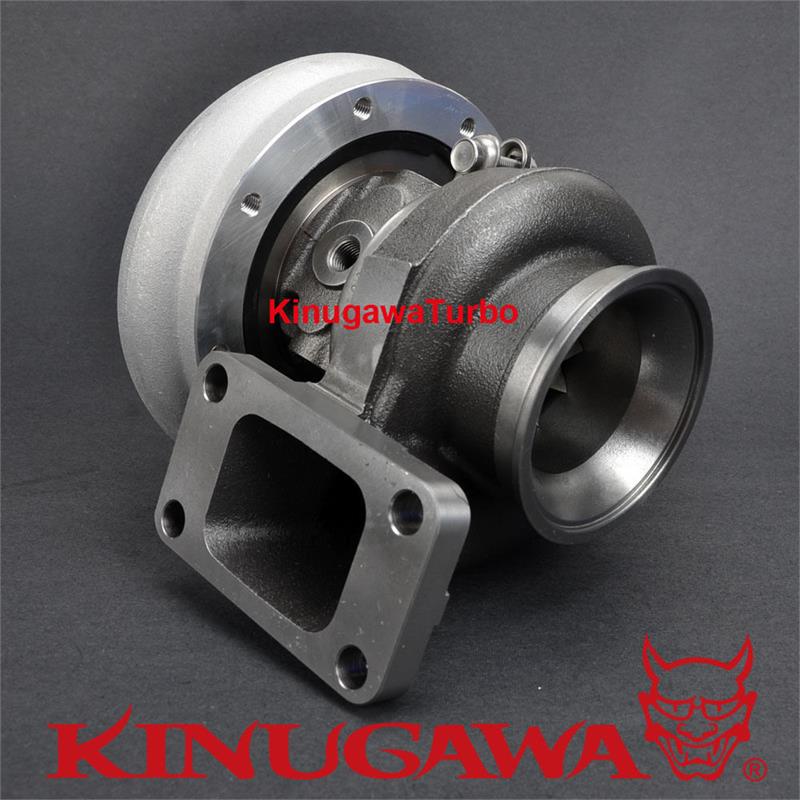

8cm / AR61 T3 Flanged External Gated turbine housing

Bearing Type

Journal Bearing / KAMAK Performance Thrust Bearing Kit

Cooling Type

Oil and Water-Cooled

Max Hp

300~400HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

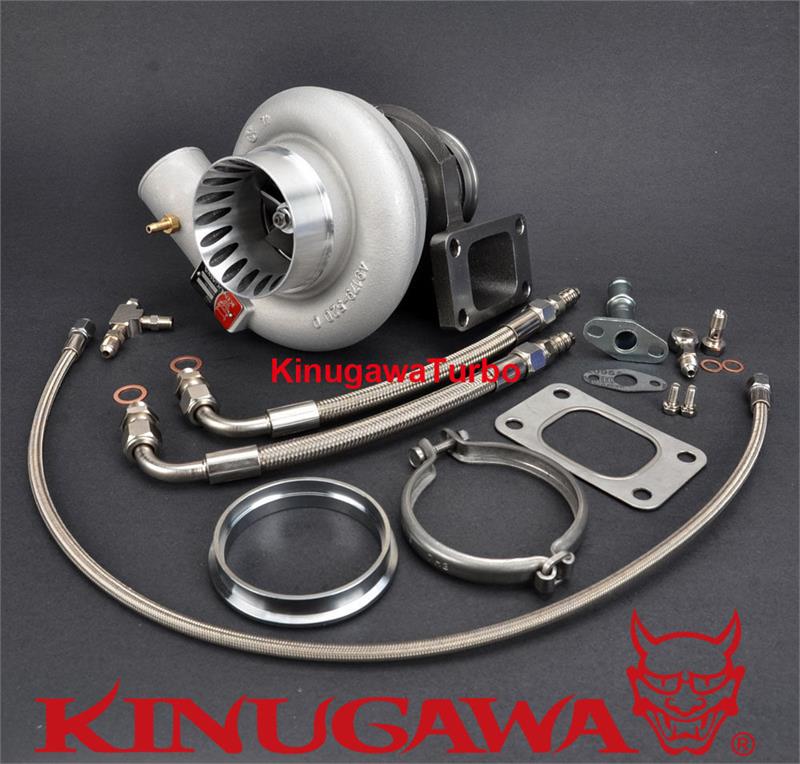

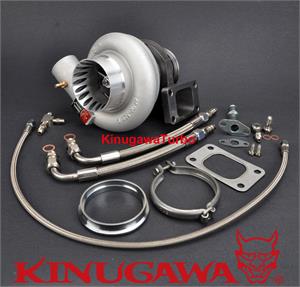

Kit Includes

1 x Oil feed line kit ( 70cm Braided Line )

1 x Oil drain pipe kit

1 x T3 Turbine Inlet Gasket

2 x 20cm 6AN Water Line Kit

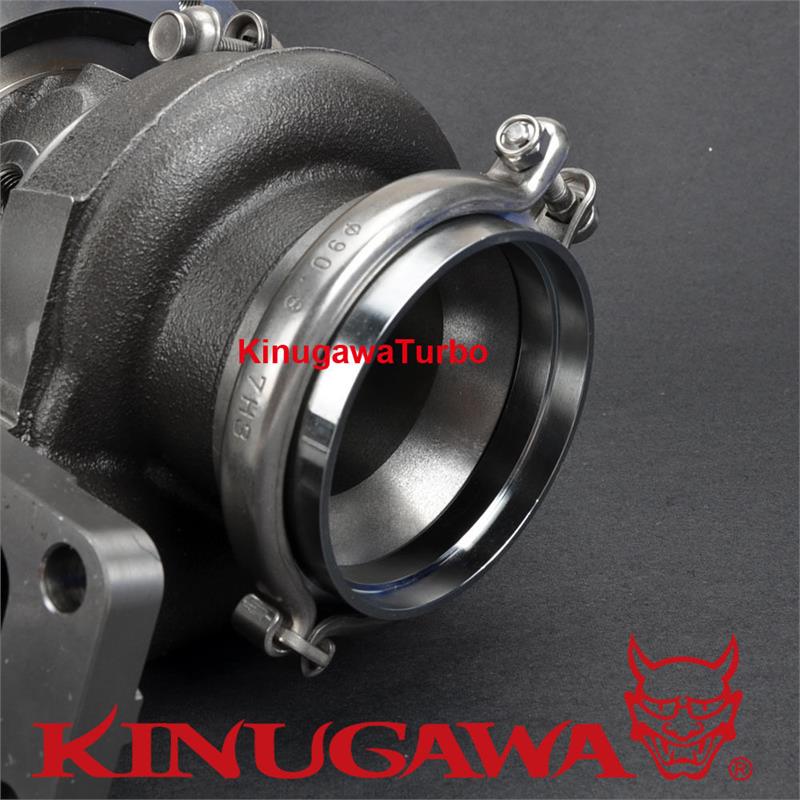

1 x V-Band Pipe Adapter

(Everything shown on picture included)

Upgraded By

Kinugawa Turbo

Warranty

One Year
