Kinugawa Billet Turbocharger 3" Anti-Surge TD06SL2-18G w/ T3/8cm/V-Band External

Kinugawa TD06SL2-18G Billet Turbocharger with

3” A/R 60 Anti-Surge Cover / T3 Flanged 8cm Turbine Housing

Item Name

Kinugawa TD06SL2-18G Billet Turbocharger with 3” Anti-Surge Cover and 8cm V-Band Turbine Housing

P/N.

321-02001-049

Application

- Universal Type

- 1800~2500cc

CHRA Size:

- TD06SL2-18G

Wheel spec

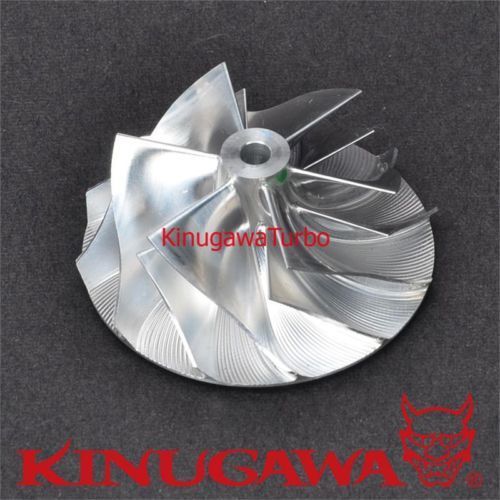

Compressor wheel: 50.3 / 68 mm (18G Billet Wheel)

Turbine wheel: 54.1 / 61 mm (TD06SL2 / 11 Blades Inconel Wheel)

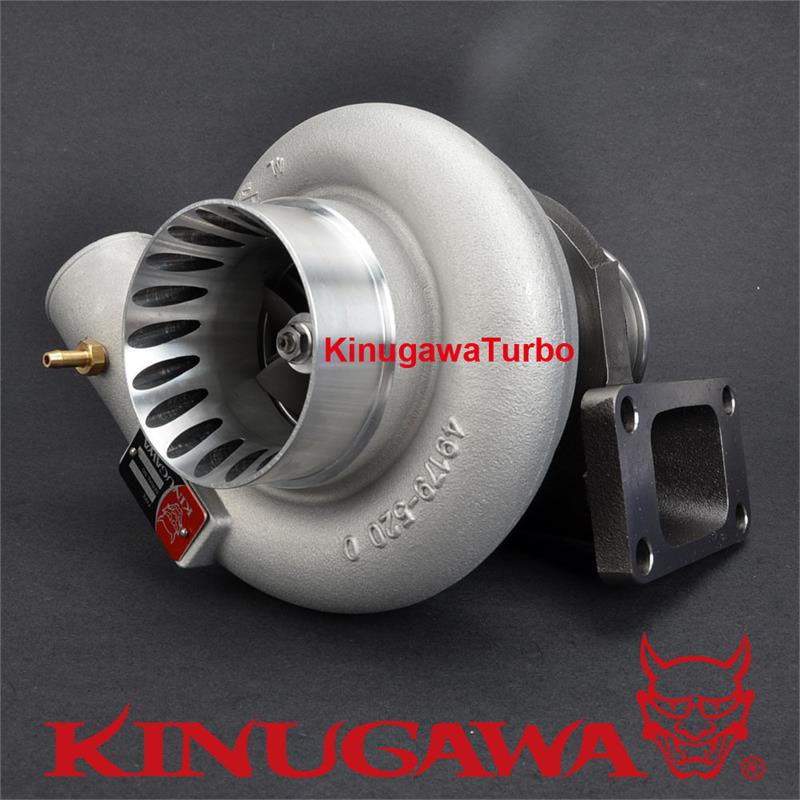

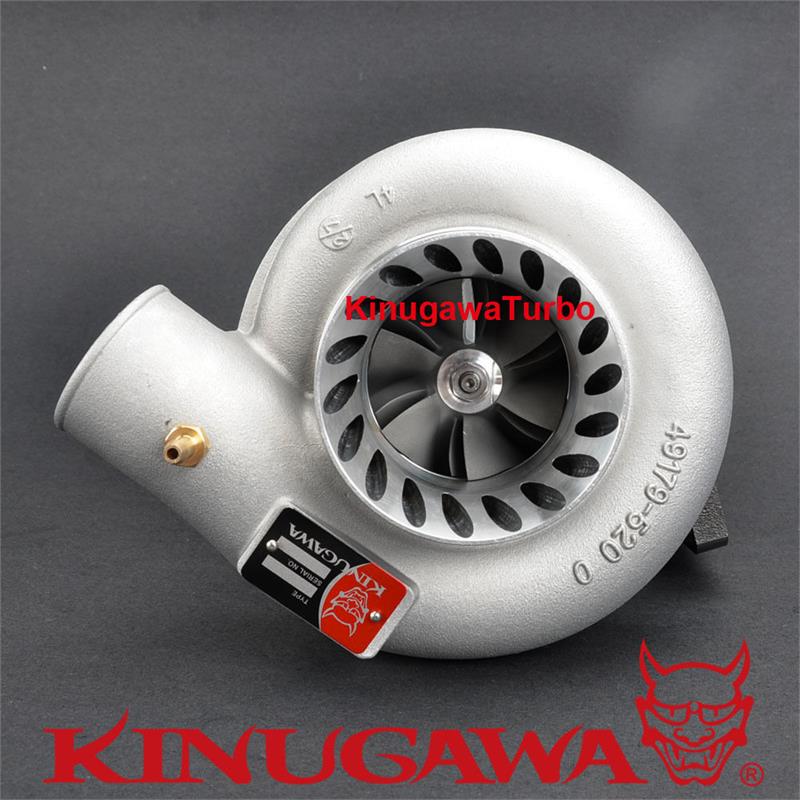

Compressor

Housing

AR60 / 3” Inlet / 2” Outlet

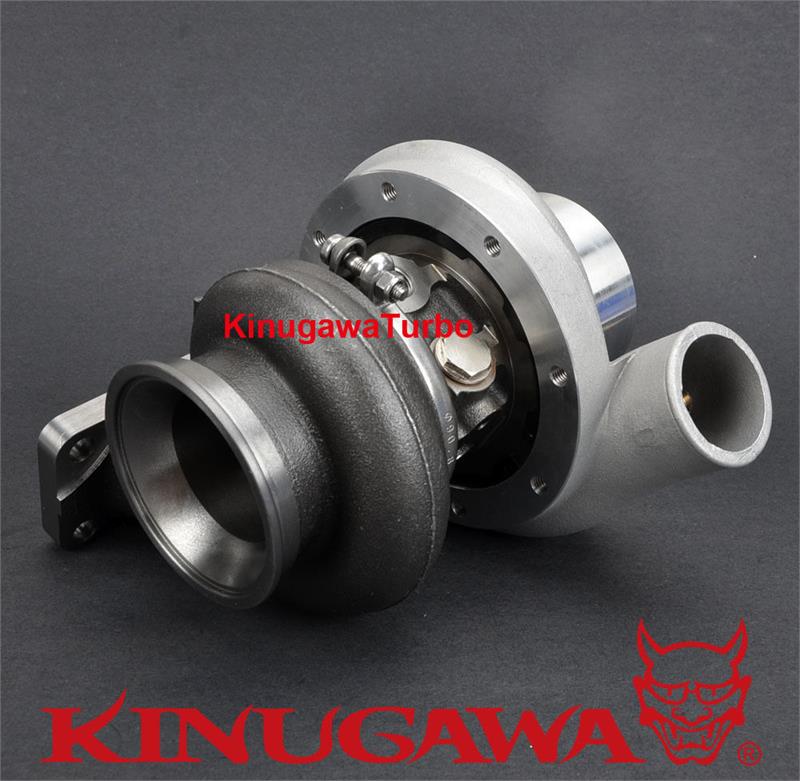

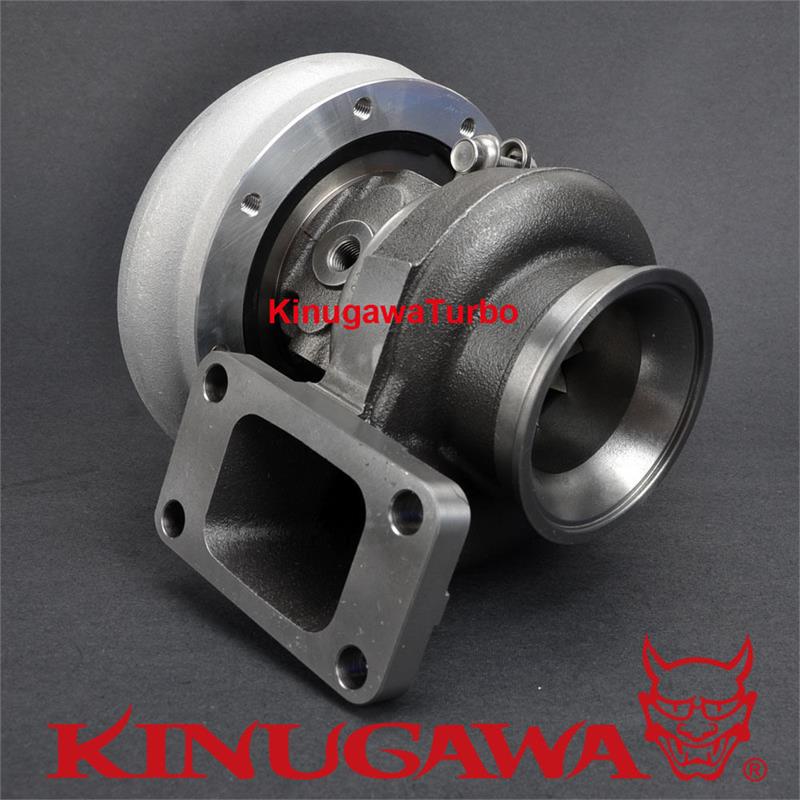

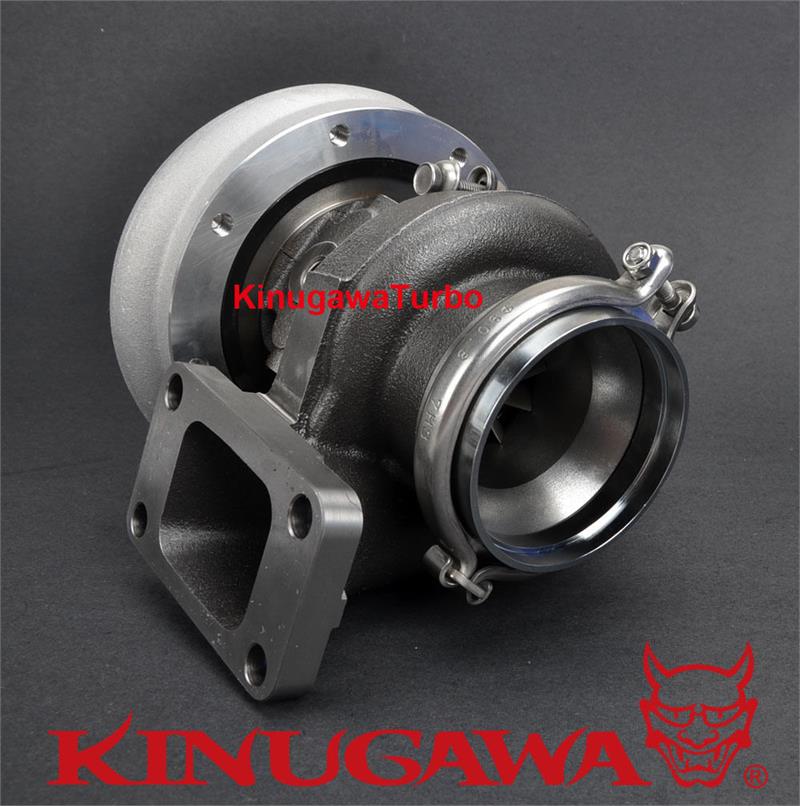

Turbine Housing

AR

8cm / AR61 T3 Flanged External Gated turbine housing

Bearing Type

Journal Bearing / KAMAK Performance Thrust Bearing Kit

Cooling Type

Water-Cooled

Max Hp

300~400HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

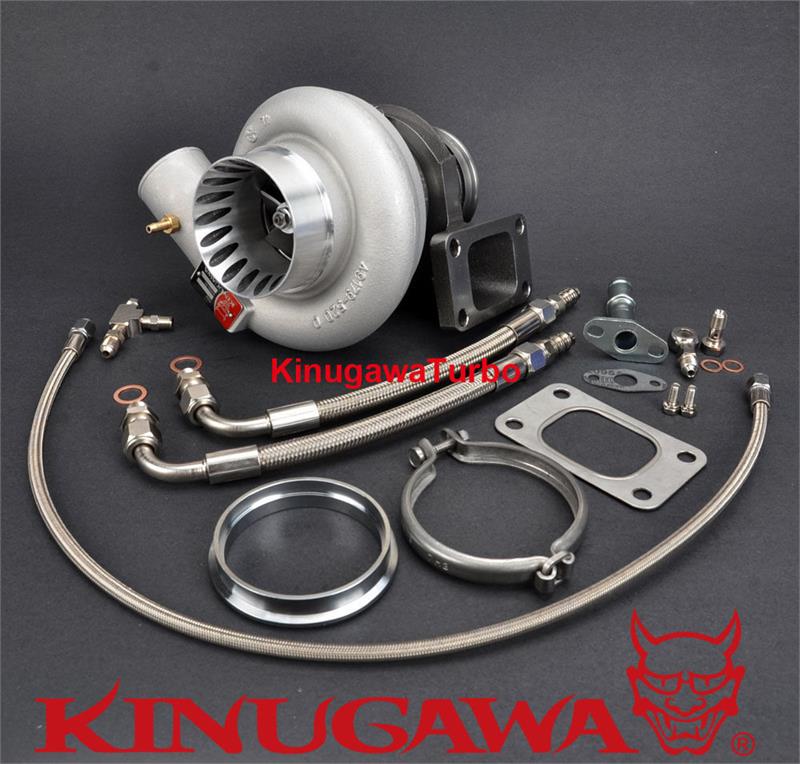

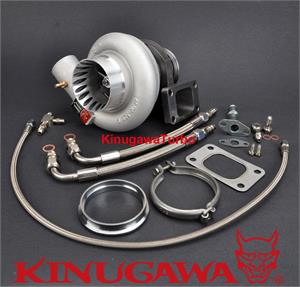

Kit Includes

1 x Oil feed line kit ( 70cm Braided Line )

1 x Oil drain pipe kit

1 x T3 Turbine Inlet Gasket

2 x 20cm 6AN Water Line Kit

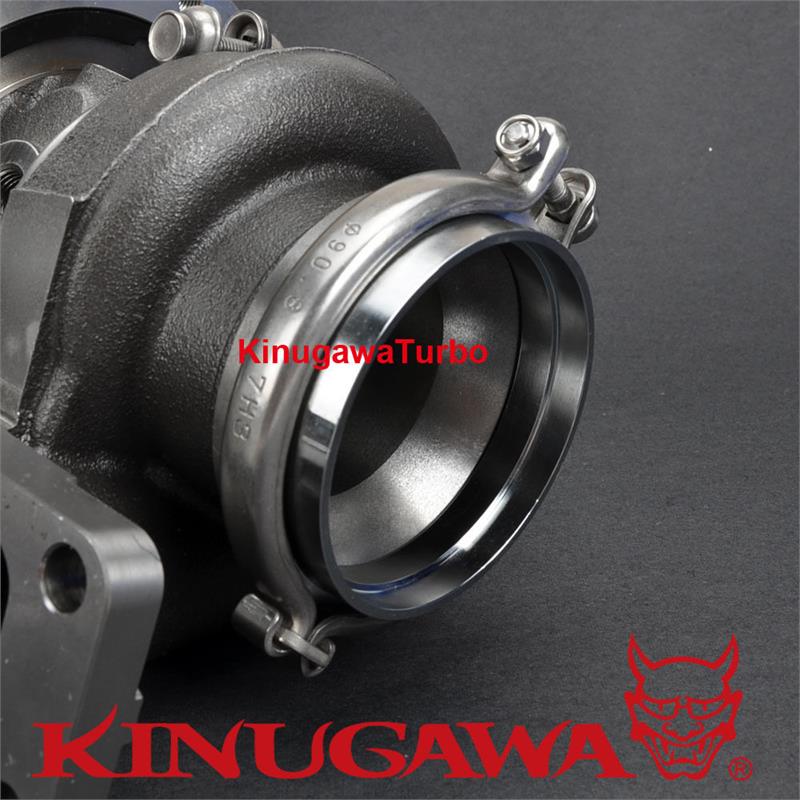

1 x V-Band Pipe Adapter

(Everything shown on picture included)

Upgraded By

Kinugawa Turbo

Warranty

One Year
