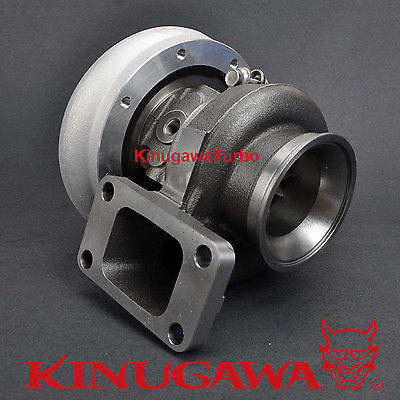

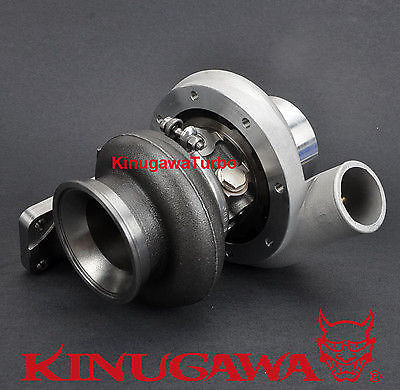

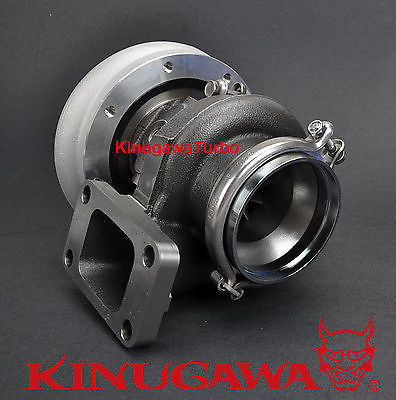

Kinugawa Billet Turbocharger 3" Anti-Surge TD06SL2-20G w/ T3/8cm/V-Band External

Product Information

Item Name

Kinugawa T06SL2-20G Turbocharger with 3” Anti-surge cover, 20G Billet Compressor Wheel and 8cm V-Band Turbine Housing

P/N.

 321-02001-060

Application

- Universal Type

- 1800~2500cc

CHRA Size:

- TD06SL2-20G

Wheel spec

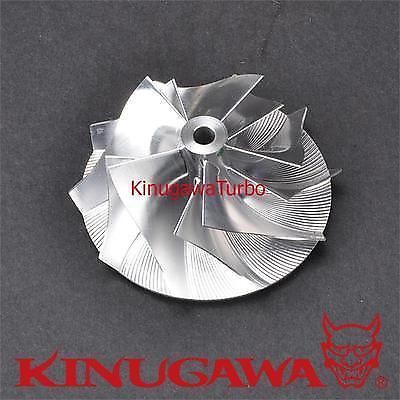

Compressor wheel: 52.5 / 68 mm (20G Billet Wheel)

Turbine wheel: 54.1 / 61 mm (TD06SL2 / 11 Blades Inconel Wheel)

Compressor

Housing

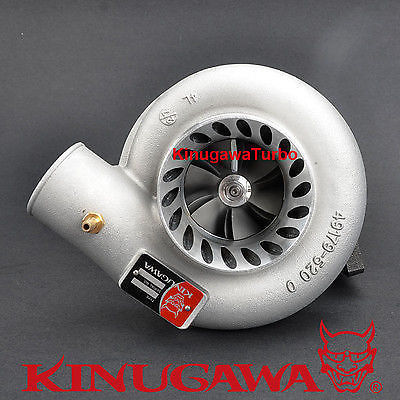

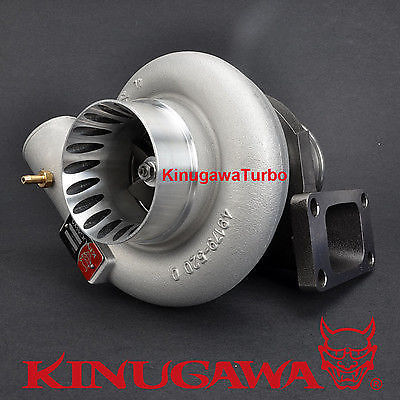

AR60 / 3” Inlet / 2” Outlet Anti-Surge Cover

Turbine Housing

AR

8cm / AR61 T3 Flanged External Gated turbine housing

Bearing Type

Journal Bearing / KAMAK Performance Thrust Bearing Kit

Cooling Type

Oil and Water-Cooled

Max Hp

300~450HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

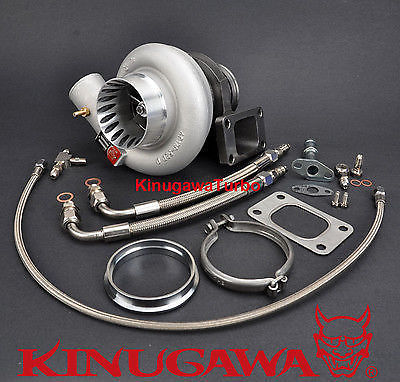

Kit Includes

1 x Oil feed line kit ( 70cm Braided Line )

1 x Oil drain pipe kit

1 x T3 Turbine Inlet Gasket

2 x 20cm 6AN Water Line Kit

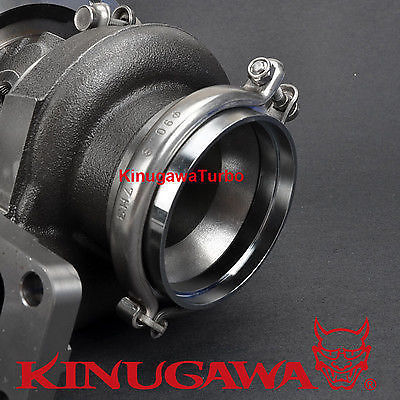

1 x V-Band Pipe Adapter

(Everything shown on picture included)

Upgraded By

Kinugawa Turbo

Warranty

One Year
