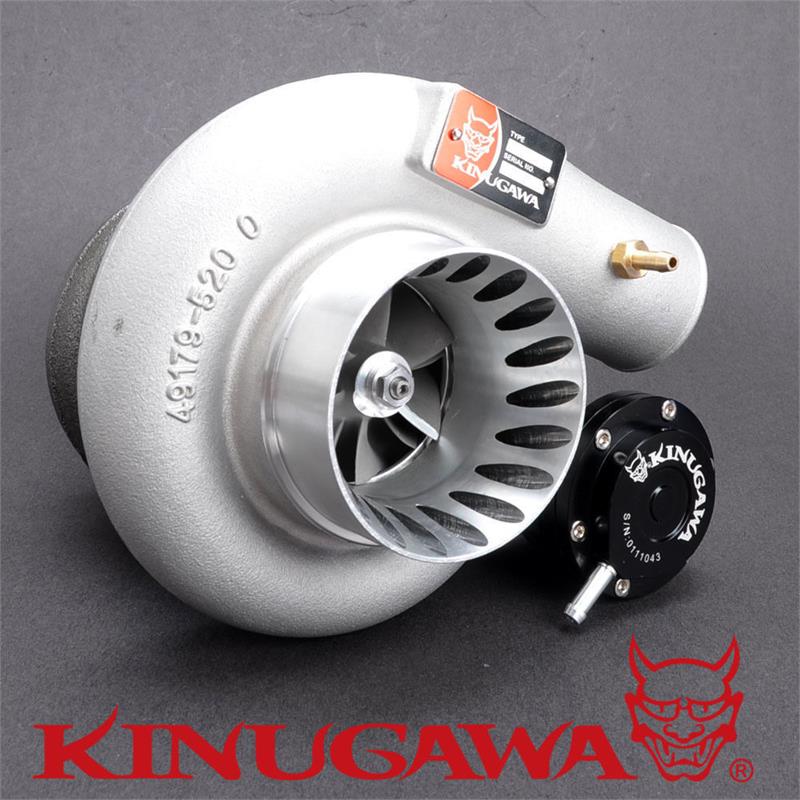

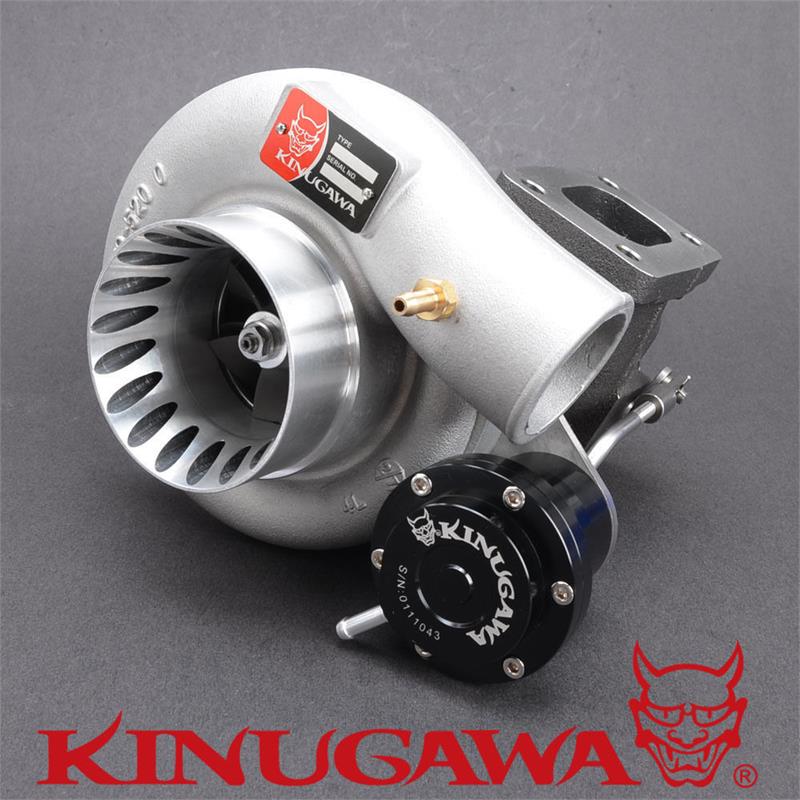

Kinugawa Billet Turbocharger 3" Anti Surge SR20DET SILVIA S14 S15 TD06SL2-25G

Product Information

Item Name

NISSAN SILVIA SR20DET S14 S15 TD06SL2-25G Turbocharger with 3" Anti Surge Cover and Billet Compressor Wheel

Kinugawa P/N.

321-02035-044

Application

NISSAN SR20DET SILVIA S14 S15

Replace Turbo

Replace and upgrade stock Garrett T28 turbo.

Low Mount.

Cover inlet and outlet pipe needs to be modified.

CHRA Size:

-       TD06SL2-25G

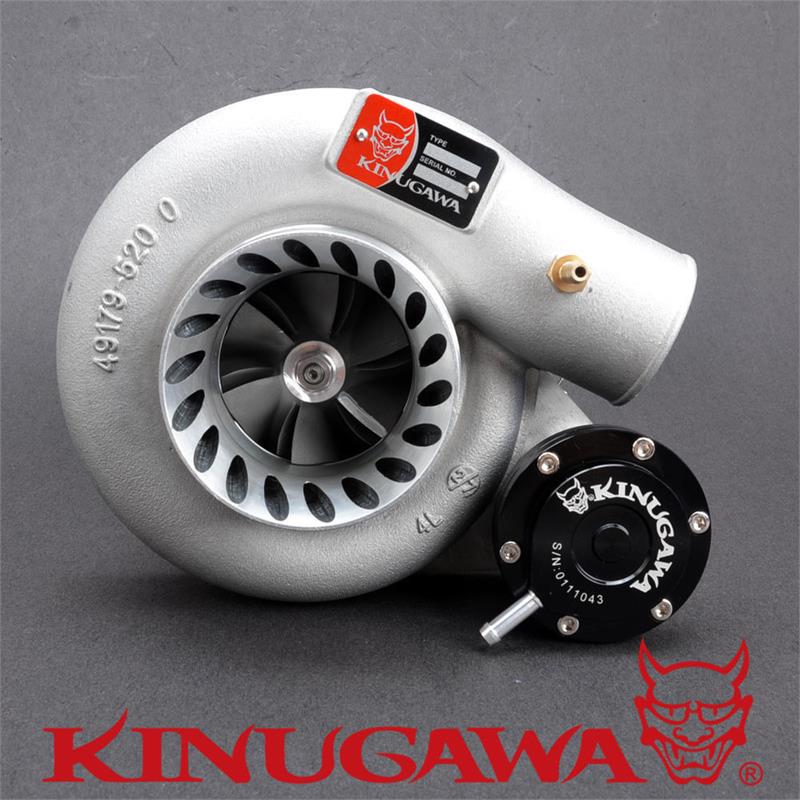

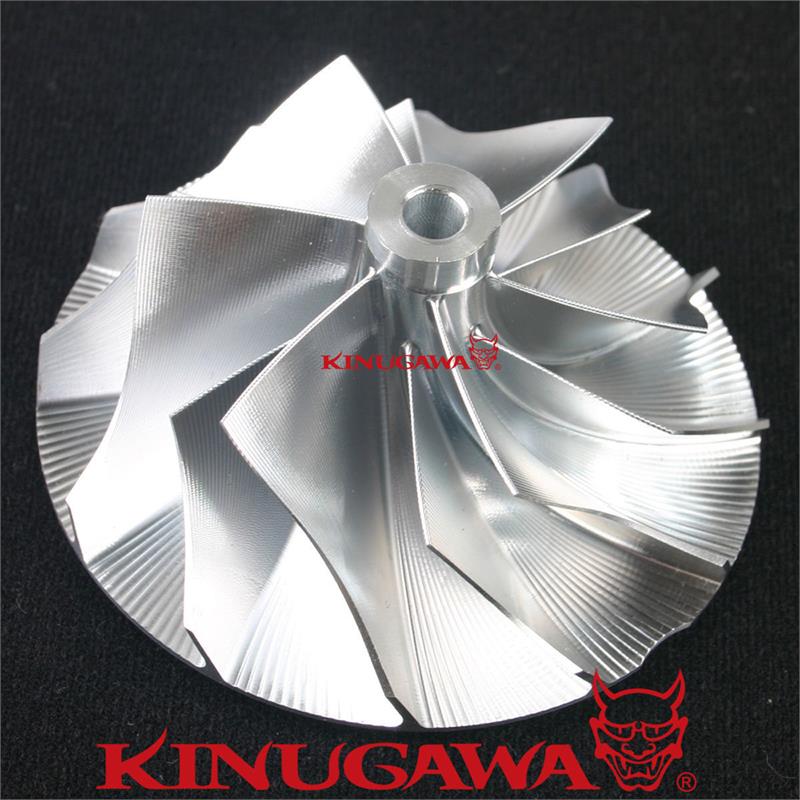

-       Compressor Wheel: 60.5 / 78mm (Billet Compressor Wheel)

-       Turbine Wheel: 54.1 / 61 mm ( 11 Blade TD06SL2 Turbine Wheel)

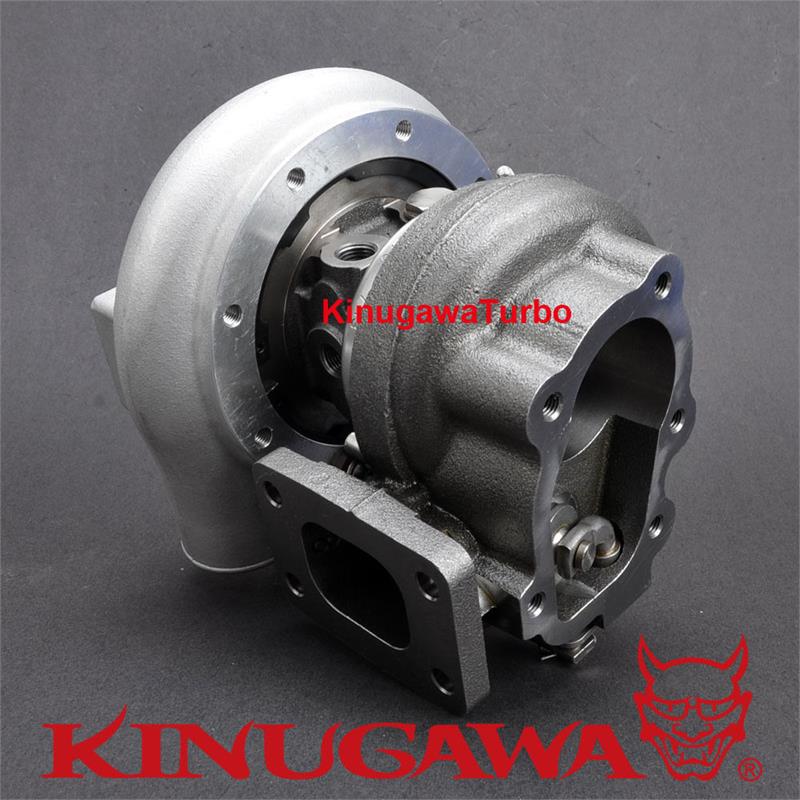

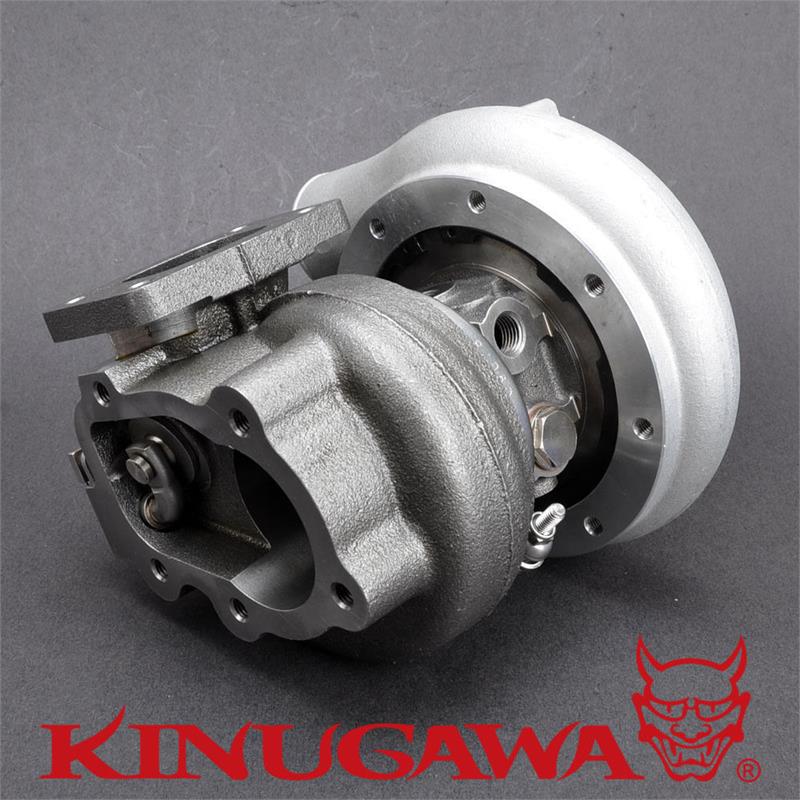

Turbine Housing

AR

8 cm^2 Ported Turbine Housing

Bearing Type

Journal Bearing

Performance Thrust Bearing Kit with larger thrust ring and flinger

Cooling Type

Oil and Water-Cooled

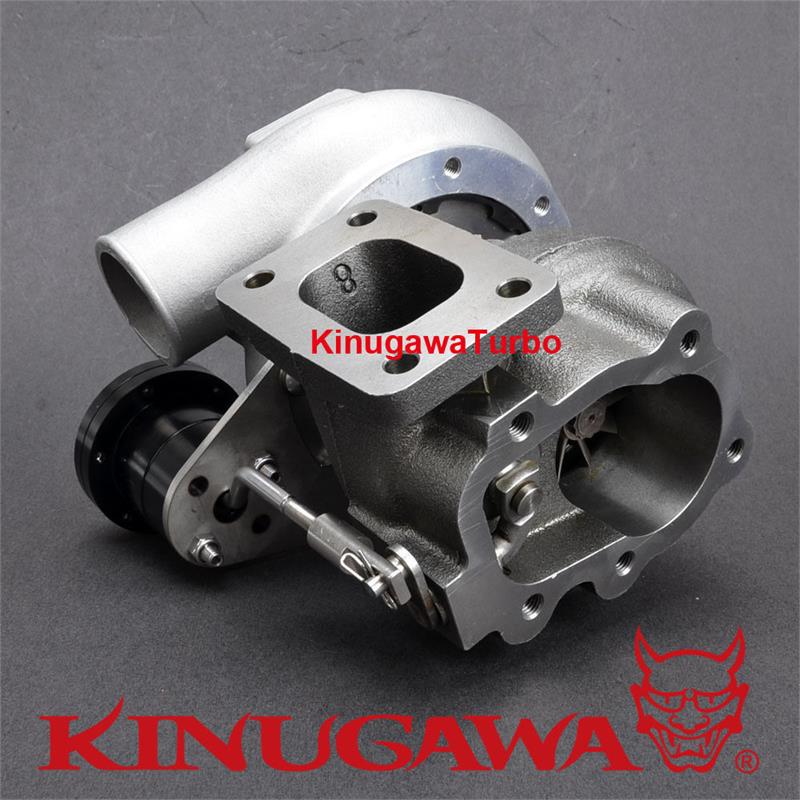

Actuato

Pressure

-1bar / 14~15 psi spring will go with this adjustable actuator.

- 0.5bar, 0.8bar, 1.0bar, 1.2bar, 1.5bar, 1.8bar and 2.0bar spring is available on our ship.

Max Hp

450~550 HP

Turbo Boost

Limit

2.8 Bar ( Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 Bar

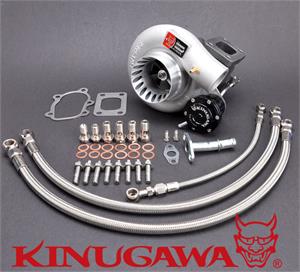

Kit Includes

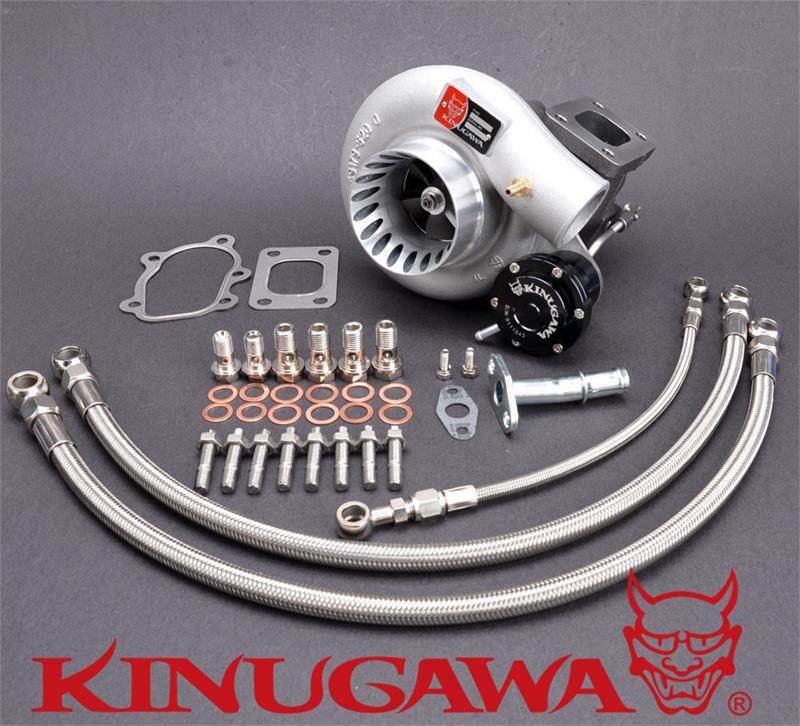

Everything shown on first picture

Product

Situation

Brand new in box

Supplier

Kinugawa Turbo

Warranty

One year
