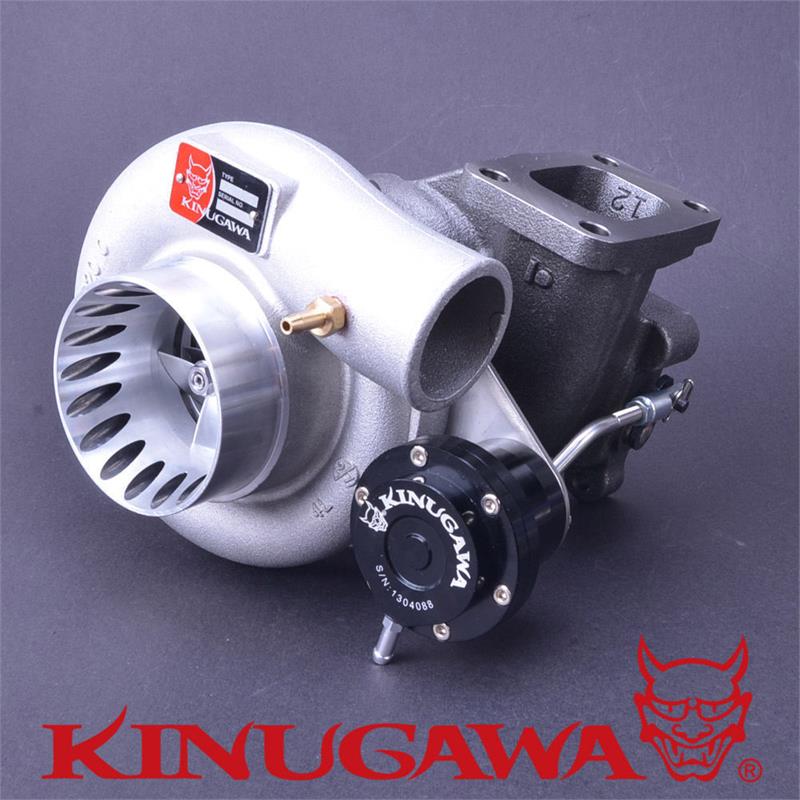

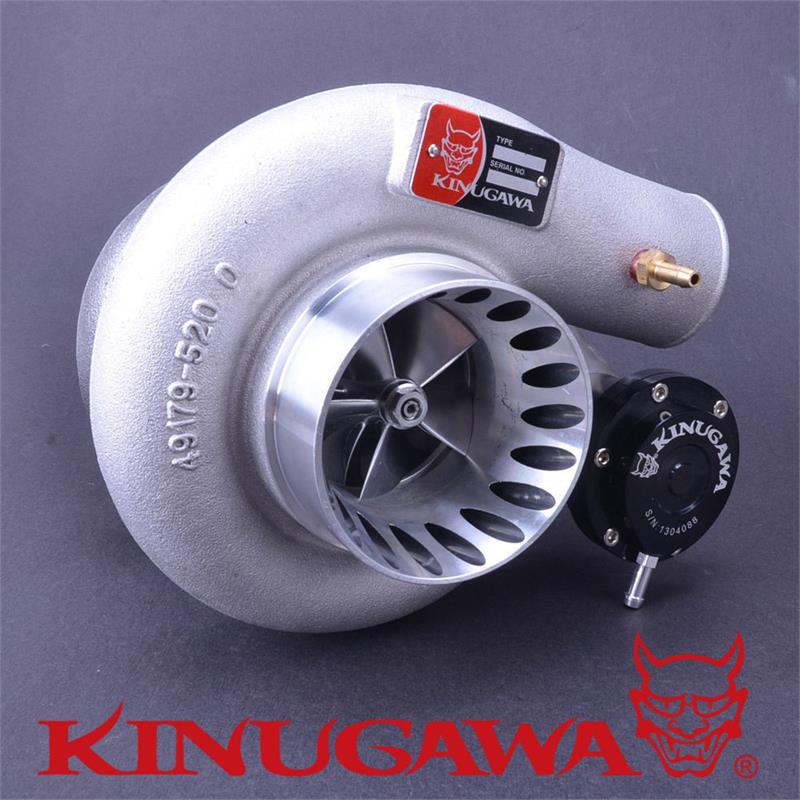

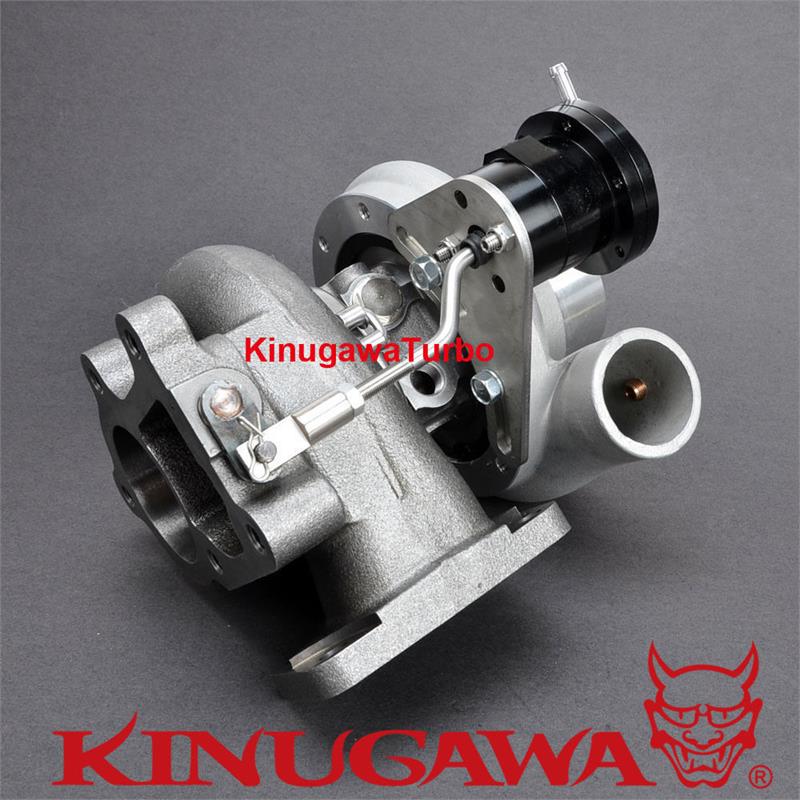

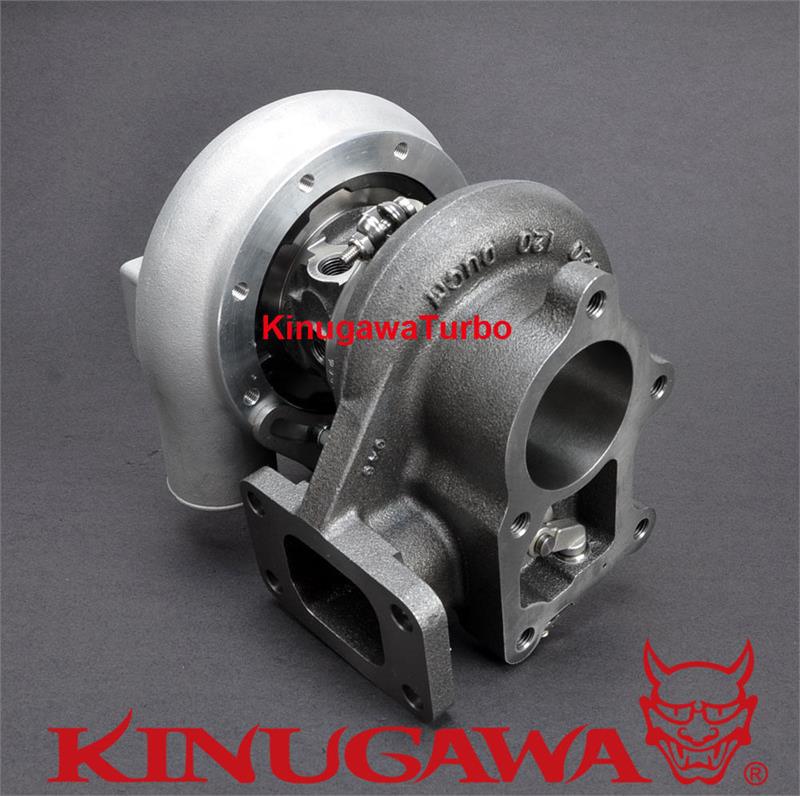

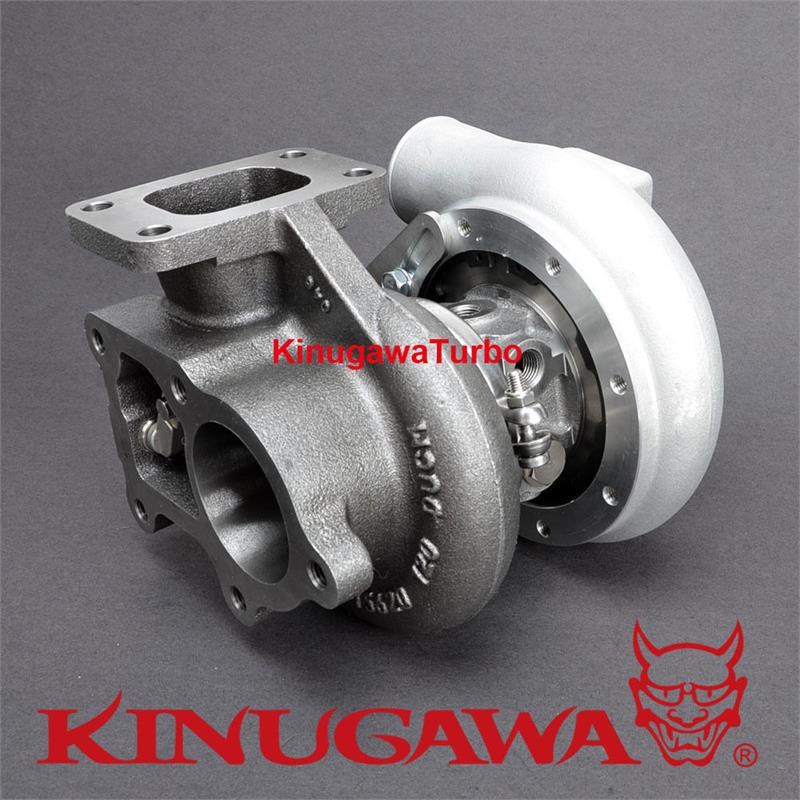

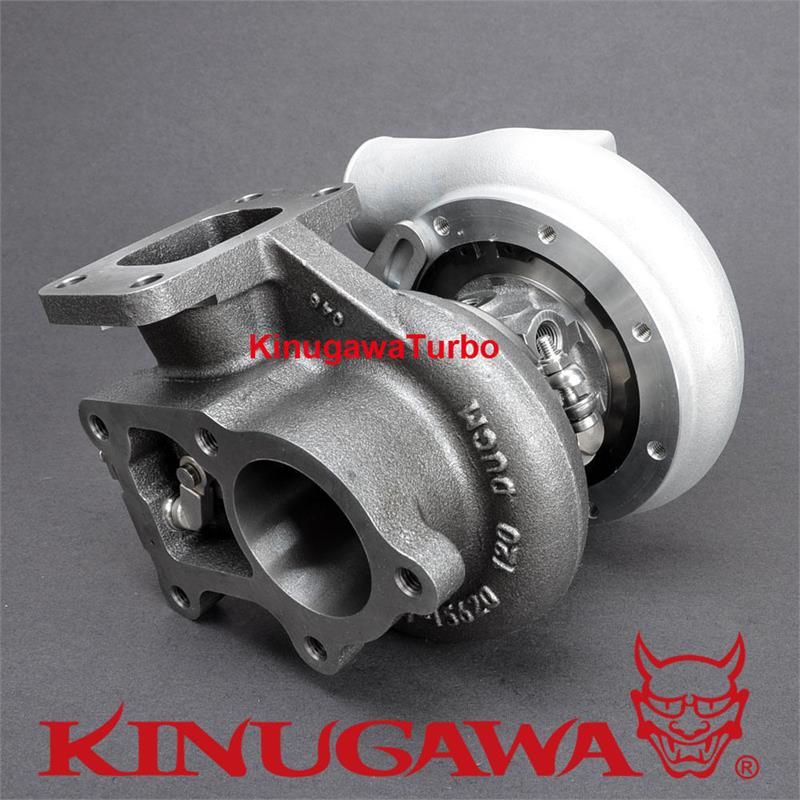

Kinugawa Billet Turbocharger 3" Anti Surge TD06H-25G w/ 12cm T3 Internal Gate
Item Number: 301-02001-206
* Whole number only
|
|
Product Information
|
Item Name
|
Kinugawa TD06H-25G Billet Turbocharger with 3” Anti-surge Cover & 12cm T3 Internal Gate Turbine Housing
|
P/N.
|
301-02001-206
|
Application
|
- Universal Type
- 2.5L~4L
- 450~600 BHP
|
CHRA Size:
|
- TD06H-25G
|
Wheel spec
|
Compressor wheel: 60.5 / 78 mm (25G Billet Wheel)
Turbine wheel: 58.8 / 67.2 mm (TD06H 11 Blade Inconel Wheel)
|
Compressor
Housing
|
AR70 / 4” Inlet
|

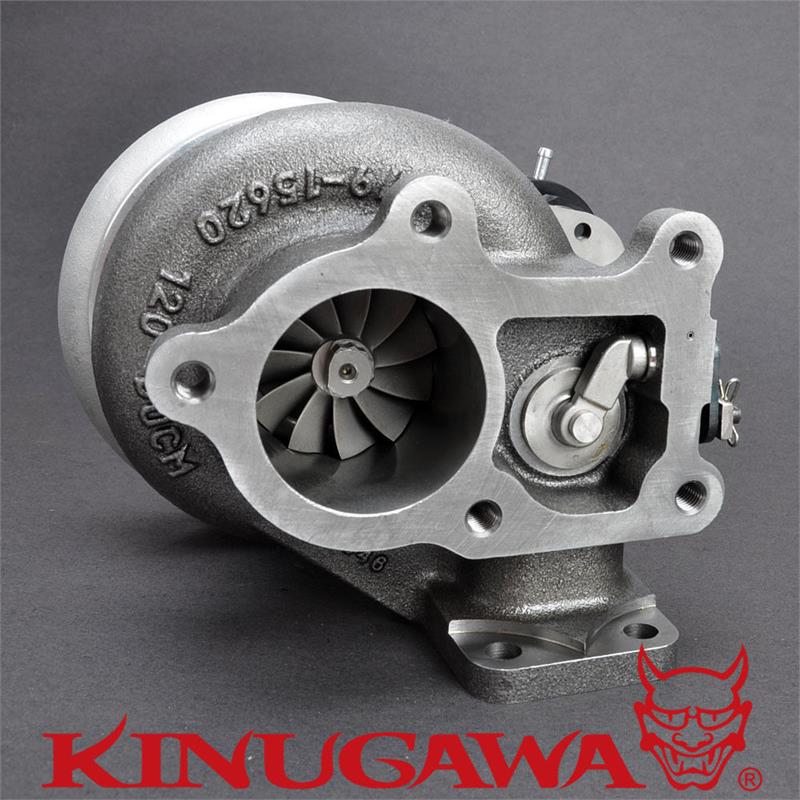

Turbine Housing
AR
|
12cm / A/R .89 T3 Internal Gate External Gated Turbine Housing
|
Bearing Type
|
- Journal Bearing
|
Cooling Type
|
- Oil & Water-Cooled
|
Max Hp
|
450~600 HP
|
Turbo Boost
Limit
|
2.8 Bar (Based on Performance bearing kit with larger thrust bearing )
|
Suggested
Boost
|
1.5 bar / 22 Psi
|
Actuator Pressure
|
- 1.0bar spring will go with this actuator.
- We sell 0.5bar, 0.8bar, 1.0bar, 1.3bar, 1.5bar, 1.8bar and 2.0bar spring on our shop and can combine shipping.
|
Product
Situation
|
Brand New
|

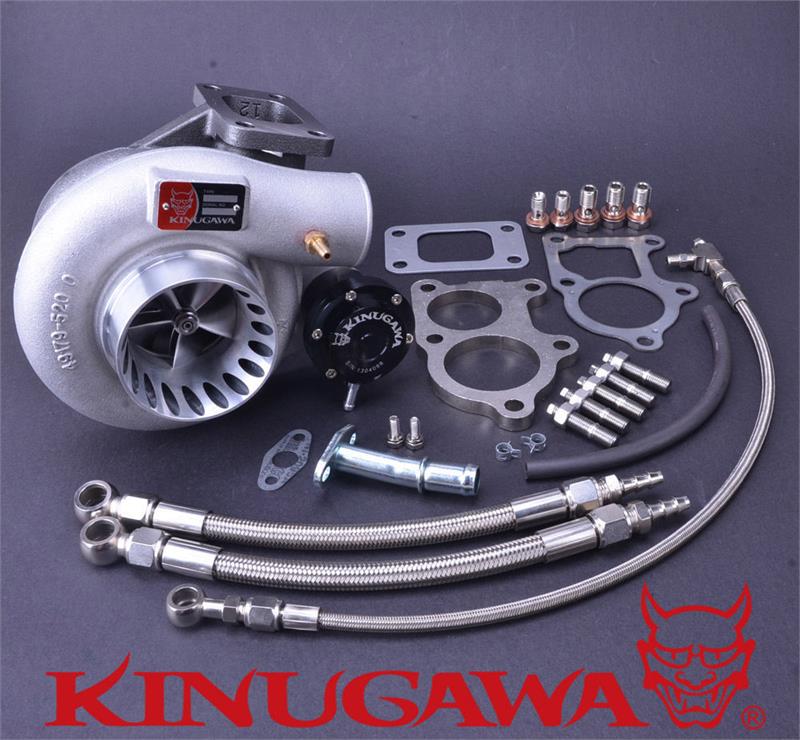

Kit Includes
|
Everything shown on picture included)
|
Upgraded By
|
Kinugawa Turbo
|
Warranty
|
One Year
|
|
|
|
|
