Kinugawa Billet Turbocharger 3" Anti Surge TD06SL2 + Garrett 60-1 T25/8cm/5 bolt

KINUGAWA TD06SL2 Turbo with Garrett 60-1 comp. wheel

( 3” Anti Surge Cover & Billet Wheel & 8cm T25 Flange Turbine Housing)

Item Name

3” Kinugawa TD06SL2 / Garrett 60-1 Anti Surge Turbocharger with Billet Compressor Wheel + 8cm T518Z SR20DET Turbine Housing and Adjustable Actuator

P/N.

321-02001-082

Application

1.8~2.5L engine / 350~450 HP

CHRA Size:

Compressor wheel: 60 / 76 mm (Billet Wheel)

Turbine Wheel: 54.1 / 61 mm ( TD06SL2)

Turbine

Housing

GREDDY / MHI T518Z SR20DET 8cm Turbine Housing ported to fit TD06SL2 / 11 blades wheel.

Bearing Type

Journal Bearing / Performance Thrust Bearing Kit with larger thrust ring and flinger

Cooling Type

Oil and Water-Cooled

Actuator

Pressure

- 1 Bar spring is installed on

this adjustable actuator.

- 0.3bar, 0.5bar, 0.8bar, 1.0bar, 1.2bar,

1.5bar, 1.8bar and 2.0bar spring is

available on our ebay shop.

Warranty

One Year

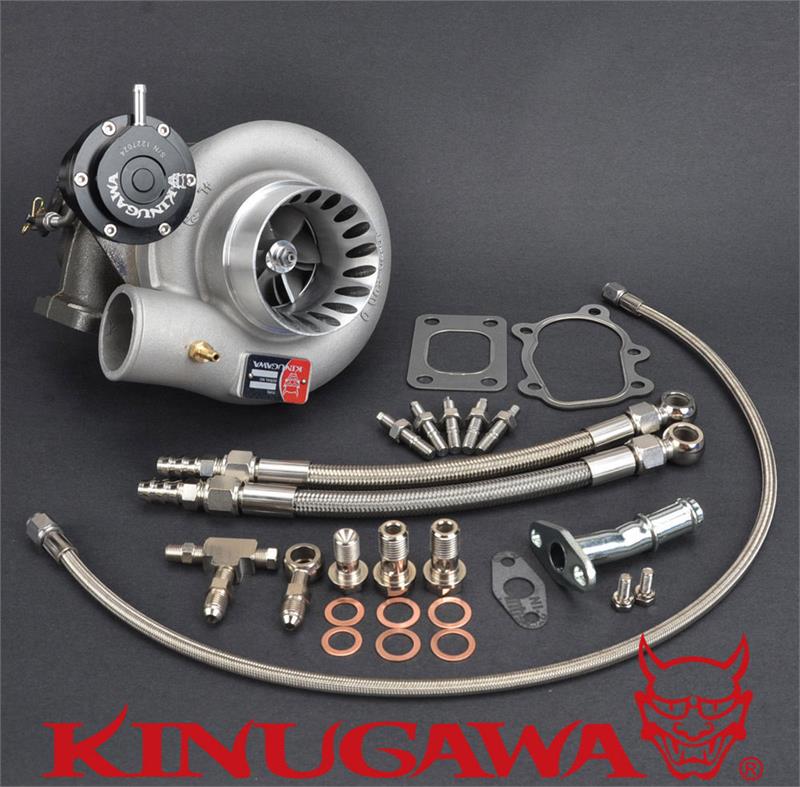

Kit Includes

everything shown on picture

Upgrade

Supplier

Kinugawa Turbo
