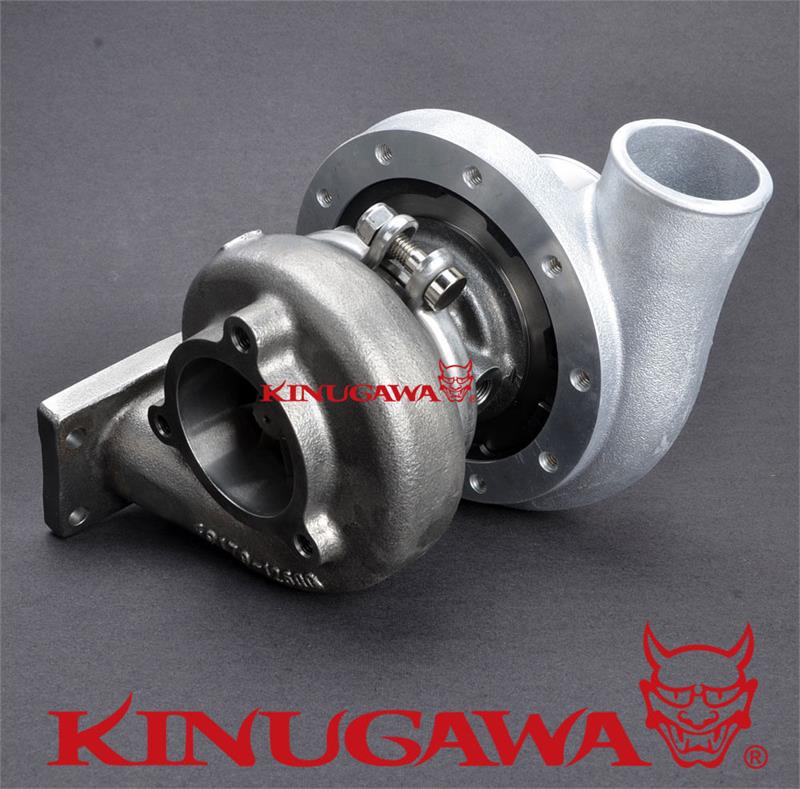

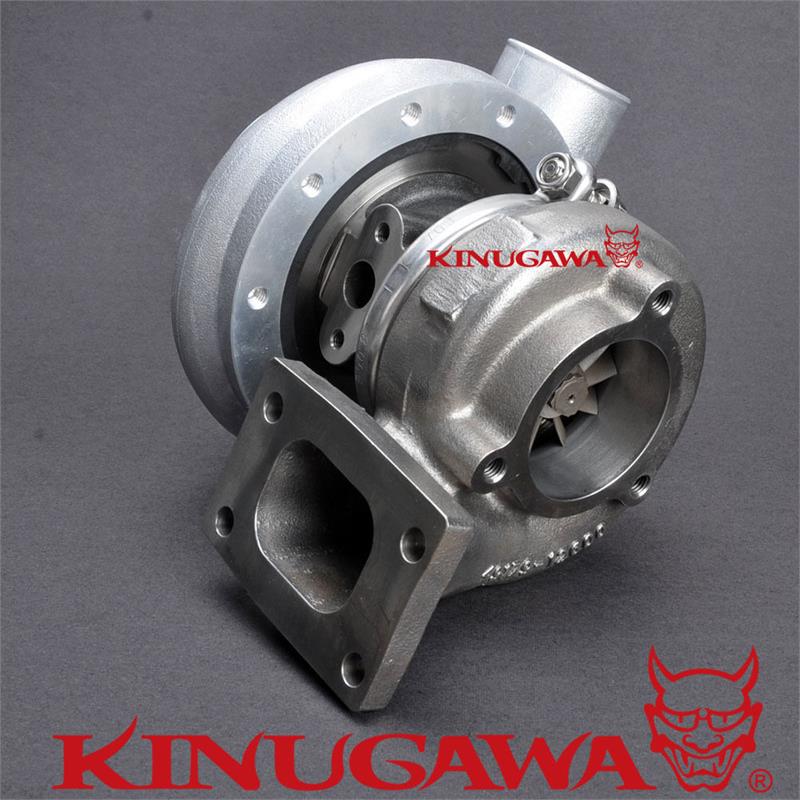

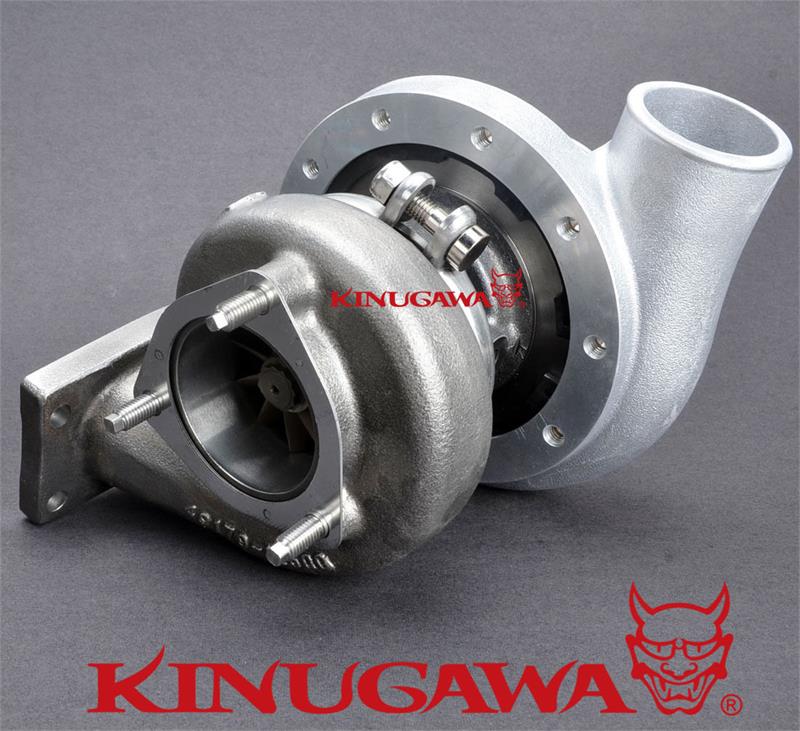

Kinugawa Billet Turbocharger 3" Non Anti-Surge TD06SL2-20G 8cm / Oil-Cooled T25

Product Information

Item Name

Kinugawa TD06SL2-20G Oil-Cooled Turbocharger with Billet Compressor Wheel + 3” Non Anti-Surge Cover and 8cm / T25 Turbine Housing

P/N.

321-02001-228

Application

- Universal Type

- 1800~3000cc

Wheel spec

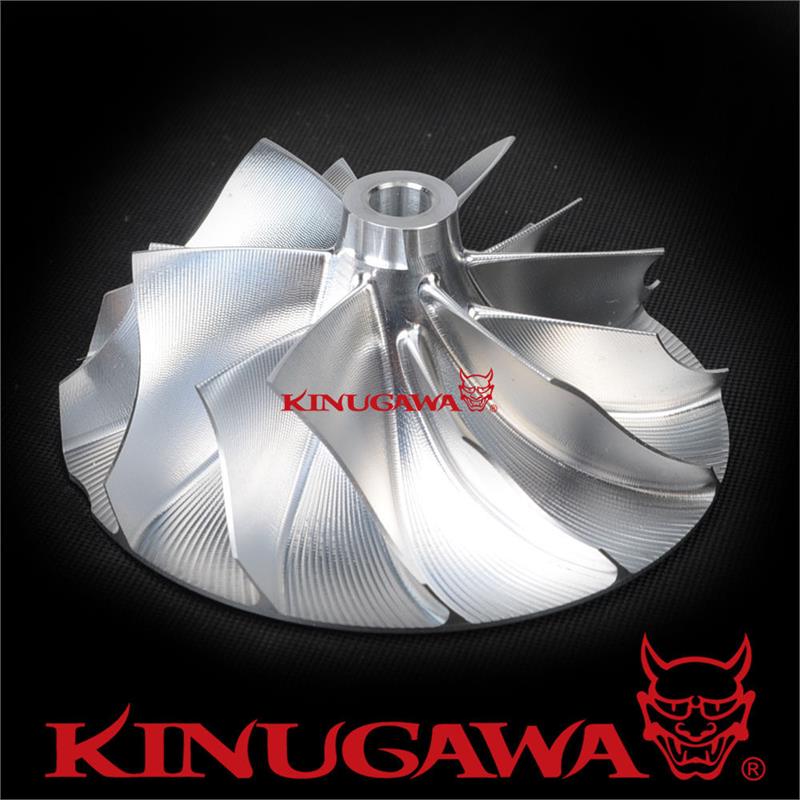

- Compressor wheel: 52.5/68 mm (20G Wheel)

- Turbine wheel: 54.1/61 mm (TD06SL2 / 11 Blades Inconel Wheel)

Turbine Housing

AR

- 8cm / T25 Flanged / V-Band Turbine Housing

Bearing Type

- Journal Bearing

- KAMAK Performance Thrust Bearing Kit

Cooling Type

- Oil-Cooled

Max Hp

- 350~500 BHP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

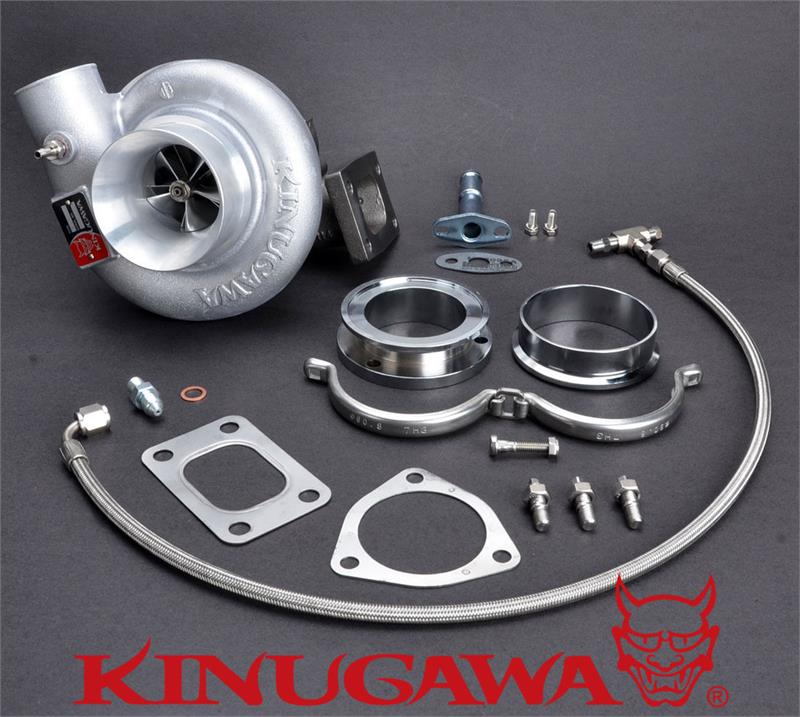

Kit Includes

1 x Oil feed line kit ( 70cm Braided Line )

1 x Oil Return Pipe Kit

1 x Turbine Gasket Inlet Gasket

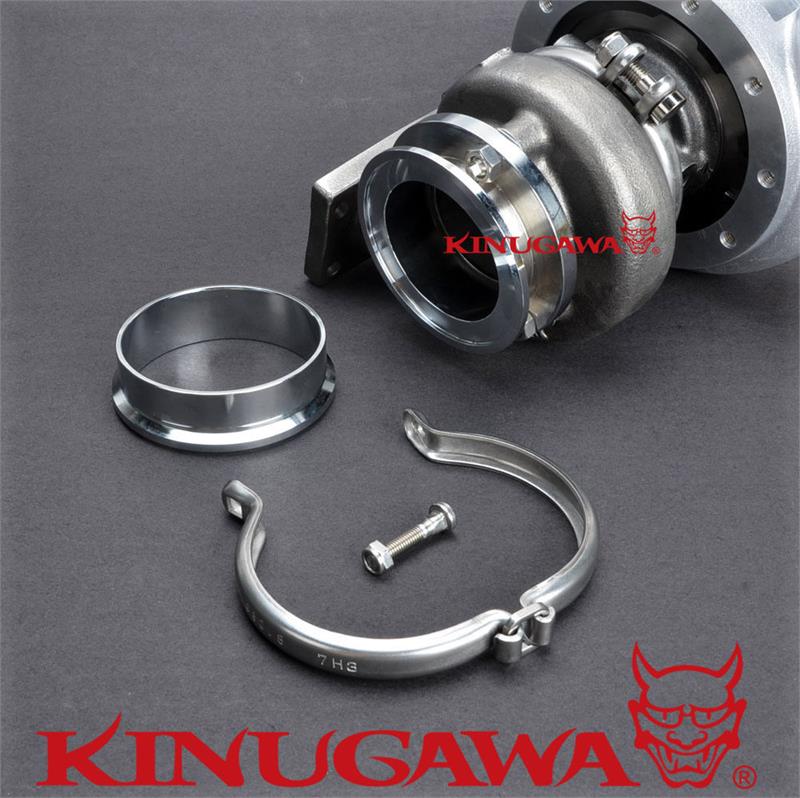

1 x Turbine V-Band Adapter V-band Pipe Kit

Made By

Kinugawa Turbo

Warranty

One Year
