Kinugawa Billet Turbocharger 3" Non Anti-Surge TD06SL2-20G 8cm /T3 Oil-Cooled

Kinugawa TD06SL2-20G Turbocharger w/ Billet Wheel

(3” Cover Non Anti-Surge / 8cm T3 Turbine Housing / Oil-Cooled)

Item Name

Kinugawa TD06SL2-20G Oil-Cooled Turbocharger with 3” NonAnti-Surge Cover, Billet Wheel and 8cm / T3 Turbine Housing

P/N.

  321-02001-209

Application

-  Universal Type

-  1800~3000cc

Wheel spec

-  Compressor wheel: 52.5/68 mm (20G Billet Wheel)

-  Turbine wheel: 54.1/61 mm (TD06SL2 / 11 Blades Inconel Wheel)

Turbine Housing

AR

-  8cm / T3 Flanged / V-Band Turbine Housing

Bearing Type

-  Journal Bearing

-  KAMAK Performance Thrust Bearing Kit

Cooling Type

-  Oil-Cooled

Max Hp

-   350~500 BHP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

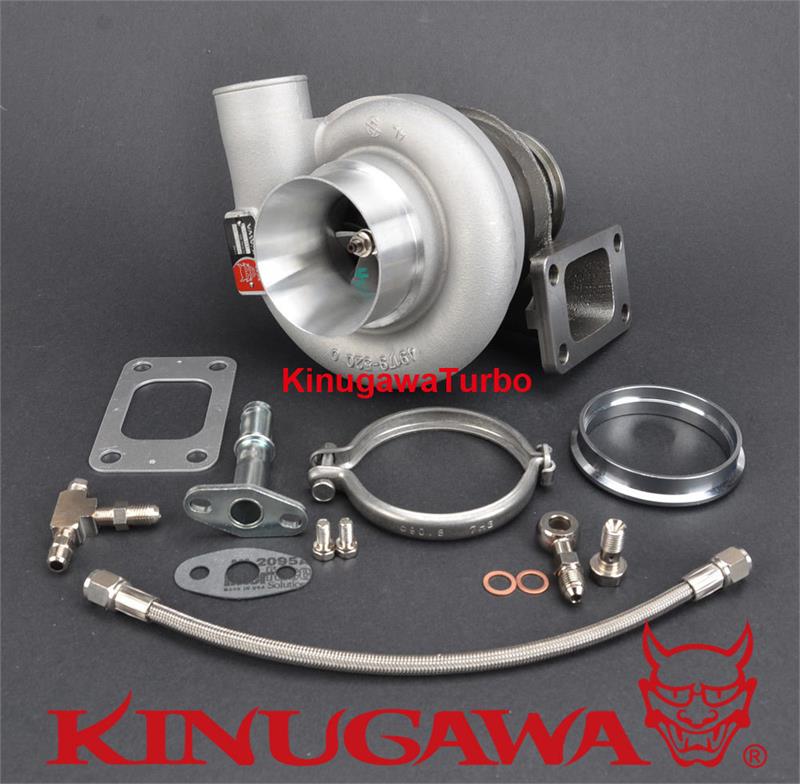

Kit Includes

1 x Oil feed line kit ( 70cm Braided Line )

1 x Oil Return Pipe Kit

1 x Turbine Gasket Inlet Gasket

1 x Turbine V-Band Adapter V-band Pipe Kit

Made By

Kinugawa Turbo, Japan

Warranty

One Year
