Kinugawa Billet Turbocharger 3" RB25DET TD06H & Garrett 60-1/ 12cm T3 Hsg 500PS
|
* Whole number only
|
|
|
Kinugawa 3 Inch Nissan RB25DET SKYLINE TD06H turbo with Garrett 60-1 Compressor Wheel & Oil and Water Cooled CHRA
|
|
PART NO.
|
|
|
Item Name
|

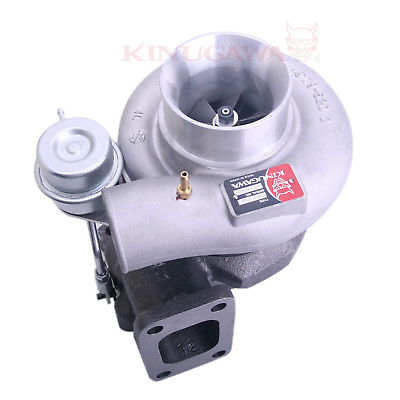

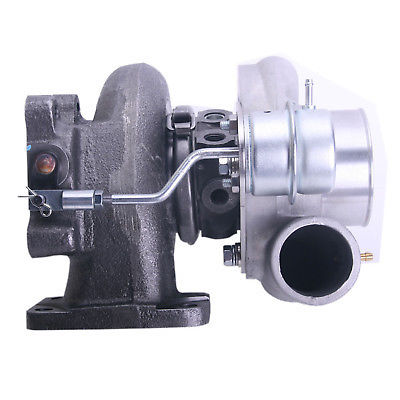

Kinugawa 3” Nissan RB25DET TD06H oil and water-cooled Turbocharger with Garrett 60-1 Compressor Wheel and 12cm T3 Turbine Housing
|
|
Product
Situation
|
- Brand New
- This turbo is upgraded and modified from Genuine Mitsubishi TD06H turbocharger.
|
|
Application
|
Nissan Skyline RB25DET
|
|
Application
|
2.2L ~ 3L / 400 ~ 480 HP
|
|
CHRA
|

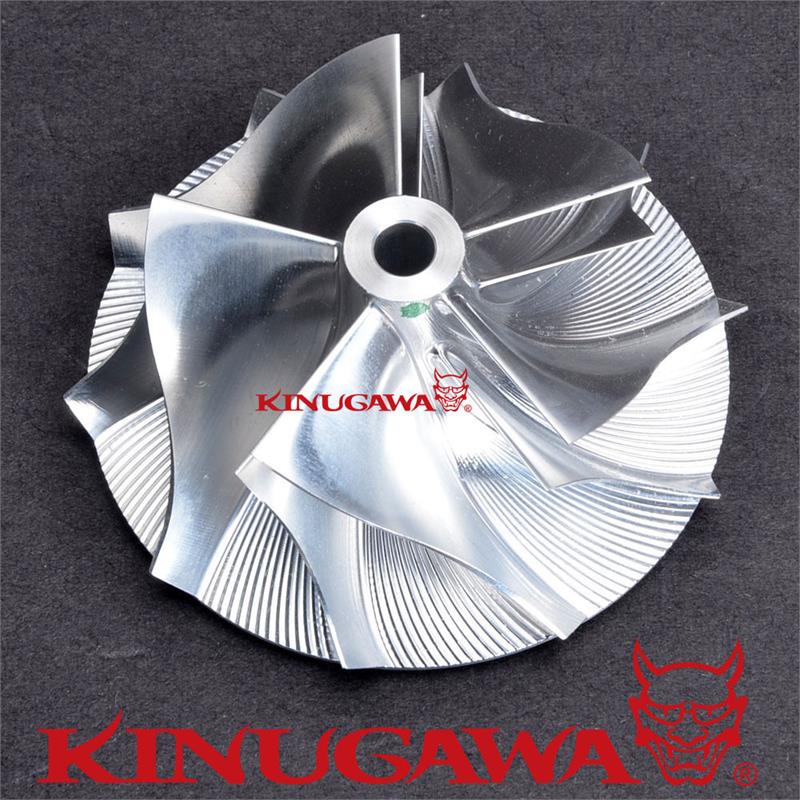

TD06H turbine wheel with Garrett 60-1 Compressor wheel
- Compressor Wheel : 59/76mm
- Turbine Wheel: 58.8/67.2mm
|
|
Compressor
Housing
|
3” Compressor Inlet / A/R 60
|
|
Turbine Housing
|
Mitsubishi 12cm^2 Turbine Housing (A/R .89) with T3 Flange
|
|
Bearing system
|
Journal Bearing
|
|
Cooling System
|
Oil and Water Cooled system
|
|
Actuator
|
- 1.2 Bar actuator will go with this turbo.
- 0.8 bar, 1.0 bar, 1.2 bar and 1.5 bar actuator is available for free to change, please contact us if you need different boost setting.
|
|
Made By
|
Kinugawa Turbo
|
|
Warranty
|
One Year
|
|
|
|
|
