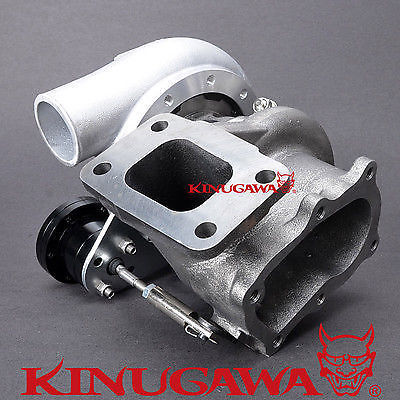

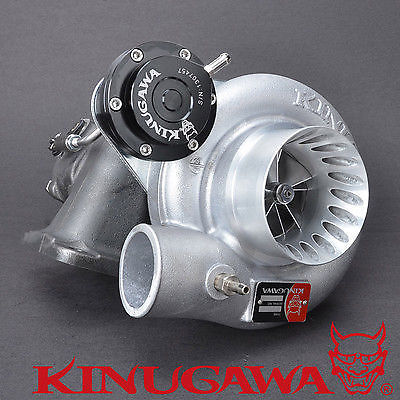

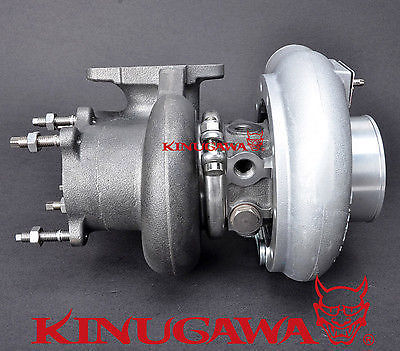

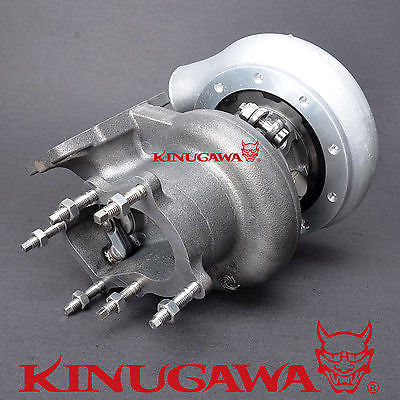

Kinugawa Billet Turbocharger 3" RB25DET TD06SL2 60-1 T3 10cm + 9 Blade Turbine

Product Information

Item Name

Kinugawa Bolt-On 3” Anti Surge TD06SL2 RB20DET RB25DET Turbocharger with Garrett 60-1 Billet Compressor wheel, 9 Blade Turbine Wheel and 10cm Turbine Housing

P/N.

 331-02035-046

Application

-       Nissan RB20DET / RB25DET Skyline

-       Universal application: 2000~3500cc

CHRA Size:

-       9 Blade TD06SL2 STS Satosi Special Turbine Wheel + Garrett 60-1 Billet Compressor Wheel

Wheel spec

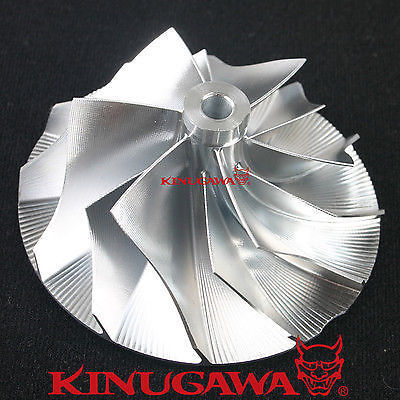

-       Compressor wheel: 60/76 mm (Garrett 60-1 Billet Wheel)

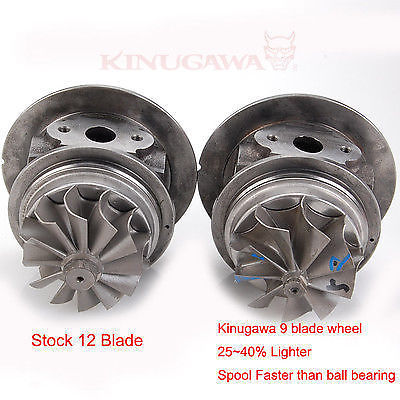

-       Turbine wheel: 54.1 / 61 mm (TD06SL2 / 9 blade Satosi Special STS High Flow Wheel )

Compressor

Housing

-       A/R 60

-       Compressor Inlet : 80.5 mm / 3.25”

-       Compressor Outlet : 51mm / 2”

Turbine

Housing

-       10cm (A/R .73)

-       T3 Inlet Flange

-       Internal Gate

-       Bolt on to fit stock exhaust manifold and dump pipe.

Bearing

Type

-       Journal Bearing

-       KAMAK Performance Thrust Bearing Kit

Cooling

Type

-       Oil and water-Cooled

Actuator

Pressure

-       1.0 Bar / 15 psi

-       0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar, 1.7bar and 2.0bar springs are available on our ebay shop, we will combine shipping when we receive your order.

-       Actuator position can be 360 Deg moved easily.

Max Hp

300~450HP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

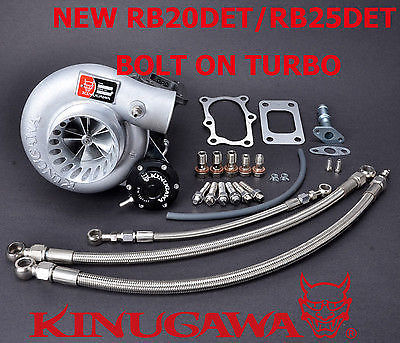

Kit Includes

1 x Oil feed line kit

1 x Oil drain pipe kit

2 x Coolant line Kit

2 x Turbine Gasket ( Inlet + Outlet )

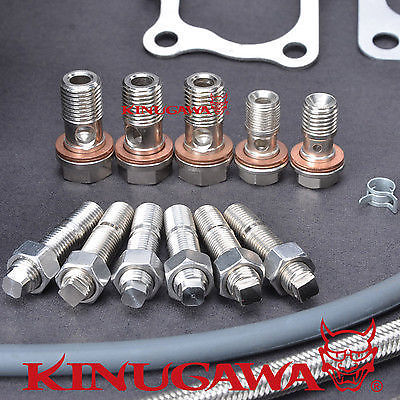

6 x Stud Kit

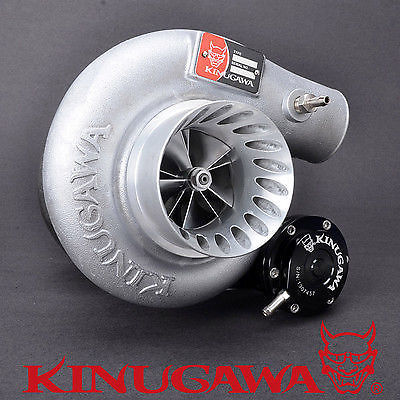

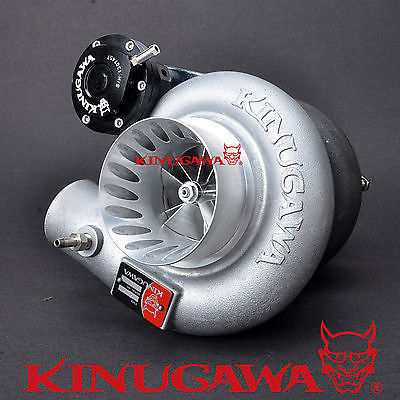

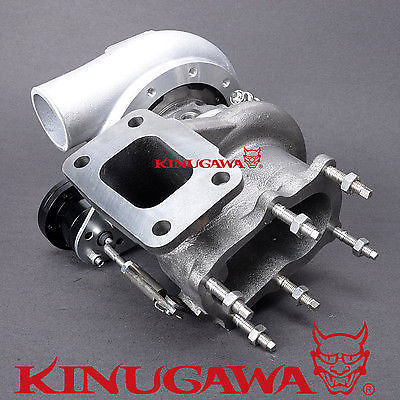

(Everything shown on picture is included)

Made By

Kinugawa Turbo

Warranty

One Year
