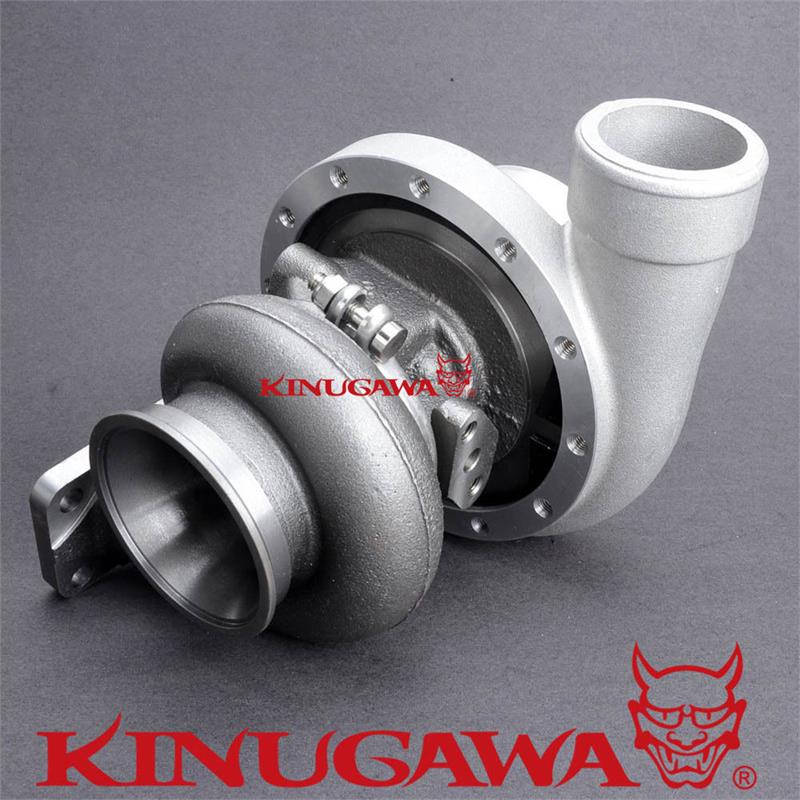

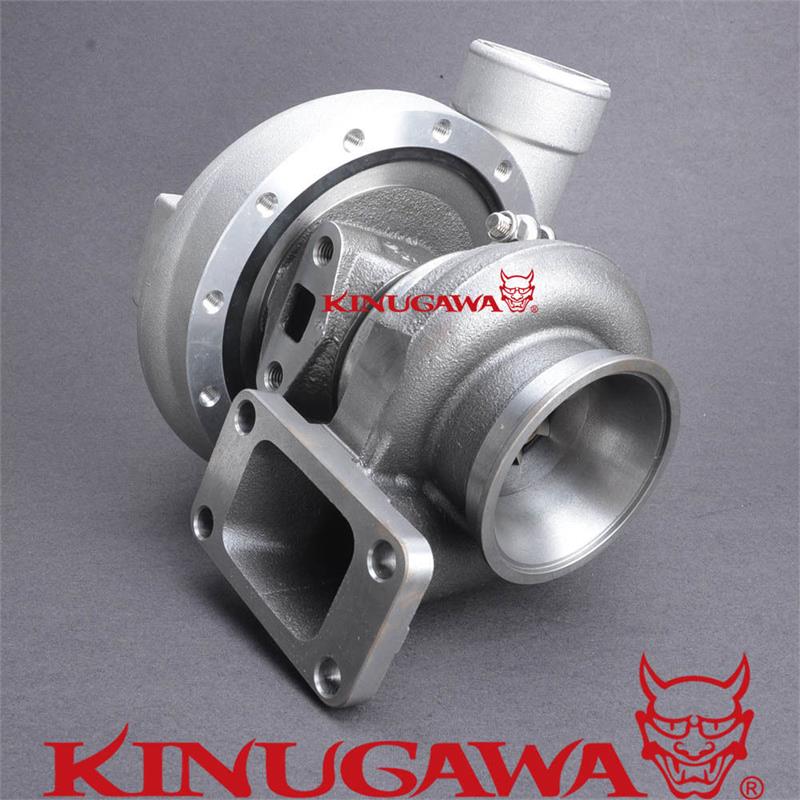

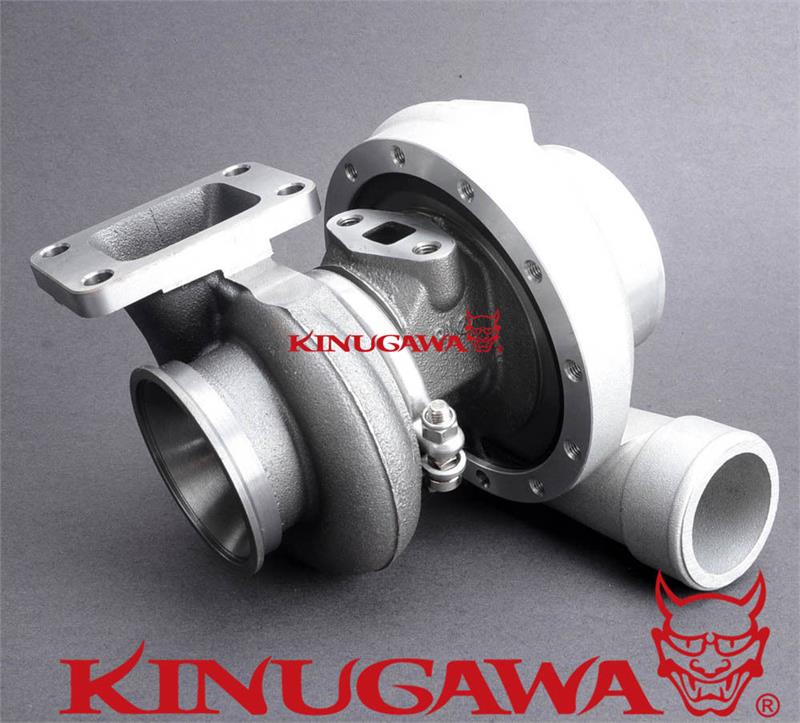

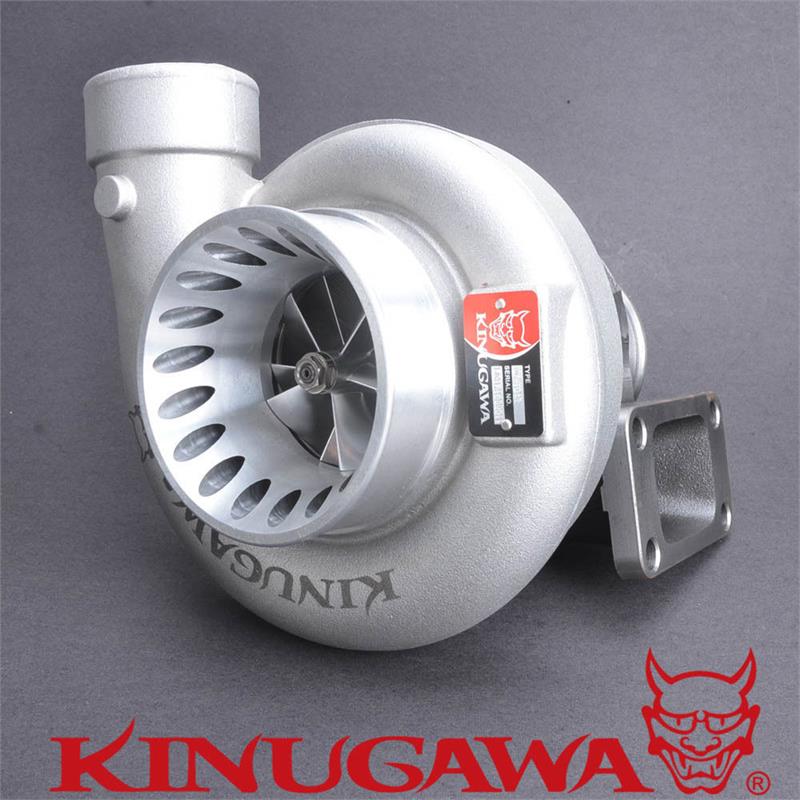

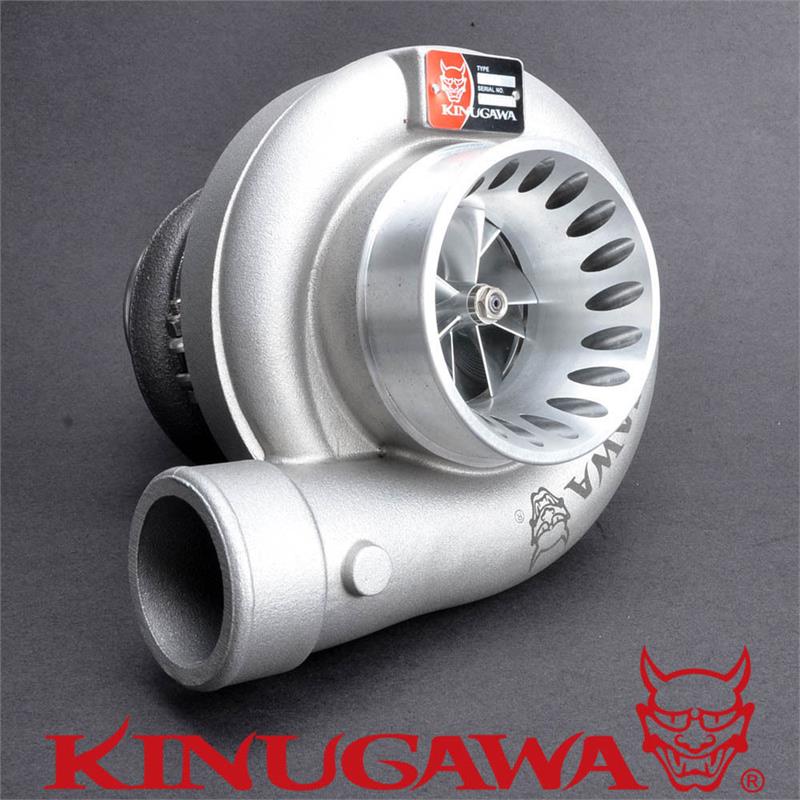

Kinugawa Billet Turbocharger 4" Anti-Surge T67-25G T3 8cm V-Band Housing

Product Information

P/N.

321-02001-219

Item Name

KINUGAWA T67-25G-8 Turbocharger with 4” Anti-Surge Cover, Billet Compressor Wheel , T3 / 10cm / V-Band External Gate Turbine Housing

Application

2.5L~4L

Max HP

350~550P

CHRA Size:

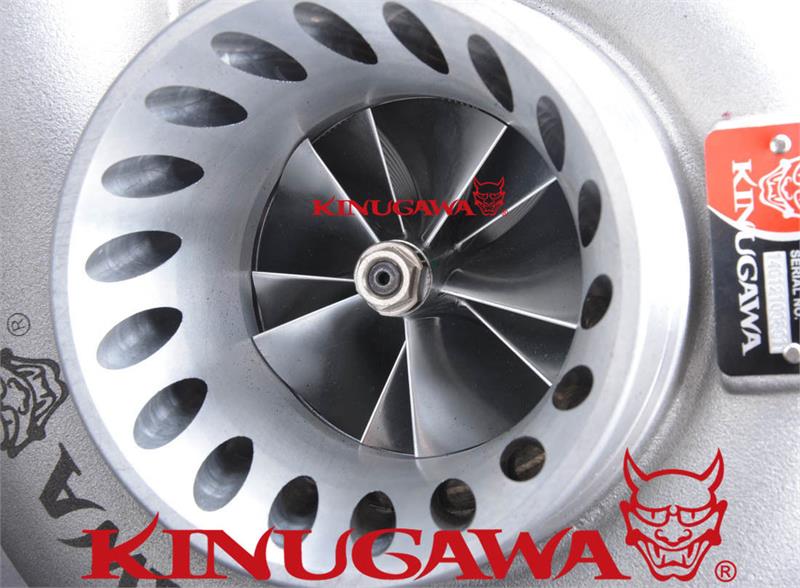

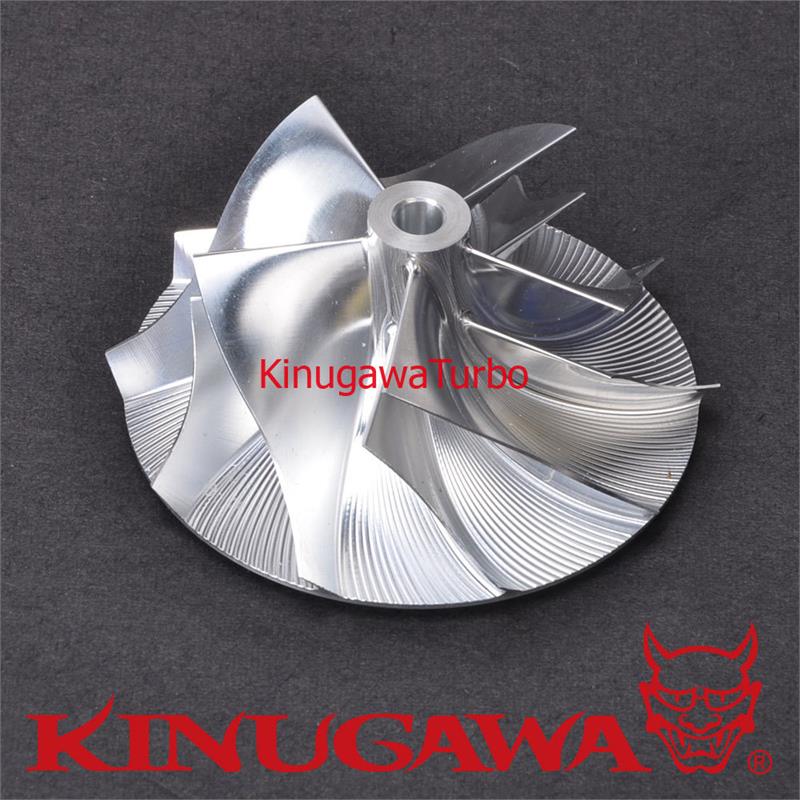

Comp. Whee: 60.2/78mm (Billet 25G)

Turbine Wheel: 54 / 61 mm (11 Blades)

A / R

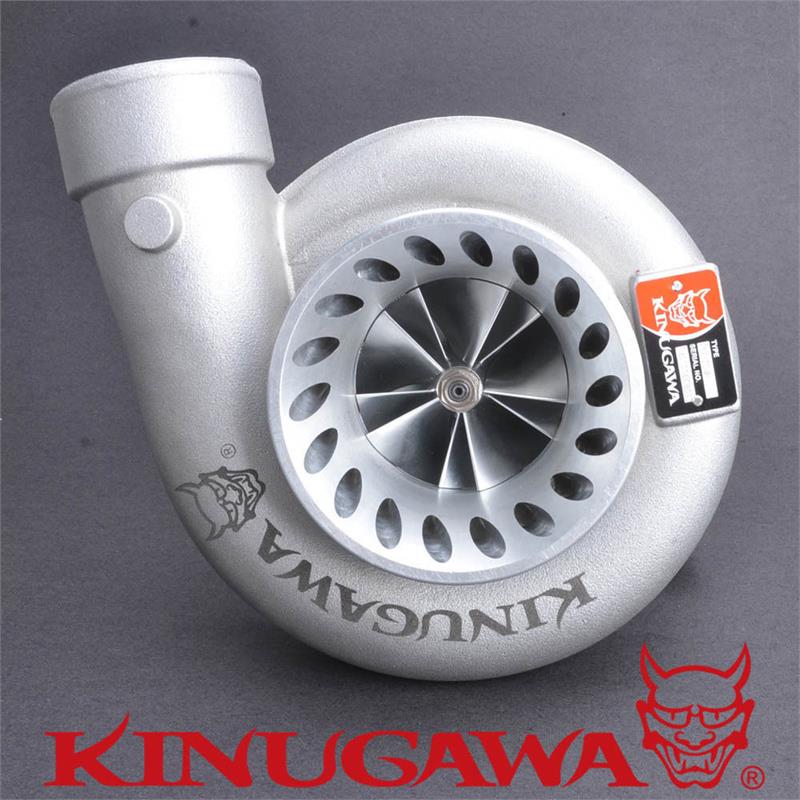

- Compressor housing: AR70

- Turbine Housing: AR .64 (8cm^2)

Bearing

Type

Journal Bearing

Cooling Type

Oil-Cooled

Turbine

Flange

STD T3

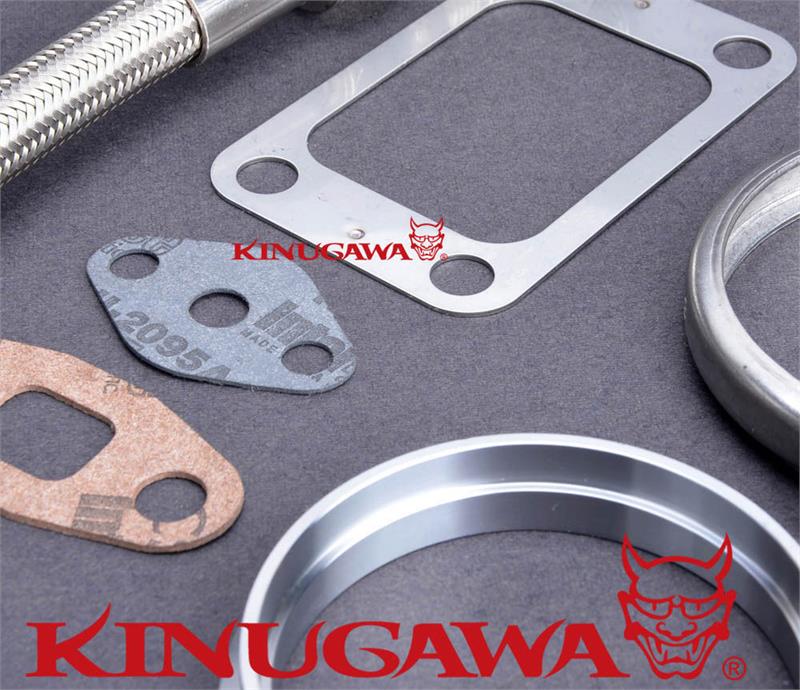

Kit Includes

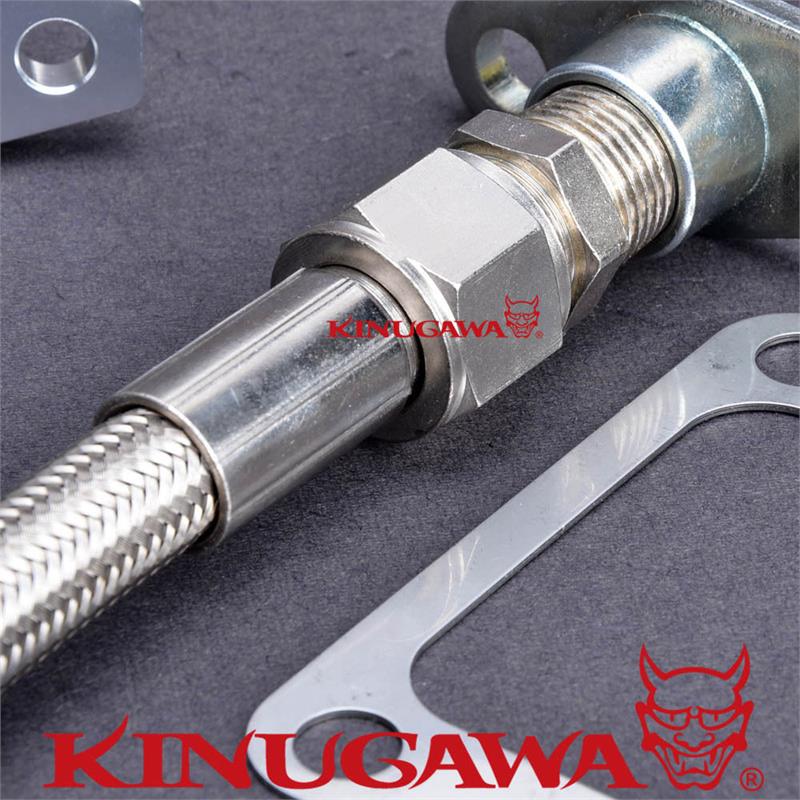

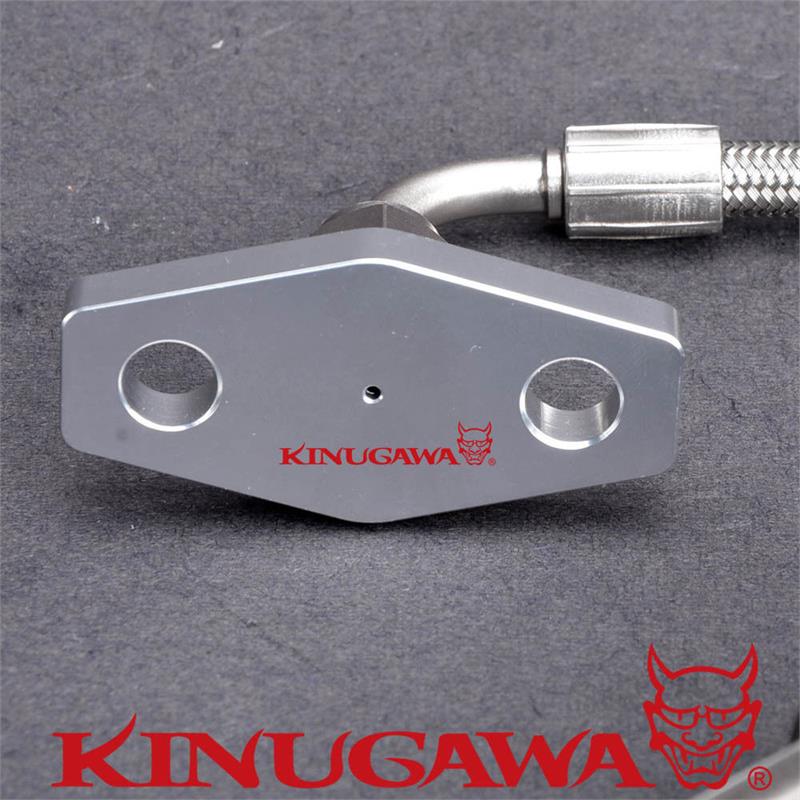

1 x Oil feed flange kit

1 x Oil drain flange kit

2 x Turbine Housing Gasket

1 x V-Band Flange Kit

Other fitting as shown on shop.

Made By

Kinugawa Turbo

Warranty

One Year
