Kinugawa Billet Turbocharger 4" AR70 SUBARU WRX STI T67-25G 8cm

Product Info

Item  Name

Kinugawa Billet Turbocharger 4" AR70 SUBARU WRX STI T67-25G 8cm

Item No.

Application

- EJ20 EJ25 SUBARU IMPREZA GC8 /GDA / GDB

  Single Scroll Turbo.

- EJ20 & EJ25 engine.

- bolt on stock exhaust manifold and dumppipe.

   compressor inlet and outlet pipe need modified

Wheel Spec.

- chra size : T67-25G

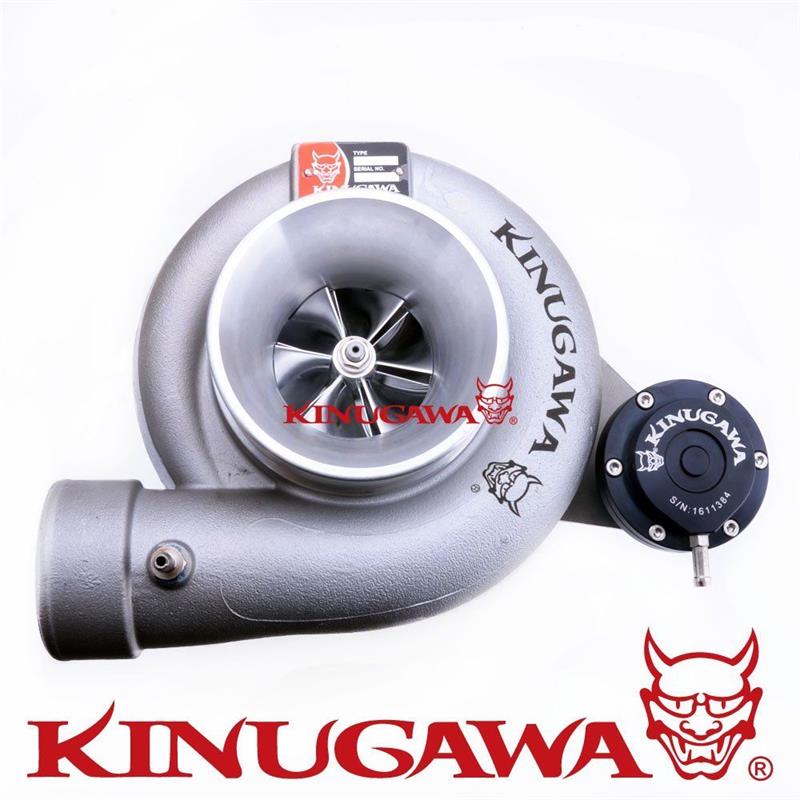

- compressor wheel : 60.2 / 78.0mm

  (billet 6+6 blades / max boost to 5.0 bar)

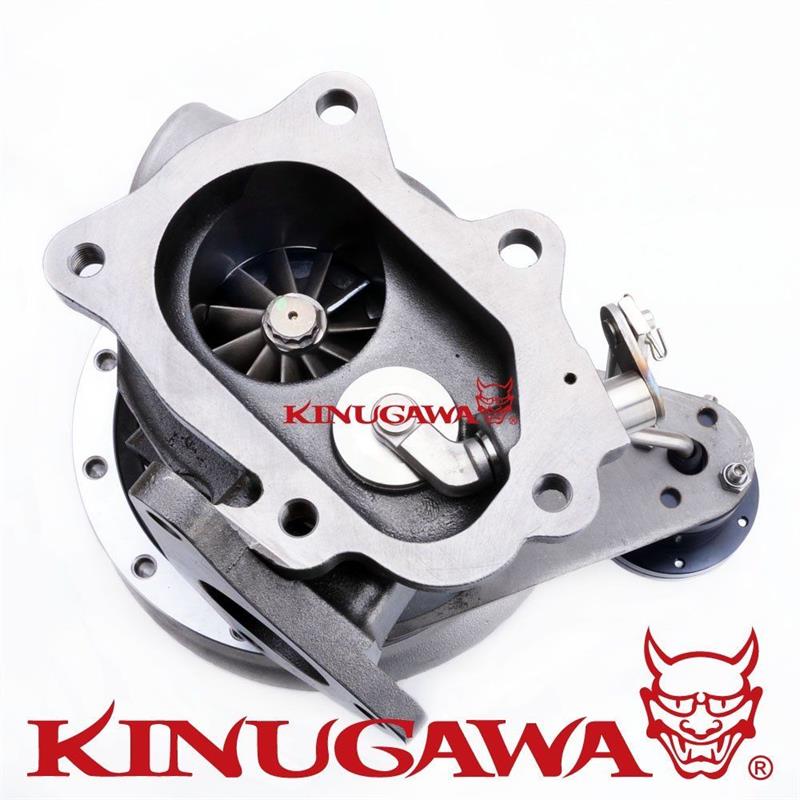

- turbine wheel : 61 / 54.1 mm, 11 blades

Compressor Housing

Turbine  Housing

- inlet : 4" NON anti surge

- outlet : 2.5"

- a/r : 8cm / .57

- subaru single scroll turbine standard flange type

Bearing  System

- Journal Bearing

Cooling  System

- Oil Cooled Only

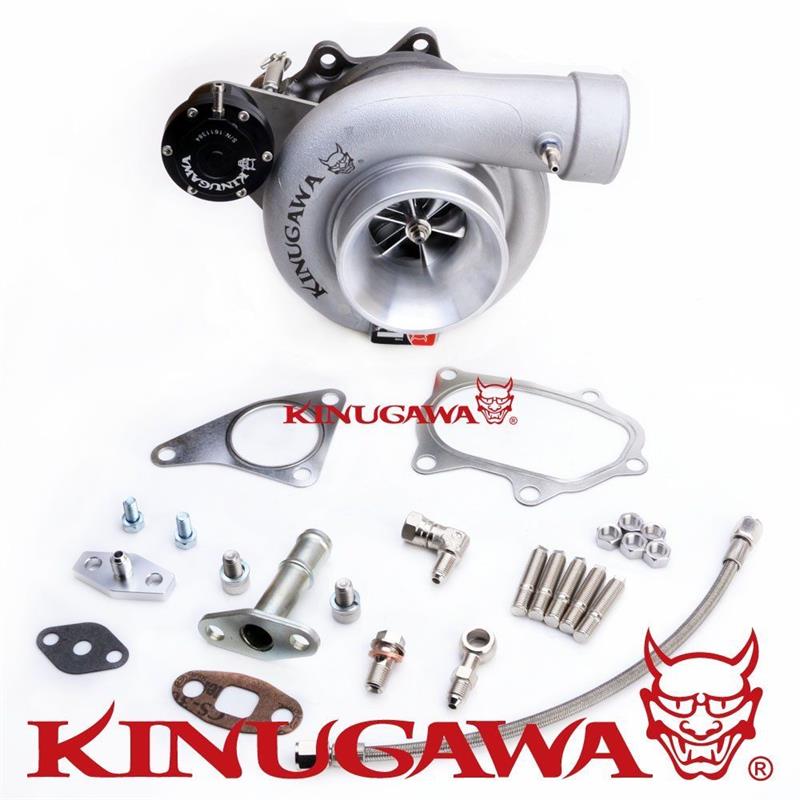

Kit includes

- 1 x oil feed line kit

- 1 x oil return pipe kit

- 1 x turbine inlet and outlet gasket set

- 5 x stud and nut set

- 1 x turbo boost gauge(bar)- free gift

(Everything shown on the 1st picture is included)

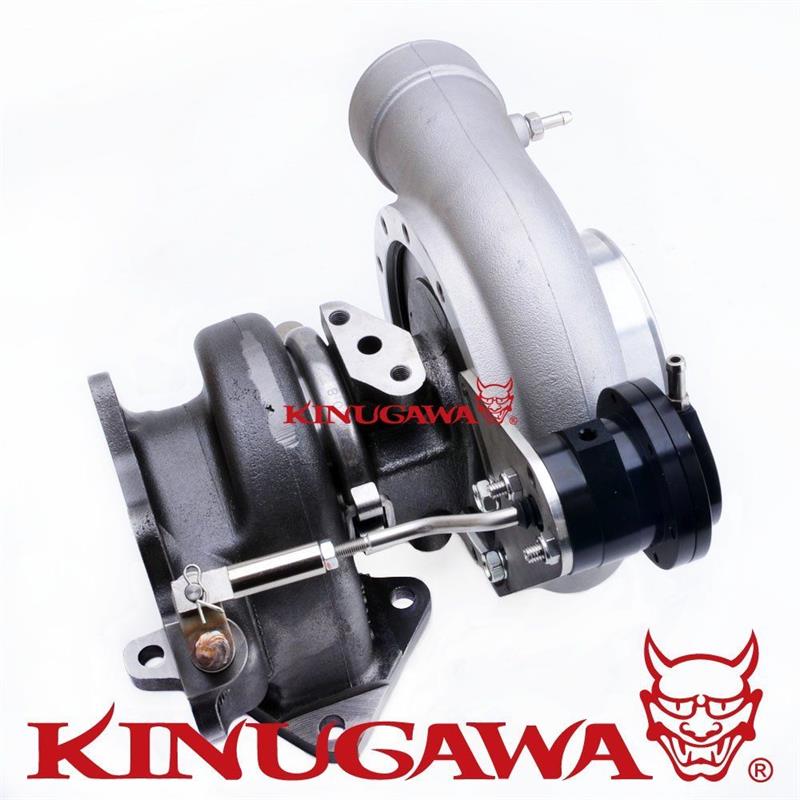

- 1.0 bar spring will be pre-installed on this adjustable actuator.

- 0.5bar, 0.8bar, 1.0bar, 1.2bar, 1.5bar, 1.8bar and 2.0bar springs are available on our shop

Made by

Notes

Kinugawa Turbo

ONE YEAR WARRANTY
