Kinugawa Billet Turbocharger 4" T67 w/ Garrett T04R wheel T3 V-Band 10cm 600HP

 Product Information

Item Name

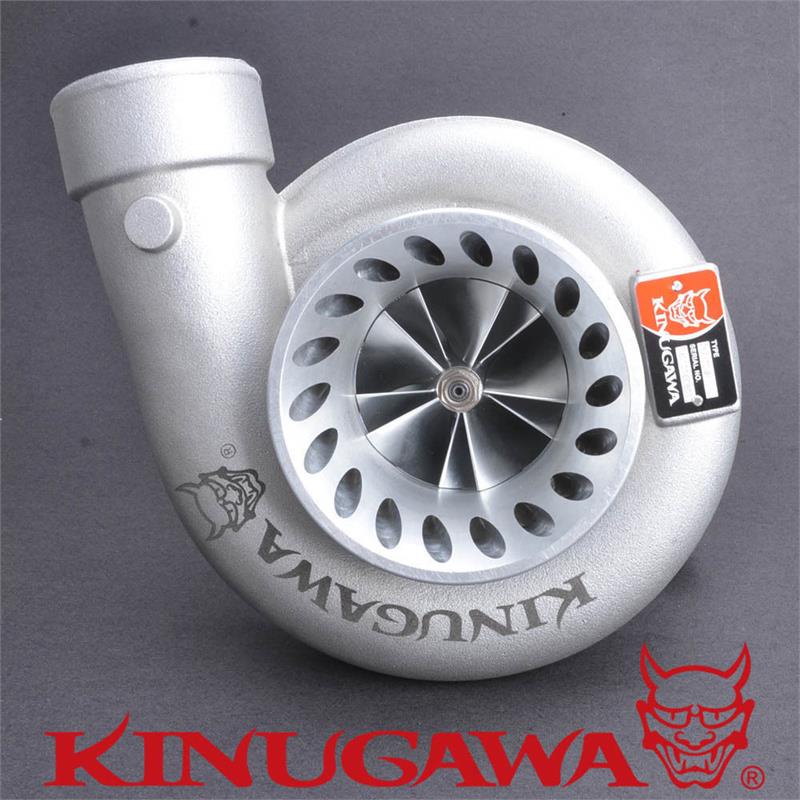

Kinugawa T67 Turbocharger with Garrett T04R Billet compressor wheel, 4” Anti Surge Cover and T3 / 10cm / V-Band Turbine Housing

P/N.

 321-02001-225

Application

-   Universal Type

-   2500~4000cc

Wheel spec

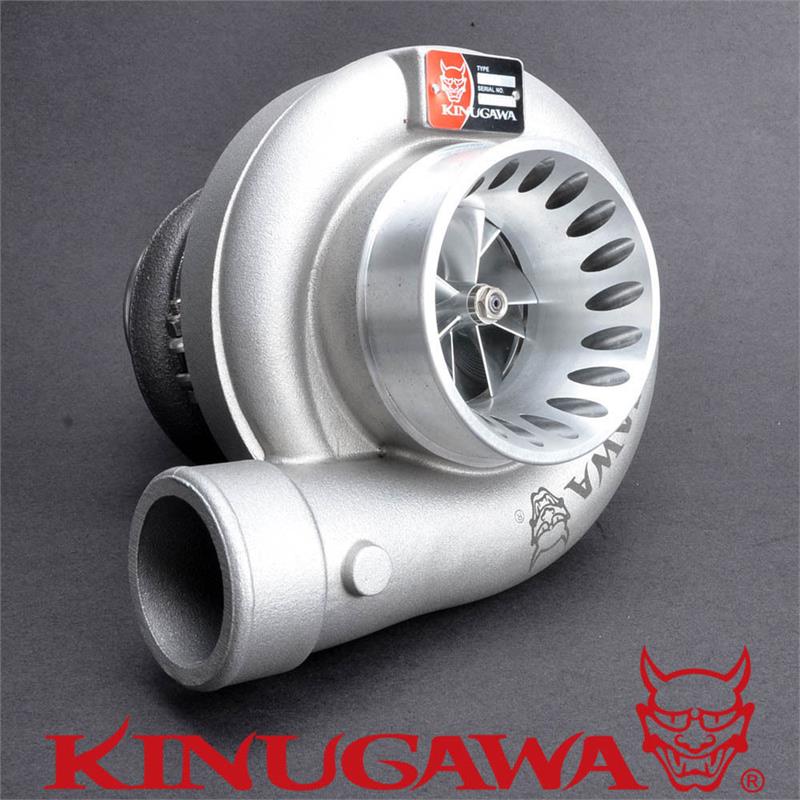

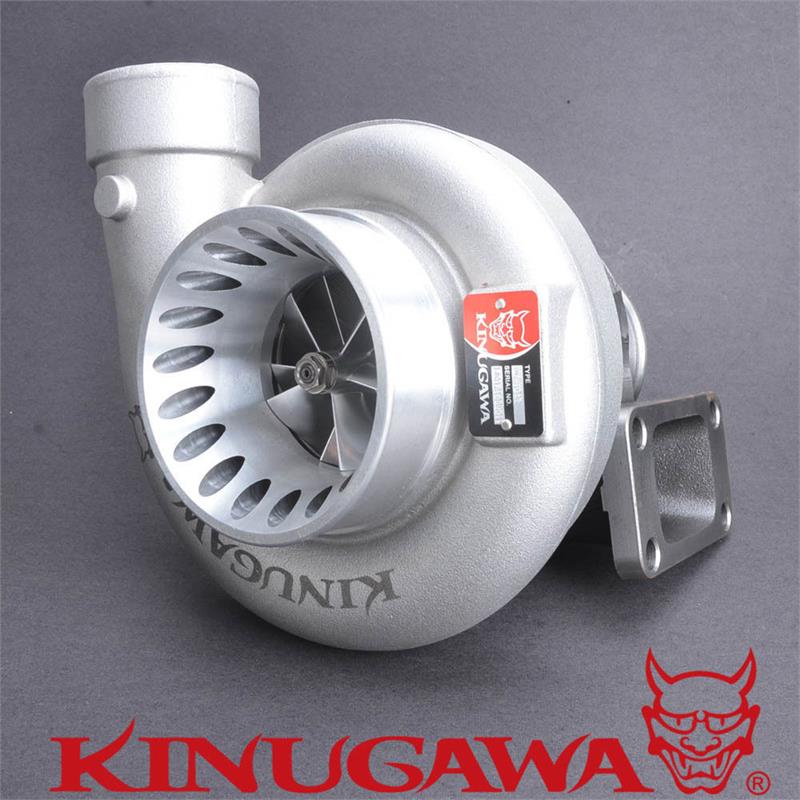

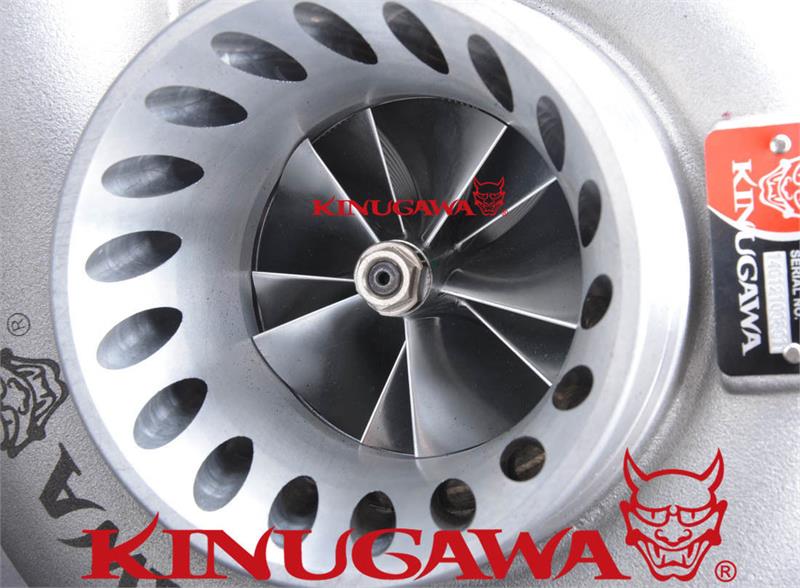

-   Compressor wheel: 66.5/84 mm (Garrett Billet T04R)

-   Turbine wheel: 54 / 61 mm (T67 / 11 Blades Inconel Wheel)

Compressor

 Housing

-  A/R .70

-  Inlet : 4”

-  Outlet: 2.5”

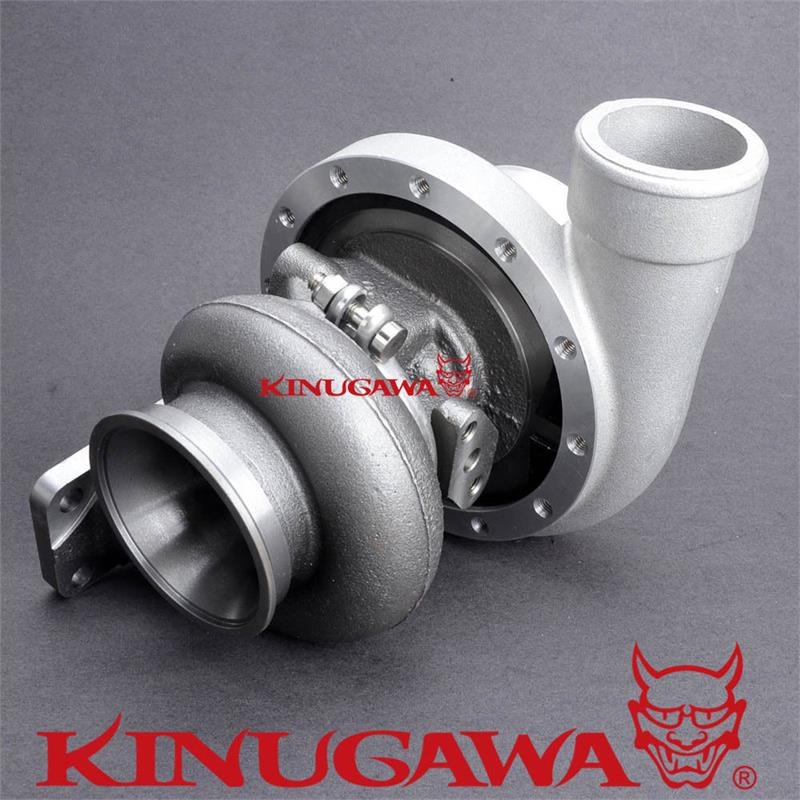

Turbine Housing

A/R

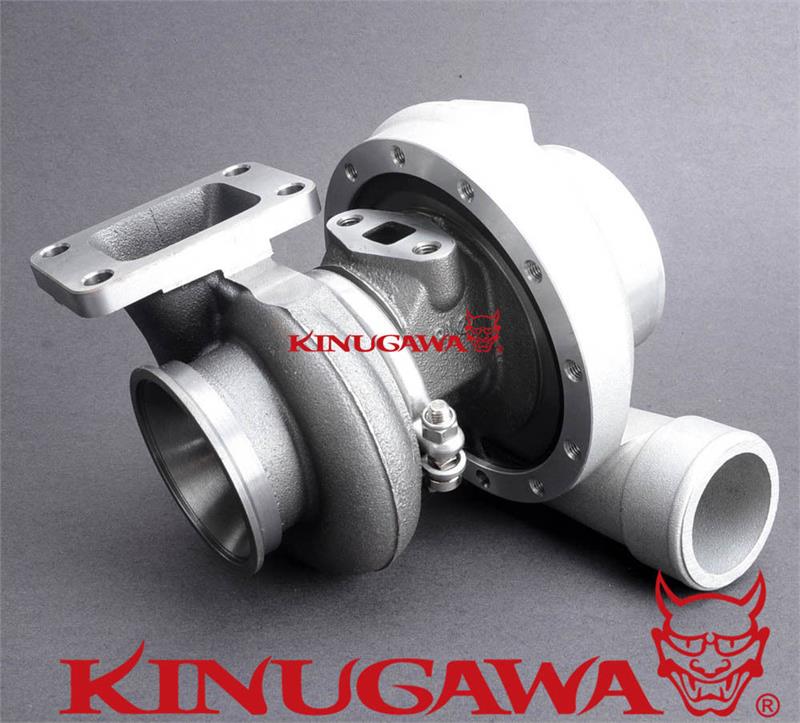

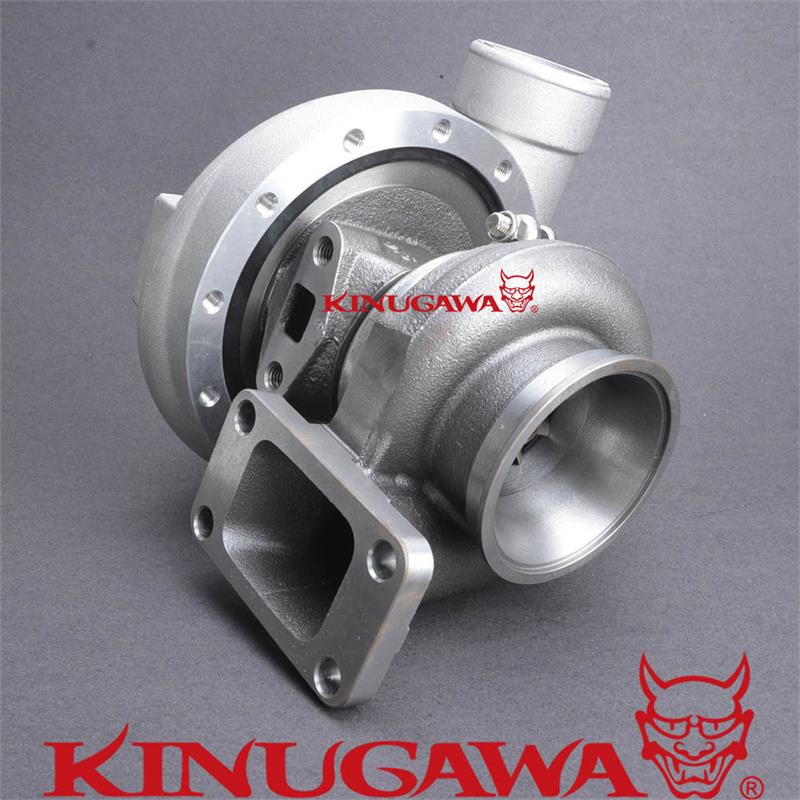

10cm / AR73 T3 Flanged V-Band turbine housing

Bearing Type

-   Journal Bearing

-   KAMAK Performance Thrust Bearing Kit

Cooling Type

-   Oil-Cooled

Max Hp

450~650 BHP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

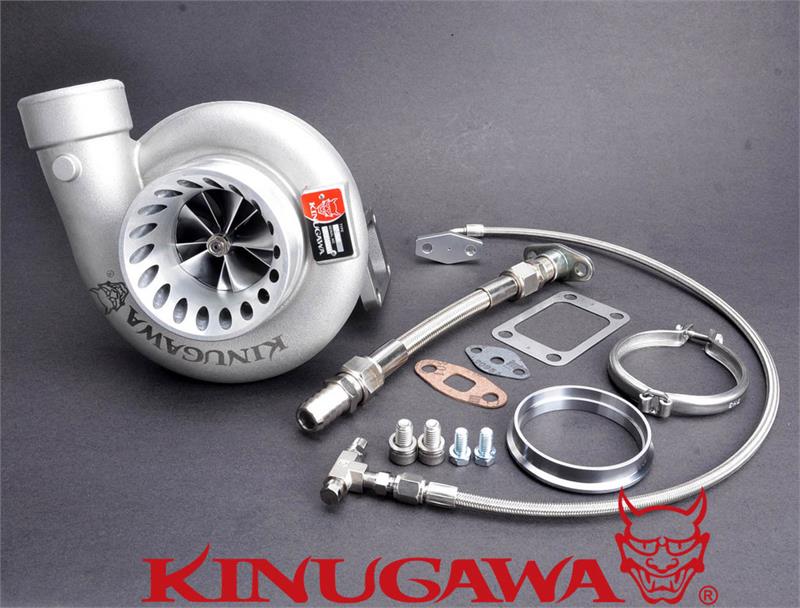

Kit Includes

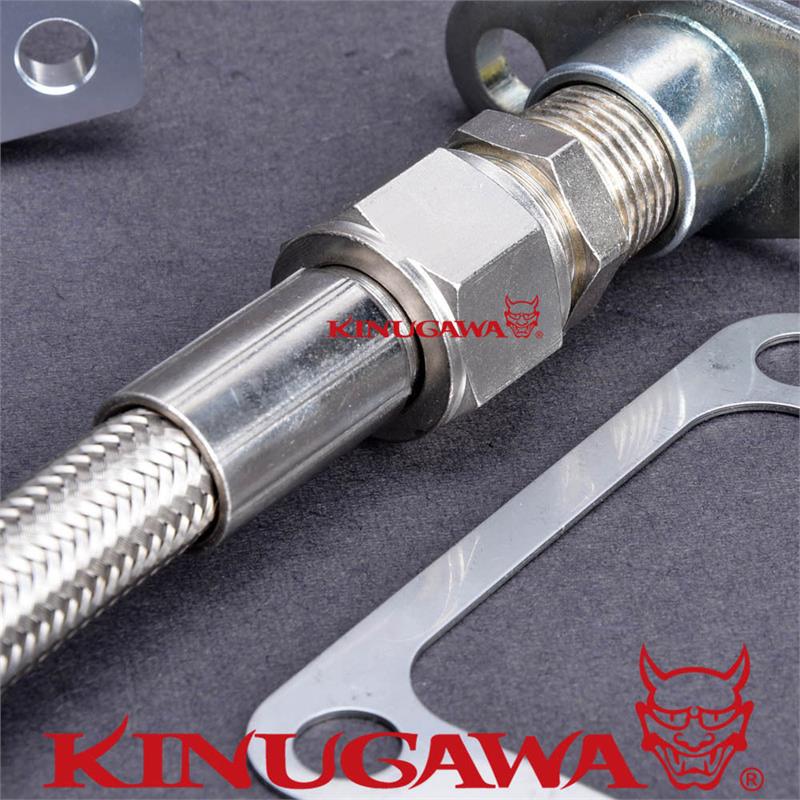

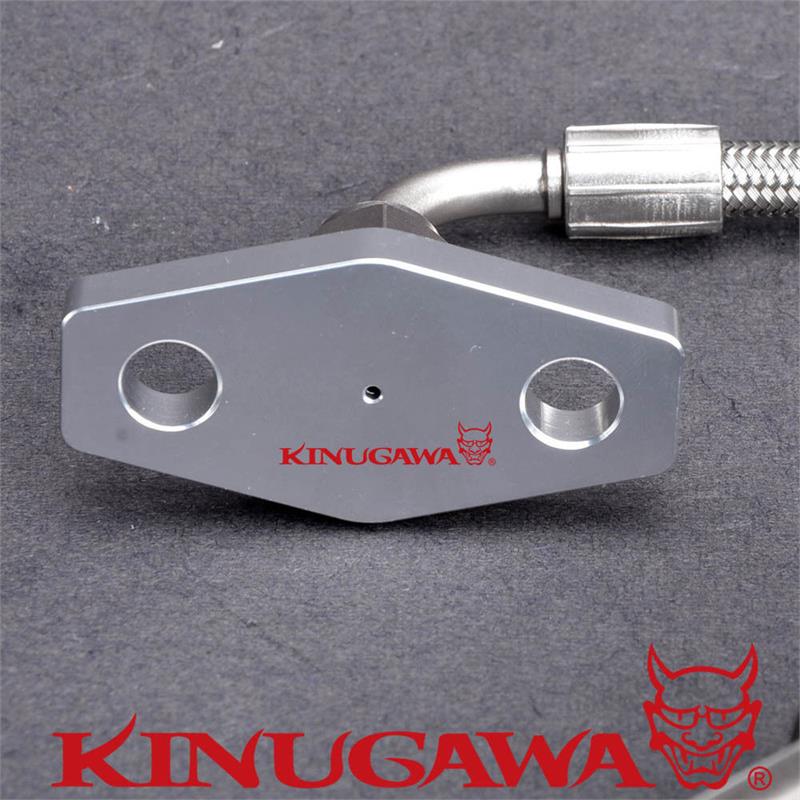

1 x Oil feed line kit ( 70cm Braided Line )

1 x Oil Return Pipe Kit

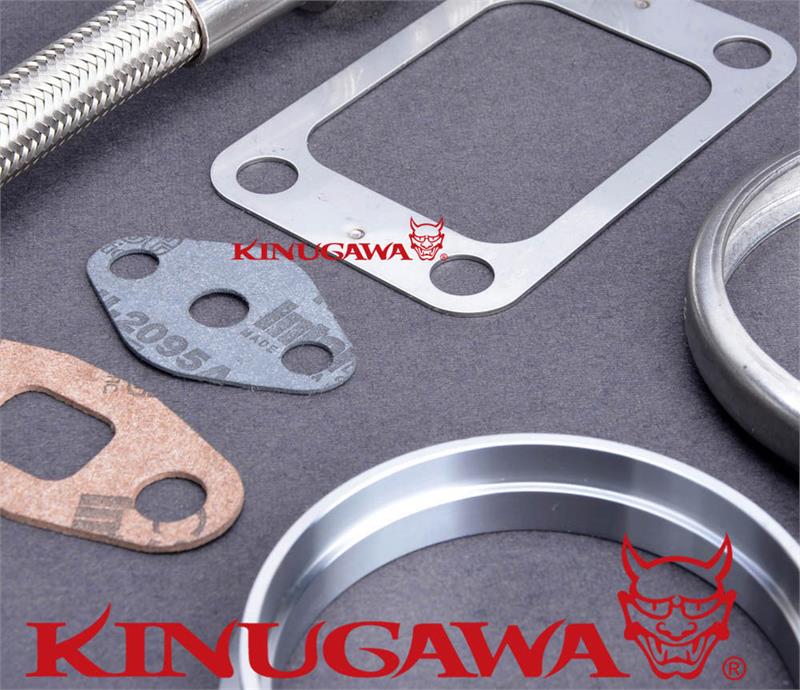

1 x T3 Turbine Gasket Inlet Gasket

1 x V-Band Pipe Adapter Kit

Made By

Kinugawa Turbo

Warranty

One Year
