Kinugawa Billet Turbocharger 4" T67 w/ Garrett T04R wheel T3 V-Band 8cm

Product Information

Item Name

Kinugawa Hybrid T67 Monster Turbocharger with Garrett T04R compressor wheel, 4” Anti Surge Cover and T3 / 10cm / V-Band Turbine Housing

P/N.

 321-02001-270

Application

-       Universal Type

-       2500~4000cc

Wheel spec

-       Compressor wheel: 66.5/84 mm (Billet Garrett T04R)

-       Turbine wheel: 54.1 / 61 mm (T67 / 11 Blades Inconel Wheel)

Compressor Housing

- A/R .70

Inlet : 4”

Outlet: 2.5”

Turbine Housing

AR

8cm / A/R .64 T3 Flanged V-Band turbine housing

Bearing Type

-       Journal Bearing

Cooling Type

-       Oil-Cooled

Max Hp

400~650 BHP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

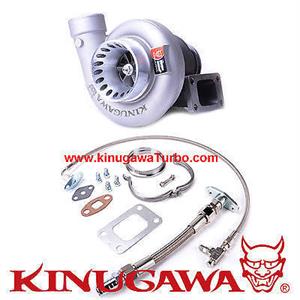

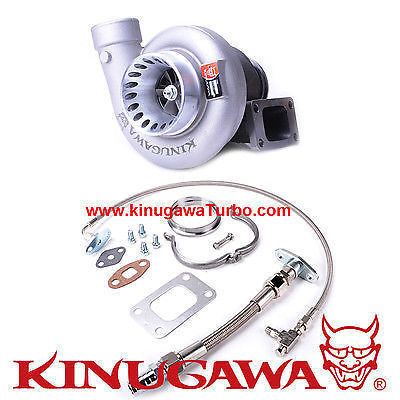

Kit Includes

1 x Oil feed line kit ( 70cm Braided Line )

1 x Oil Return Pipe Kit

1 x T3 Turbine Gasket Inlet Gasket

1 x V-Band Pipe Adapter Kit

Made By

Kinugawa Turbo

Warranty

One Year
