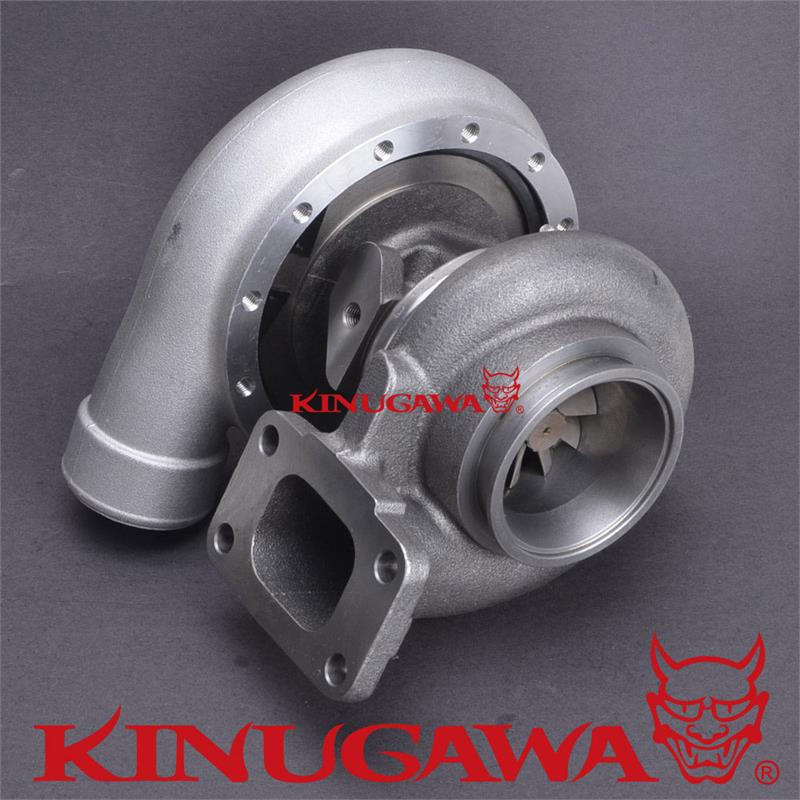

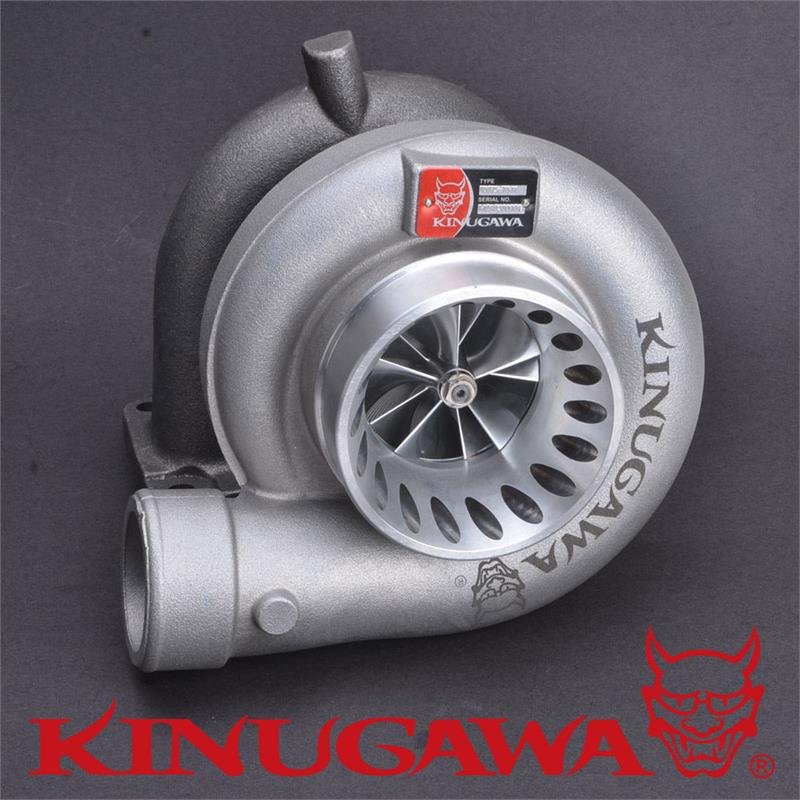

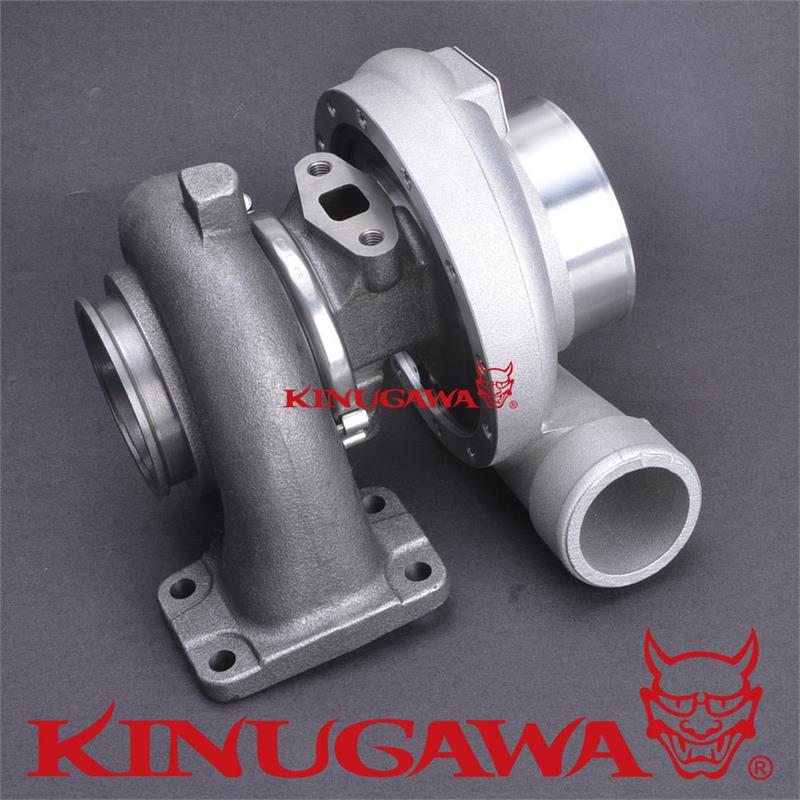

Kinugawa Billet Turbocharger 4" TD06H TE06H w/ Garrett T04R Wheel T3 12cm 650HP

 Product Information

Item Name

Kinugawa Hybrid TE06H Monster Turbocharger with Garrett T04R Billet Compressor wheel, 4” Anti Surge Cover and T3 / 12cm / V-Band Turbine Housing

P/N.

 321-02001-238

Application

-  Universal Type

-  2500~4000cc

Wheel spec

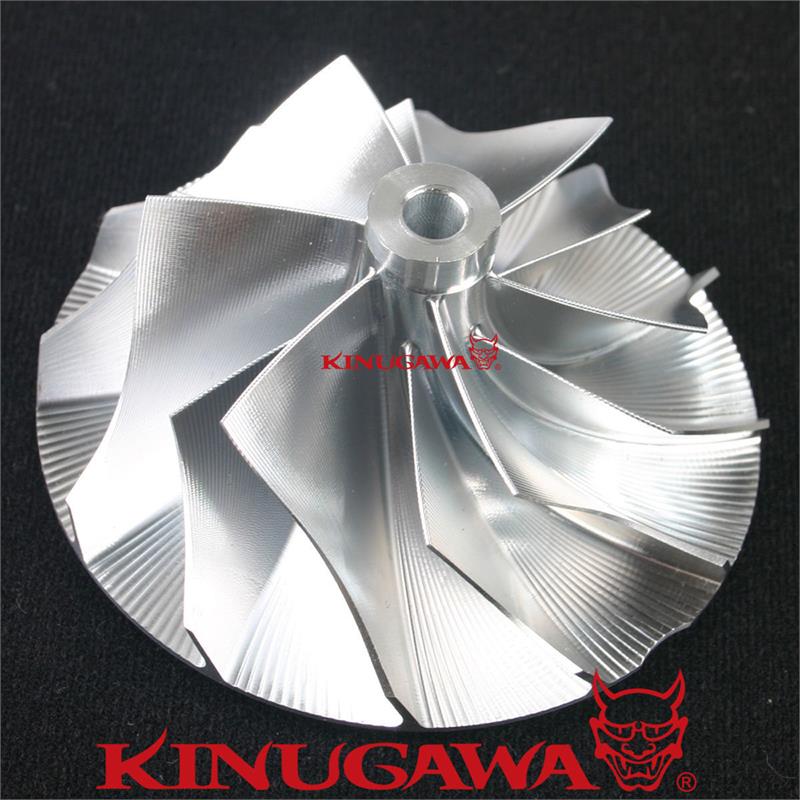

-  Compressor wheel: 66.5/84 mm (Billet Garrett T04R)

-  Turbine wheel: 58.8 / 67 mm (TE06H / 12 Blades Inconel Wheel)

Compressor

 Housing

- A/R .70

- Inlet : 4”

- Outlet: 2.5”

Turbine

Housing AR

12cm / AR.89 T3 Flanged V-Band turbine housing

Bearing Type

-  Journal Bearing

Cooling Type

-  Oil-Cooled

Max Hp

400~650 BHP

Turbo Boost

Limit

2.8 Bar (Based on Performance bearing kit with larger thrust bearing )

Suggested

Boost

1.5 bar / 22 Psi

Product

Situation

Brand New

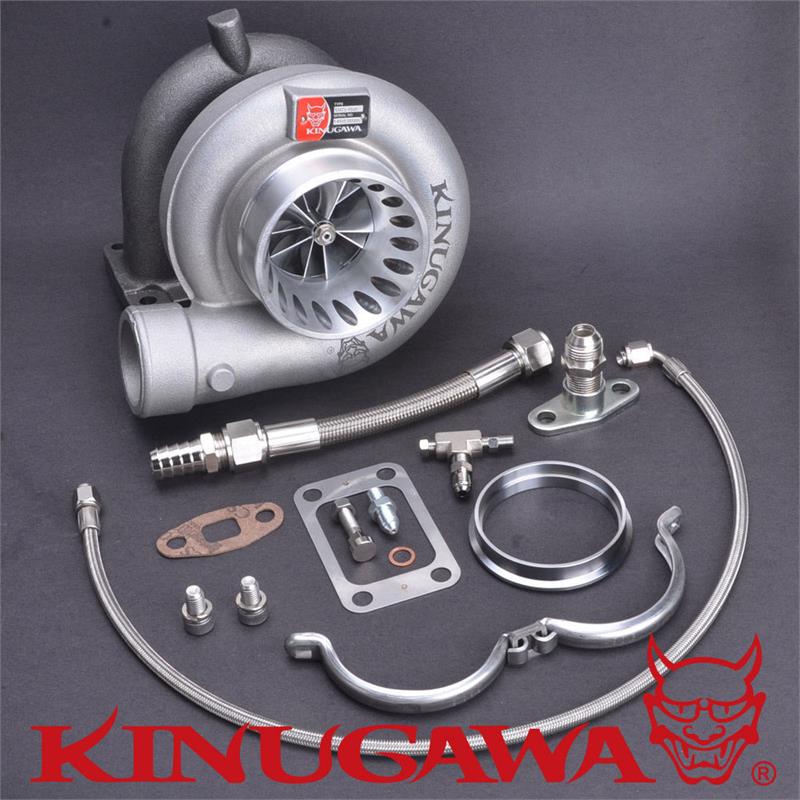

Kit Includes

1 x Oil feed line kit ( 70cm Braided Line )

1 x Oil Return Pipe Kit

1 x T3 Turbine Gasket Inlet Gasket

1 x V-Band Pipe Adapter Kit

Made By

Kinugawa Turbo

Warranty

One Year
